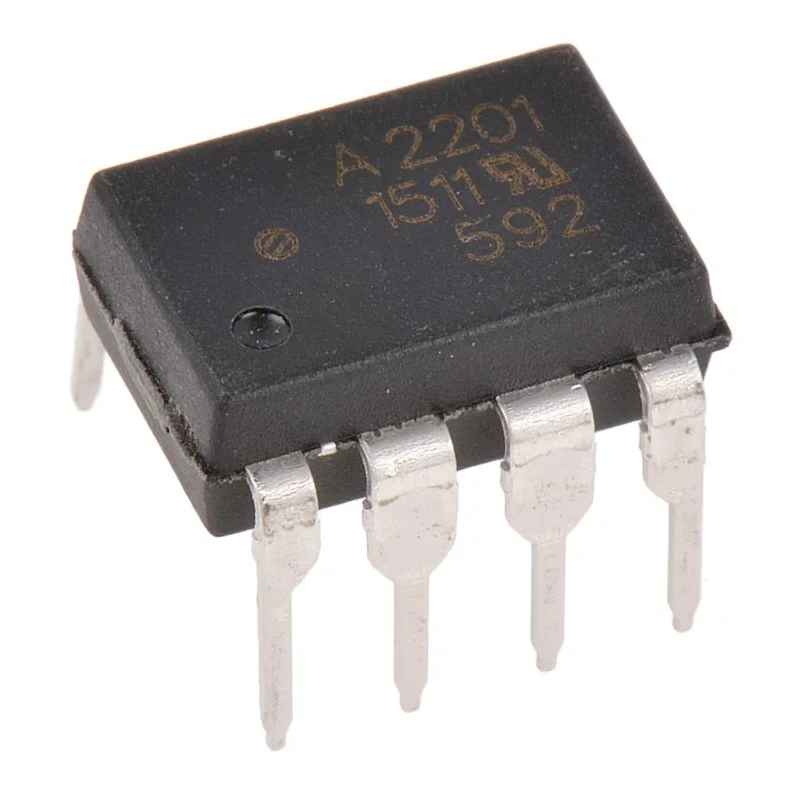

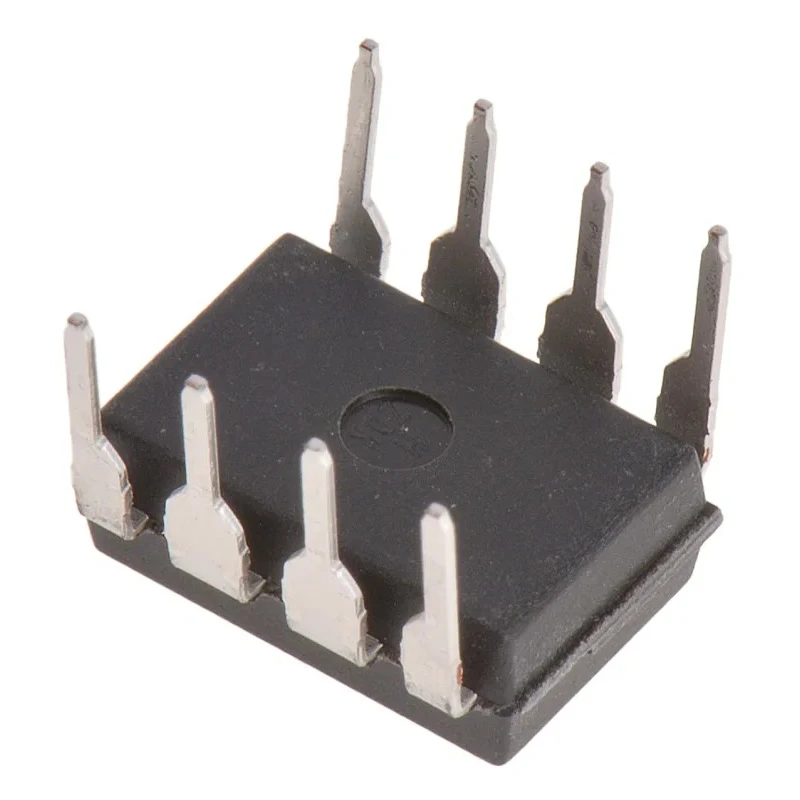

Broadcom Optocoupler Through Hole 8-Pin DIP, 1 Channel, Max Forward Voltage 1.85V HCPL-2201-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2201-000E |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, CSA, UL1577 |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 8 |
| Typical Rise Time | 30ns |
| Typical Fall Time | 7ns |
| Broadcom HCPL-0201-000E DC Input Optocoupler, Surface, 8-Pin SOICBrand | Broadcom |
| Broadcom HCNW2211-000E DC Input Optocoupler, Through Hole, 8-Pin DIPBrand | Broadcom |
Key Features
- Operates with a maximum forward voltage of 1.85 volts.
- Includes a single isolation channel for effective signal coupling.
- Typical rise time of 30 nanoseconds enhances signal responsiveness.
- Maximum input current rating is 230 milliamps ensuring robust operation.
- Operating temperature ranges between -40°C and 85°C for diverse environments.
- Features logic output compliant with IEC/EN/DIN EN 60747-5-2, CSA, and UL1577 standards.
- Packaged in tape & reel format for automated assembly processes.
- Designed under the HCPL series, assuring consistent performance.
Product Description
Broadcom HCPL-2201-000E is a high-performance optocoupler designed for through hole mounting, featuring an 8-pin DIP package configuration. This device provides reliable isolation and signal transfer between input and output circuitry using a single channel.
The optocoupler supports a maximum forward voltage of 1.85 volts and can handle a maximum input current of 230 milliamps. With a typical rise time of 30 nanoseconds and a fall time of 7 nanoseconds, it is optimized for rapid switching applications.
Operating temperature ranges from -40°C to 85°C, making it suitable for various industrial, electronic manufacturing, and power control systems. The logic output is designed to meet multiple international compliance standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL1577, ensuring safe and standardized operation.
Packaging is supplied in tape and reel form, facilitating automated pick-and-place assembly in manufacturing environments. The HCPL series is known for its robust quality and application versatility in electronics, industrial equipment, and power management systems.
Maximum forward voltage of 1.85V ensures stable input operation. One channel for optically isolated signal transmission. Typical rise and fall times of 30ns and 7ns respectively, suitable for fast switching. Maximum input current of 230mA supports robust load handling.
Wide operating temperature of -40°C to 85°C for industrial application flexibility. Compliance with IEC/EN/DIN EN 60747-5-2 and UL1577 enhances device reliability. 8-pin DIP package ideal for through hole mounting on PCBs.
Available in tape and reel packaging for automated assembly. Designed for use in electronic components, power systems, and signal isolation.
This product is well suited for electronic, manufacturing, and industrial environments where reliable electrical isolation and signal integrity are required. EnvMart offers this Optocoupler as part of its comprehensive range of electronic components, supporting high quality and compliance standards for professional applications.
