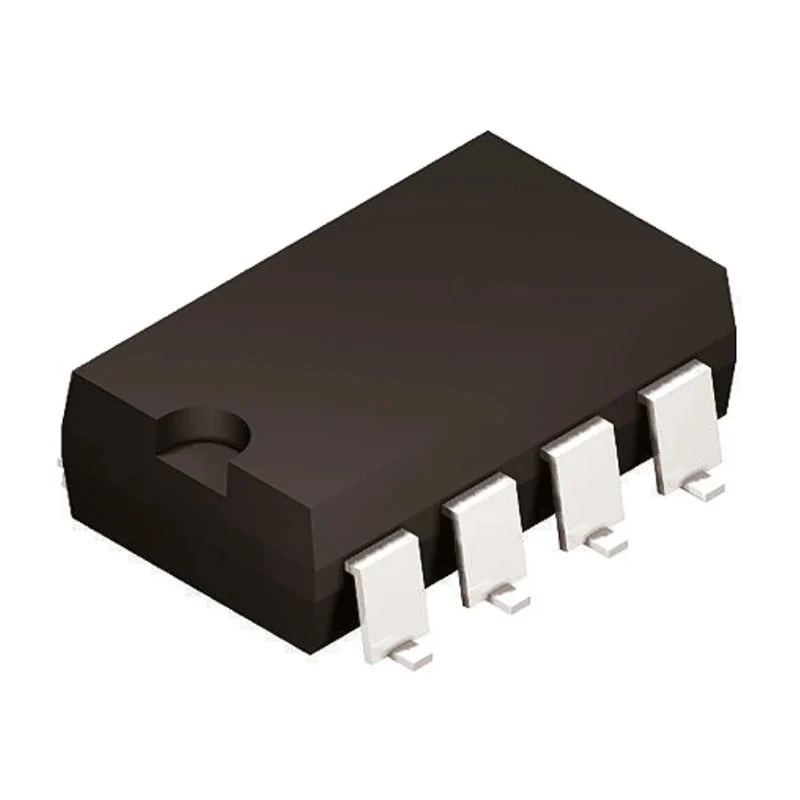

Broadcom DC Input Optocoupler 8-Pin DIP Surface Mount, 1 Channel, 1.85V Forward Voltage, 1.8mA Max Input HCPL-2211-300E

Broadcom HCPL-2211-300E is a DC input optocoupler designed with a surface mount 8-pin DIP package offering robust optical isolation for electronic circuitry. It integrates a single channel opto-isolator with a maximum forward voltage of 1.85V, ensuring reliable input signal transmission. This optocoupler is suitable for industrial, laboratory, manufacturing, and electronic device applications where electrical isolation is critical to system integrity and noise reduction.

The device supports a maximum input current of 1.8mA and features a direct current input type, making it ideal for low power digital signal transmission. Fast switching speeds are enabled by typical rise and fall times of 30ns and 7ns respectively, supporting signal integrity in high-speed data processes.

With an isolation voltage rating of 3750Vrms, it provides superior protection between input and output sides, mitigating risks in high-voltage environments. Operating temperature ranges from -40°C to 85°C ensure reliable performance across demanding industrial conditions. Packaging in tape and reel format enables compatibility with automated manufacturing lines and efficient component handling.

The HCPL-2211-300E meets rigorous international standards including IEC/EN/DIN EN 60747-5-5, UL1577, and CSA, emphasizing its compliance with global safety and performance requirements. It is recommended for use in industrial electronics, power supply isolation, communication systems, and electronic control units where high reliability and endurance are mandatory.

Key features include its compact 8-pin DIP package, logic output compatibility, and absence of automotive certification, focusing its utility on general electronic and industrial applications. This product enhances safety by providing galvanic separation, reducing noise, and protecting sensitive components from voltage spikes.

Offers a maximum forward voltage of 1.85V for input signal integrity. Designed with a single channel and features DC input current type. Supports a maximum input current of 1.8mA suitable for low power applications. Typical rise and fall times are 30ns and 7ns respectively for high-speed switching.

Ensures isolation voltage of 3750Vrms for strong electrical isolation. Operational temperature range from -40°C to 85°C for diverse industrial environments. Conforms to IEC/EN/DIN EN 60747-5-5, UL1577, and CSA standards for quality assurance.

Package type is DIP with tape and reel packaging for efficient automated assembly. Explore our range of Broadcom Optocouplers and related electronic components at EnvMart for reliable industrial and commercial applications.
