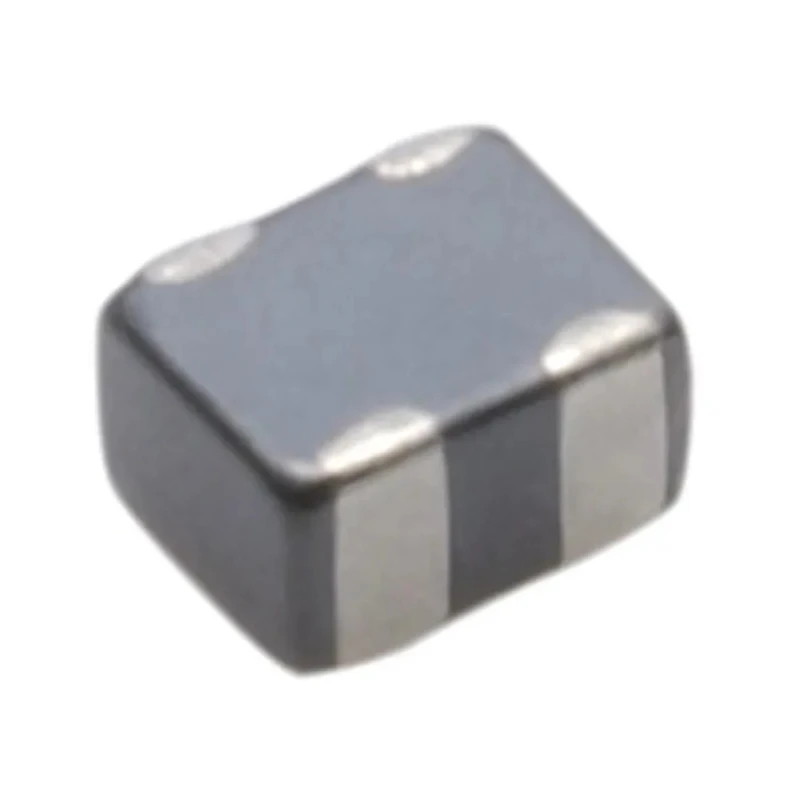

TDK Shielded Wirewound Surface Mount Inductor 1210 Package ±25% Inductance Tolerance 100mA Maximum DC Current MCZ1210CH240L2T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.25mm |
| Brand | TDK |
| Height | 0.5mm |
| Length | 1.25mm |
| Model | MCZ1210CH240L2T |
| Depth | 1mm |
| Packaging | Tape & Reel |
| Series | MCZ-CH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB2 |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 100mA |
| Pin Count | 4 |
| Maximum DC Resistance | 1000mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Wirewound surface mount construction for high reliability.
- Inductance tolerance of ±25% ensures consistent performance.
- Maximum DC current rating of 100mA suitable for low-power applications.
- Package type 1210 with compact dimensions of 1.25mm diameter and 0.5mm height.
- Shielded design reduces electromagnetic interference.
- Solder termination style for secure PCB mounting.
- Operating temperature range from -40°C to 85°C for versatile usage.
- RoHS compliant and moulded for durability.
Product Description
TDK MCZ1210CH240L2T is a shielded wirewound surface mount inductor designed for electronic circuits requiring compact size and EMC suppression. It features a standard 1210 package with dimensions 1.25mm diameter, 1.0mm depth, and 0.5mm height. The wirewound construction provides stable inductance of ±25% tolerance and supports a maximum DC current of 100mA. It operates reliably within a temperature range of -40°C to 85°C.
This inductor is shielded to minimize interference, making it ideal for high-speed data interfaces such as LVDS, USB 2.0, and HDMI sink devices. Common applications include mobile phones, PCs, digital still cameras, portable game machines, and various display technologies like PDP, LCD, and DLP TVs.
The device comes in tape and reel packaging optimized for automated pick-and-place assembly, ensuring production efficiency. It is solder terminated for secure attachment to printed circuit boards. The MCZ-CH series broadens frequency capabilities up to 3.5GHz, further enhancing its suitability for advanced electronics.
TDK's MCZ series inductors comply with RoHS directives and are moulded for robust mechanical protection. Their wirewound inductor construction ensures performance stability even in demanding industrial and commercial applications.
Wirewound surface mount construction for high reliability. Inductance tolerance of ±25% ensures consistent performance. Maximum DC current rating of 100mA suitable for low-power applications. Package type 1210 with compact dimensions of 1.25mm diameter and 0.5mm height.
Shielded design reduces electromagnetic interference. Solder termination style for secure PCB mounting. Operating temperature range from -40°C to 85°C for versatile usage. RoHS compliant and moulded for durability.
This product is essential for electronics manufacturing, design, and repair tasks where precision and compactness are critical. Browse additional Surface Mount Inductors and TDK brand components on EnvMart for comprehensive sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance tolerance of this model is ±25%, ensuring consistent performance in electronic circuits.
It has a maximum DC current rating of 100mA, making it suitable for low-power applications.
This inductor has a diameter of 1.25mm, a depth of 1mm, and a height of 0.5mm, fitting into a compact 1210 package.
The operating temperature range is from -40°C to 85°C, allowing for versatile usage in various environments.
It features a wirewound construction, which provides stable inductance and high reliability.
It comes in tape and reel packaging, optimized for automated pick-and-place assembly, ensuring production efficiency.
This model is suitable for high-speed data interfaces such as USB 2.0, LVDS, and HDMI sink devices.
Yes, it is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.
The termination style is solder, providing secure attachment to printed circuit boards.
The maximum DC resistance is 1000mΩ, which is important for minimizing power loss in circuits.
Common applications include mobile phones, PCs, digital still cameras, and various display technologies like PDP, LCD, and DLP TVs.
This inductor is part of the MCZ-CH series, which broadens frequency capabilities up to 3.5GHz.
