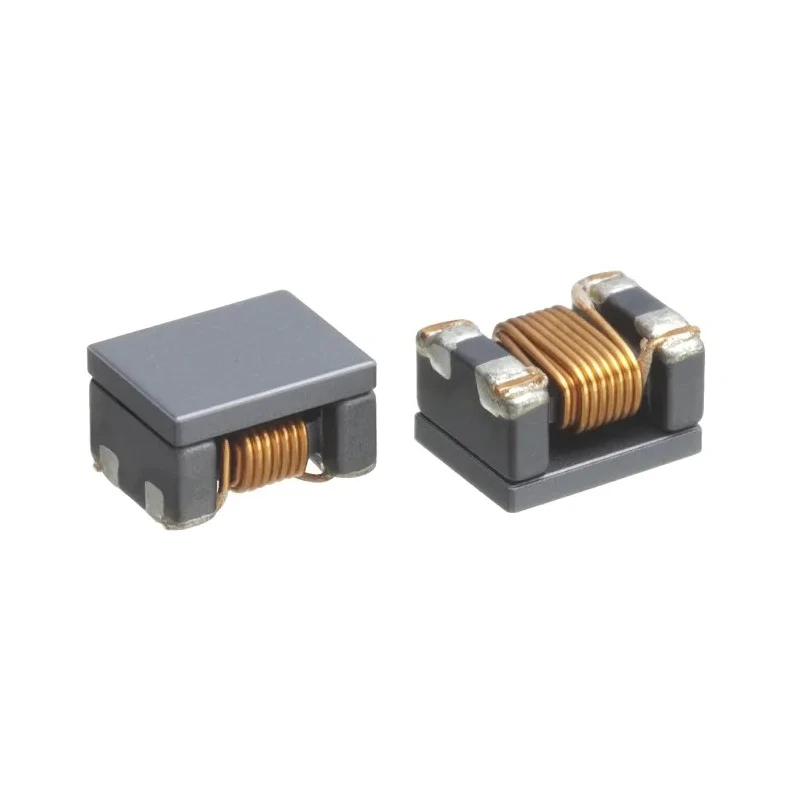

TDK Shielded Wirewound Surface Mount Inductor 1.7 μH ±25 % 2 A IDC 3225 Package ACP3225-501-2P-T000
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.2mm |
| Brand | TDK |
| Height | 1.9mm |
| Length | 3.2mm |
| Model | ACP3225-501-2P-T000 |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | ACP |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 1.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 2A |
| Pin Count | 4 |
| Maximum DC Resistance | 40mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| SMD Common Mode Choke, 1.7uH, R100, 2ABrand | TDK |
Key Features
- The inductor features a compact 3225 package case size with dimensions 3.2 x 2.5 x 1.9 mm.
- It has a low maximum DC resistance of 40 mΩ ensuring power efficiency.
- Designed with wirewound construction, it offers excellent common mode noise suppression and EMC performance.
- The component is RoHS compliant and molded for durability in surface-mount applications.
- Operating temperature ranges from -40°C to 85°C, suitable for various electronic device environments.
- Termination style is solder, compatible with standard PCB assembly processes.
- Pin count is 4, enabling reliable connections in circuit designs.
- This inductor is ideal for DC power supply lines, AC adapter lines, and battery circuits in portable and high-density devices.
Product Description
TDK ACP3225-501-2P-T000 shielded wirewound surface mount inductor provides 1.7 μH inductance with a tolerance of ±25% and supports a maximum DC current of 2 A. This component features a compact 3225 package size (3.2 x 2.5 x 1.9 mm), designed to optimize circuit density while maintaining efficient filtering and noise suppression performance.
Constructed using wirewound technology, the inductor ensures low direct current resistance (max 40 mΩ), reducing power loss and improving overall efficiency. It is fully molded and RoHS compliant, making it suitable for environmentally conscious electronic manufacturing.
The inductor operates reliably within a temperature range of -40°C to 85°C, making it applicable for a wide variety of electronics including DC power lines, AC adapters, notebook PC power supplies, portable gaming devices, and mobile phones. Its shielding and 4-pin termination with solder style facilitate high EMC suppression and ease of installation on standard printed circuit boards.
TDK's ACP series common mode chokes are renowned for low resistance and high common mode impedance, which reduce power consumption and enhance electromagnetic compatibility (EMC) in electronic devices.
The inductor's dimensions and shielded design suit highly dense portable devices. It supports effective EMI filtering in DC power supply lines. RoHS compliance aligns with modern regulatory standards. Durable molded package ensures mechanical robustness.
Compatible with standard PCB soldering processes. Suitable for commercial, industrial, and consumer electronics manufacturing applications. Packaging is provided in tape and reel format to enhance automated assembly efficiency.
Explore the full range of TDK Surface Mount Inductors for advanced electromagnetic interference solutions and reliable component performance in demanding electronics applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 1.7 μH with a tolerance of ±25%.
It supports a maximum DC current of 2 A.
The dimensions of the 3225 package are 3.2 mm in length, 2.5 mm in depth, and 1.9 mm in height.
The maximum DC resistance is 40 mΩ, ensuring power efficiency.
It operates reliably within a temperature range of -40°C to 85°C.
This inductor is constructed using wirewound technology, which provides excellent common mode noise suppression.
The termination style is solder, compatible with standard PCB assembly processes.
It has a pin count of 4, enabling reliable connections in circuit designs.
This model is RoHS compliant, aligning with modern regulatory standards.
It is packaged in tape and reel format to enhance automated assembly efficiency.
The country of origin for this inductor is India.
It is suitable for applications in DC power supply lines, AC adapter lines, and battery circuits in portable and high-density devices.
