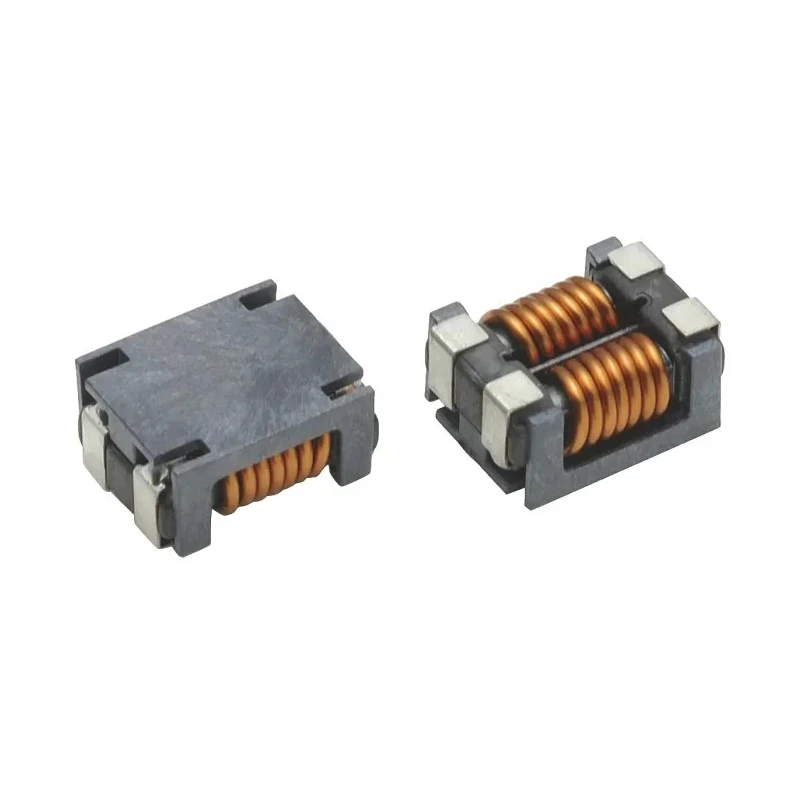

TDK ACM-V Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.9 μH 5 A DC Current ACM90V-701-2PL-TL00
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 9mm |
| Model | ACM90V-701-2PL-TL00 |
| Depth | 7mm |
| Packaging | Reel |
| Series | ACM-V |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.9μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 5A |
| Pin Count | 4 |
| Maximum DC Resistance | 10mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed for automotive applications, compliant with AEC-Q200 standard.
- Compact size with length of 9 mm, height 4.5 mm, and depth 7 mm.
- Supports operating temperatures from -40°C to 125°C.
- Offers low DC resistance of 10 mΩ, enhancing efficiency.
- Wirewound construction with molded ferrite core ensures excellent shielding and durability.
- Surface mount termination style enables easy PCB assembly.
- Suitable for common mode noise suppression in DC power lines for automotive and electronic devices.
- RoHS compliant, meets environmental safety standards.
Product Description
TDK ACM90V-701-2PL-TL00 is a shielded wirewound surface mount inductor utilizing a ferrite core, providing a 6.9 μH inductance and capable of carrying up to 5 A DC current. Its compact dimensions (9 mm length, 4.5 mm height, and 7 mm depth) and molded construction make it ideal for high reliability automotive and industrial applications.
This inductor operates across a wide temperature range from -40°C to 125°C, complying with the automotive AEC-Q200 standard for performance under harsh conditions. The device features a low maximum DC resistance of 10 milliohms to ensure efficient current handling with minimal power loss.
The wirewound construction with ferrite core and built-in shielding design provide excellent common mode noise suppression, making it suitable for power line filters in automotive multimedia equipment and various electronic controllers. The surface mount termination style supports automated assembly and compact PCB layouts.
Designed specifically for automotive power line noise suppression and compatible with high current applications up to 5 A. Robust operating temperature tolerance from -40°C to +125°C ensures reliable operation in demanding environments.
Low DC resistance enhances energy efficiency and reduces heat generation during operation. Molded ferrite core construction enhances mechanical stability and shielding effectiveness. Compatible with reel packaging that facilitates high volume assembly processes.
Compliant with RoHS directives, ensuring environmentally friendly manufacturing. Pin count of 4 aids in reliable surface mounting on PCB circuits.
This product is suited for use in industrial electronics, automotive power supply lines, and electronic devices needing effective EMI noise filtering. The TDK ACM-Series offers excellent impedance characteristics, making it a preferred choice for common mode noise countermeasure solutions in DC power lines.
For further component selection, design resources such as 3D models, schematics, and footprints are available to assist in PCB design and integration. Explore more Surface Mount Inductors in the electronics & electricals category here at EnvMart to meet your industrial and automotive design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.9 μH.
It can handle a maximum DC current of 5 A.
This unit has dimensions of 9 mm in length, 4.5 mm in height, and 7 mm in depth.
The maximum DC resistance is 10 mΩ, which enhances efficiency.
It operates within a temperature range of -40°C to 125°C.
It features a wirewound construction with a molded ferrite core.
Yes, it complies with the AEC-Q200 standard for automotive applications.
The termination style is surface mount, which supports easy PCB assembly.
It is packaged on a reel, facilitating high volume assembly processes.
It is suitable for common mode noise suppression in DC power lines for automotive and electronic devices.
The core material is ferrite, which contributes to its shielding effectiveness.
The country of origin for this product is India.
