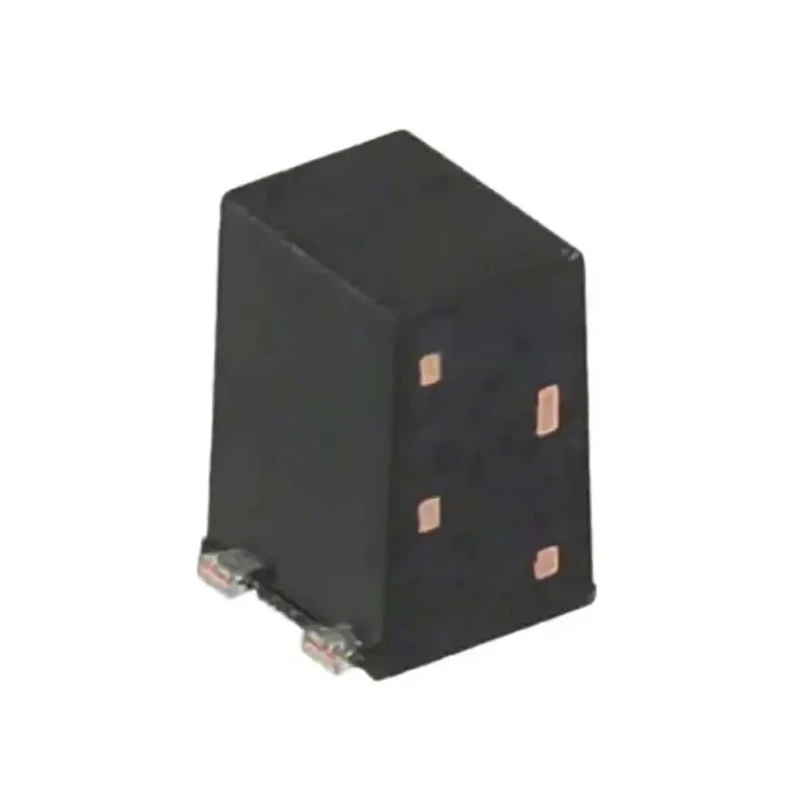

Panasonic PhotoMOS Series Solid State Relay, 0.3A Load, Surface Mount, 100V Load AQY225R3T

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PhotoMOS Series Solid State Relay, 0.3A Load, Surface Mount, 100V Load AQY225R3T

Name: Panasonic PhotoMOS Series Solid State Relay, 0.3A Load, Surface Mount, 100V Load AQY225R3T
Brand: Panasonic
SKU: 410837
Price: 16.09 USD
Availability: InStock



Category Solid State Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	2.9mm
Length	2.1mm
Model	AQY225R3T
Width	1.8mm
Mount Type	Surface
Output type	MOSFET
Series	PhotoMOS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Capacitance	1.5pF
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Switching Function	AC/DC Switching
Maximum Load Current	0.3A
Standards/Approvals	RoHS
Maximum Load Voltage	100V
Minimum Load Voltage	50V
Off State Leakage Current	10nA
On State Resistance	14Ω
Load voltage	60 V and 100 V

Key Features

Compact VSSOP package measuring 2.1mm length by 1.8mm width and 2.9mm height.
Load voltage range supports 60V and 100V applications with AC/DC switching capability.
Low on state resistance of 14Ω ensuring efficient conduction.
Minimum operation temperature of -40°C and max temperature of 85°C for reliable performance.
Through hole terminal type with SPST contact configuration.
Low off state leakage current of 10nA and output capacitance of 1.5pF.
MOSFET output type designed for reduced switching noise.
RoHS compliant and manufactured in Japan to high quality standards.

Product Description

Panasonic AQY225R3T PhotoMOS Series Solid State Relay is a precision electronic switching device rated for a 0.3A maximum load current and designed for surface mount applications requiring up to 100V load voltage. This miniature VSSOP package relay is engineered for use in industrial, automation, and electrical control systems where compactness and reliability are essential.

The relay features a standard length of 2.1mm, height of 2.9mm, and width of 1.8mm, providing a small footprint suitable for dense PCB layouts. It supports a load voltage range of 60V to 100V, enabling AC and DC switching functions with a single-pole single-throw (SPST) contact configuration.

With an on-state resistance of just 14Ω, it ensures efficient energy transfer and reduced power losses. The device operates reliably across a temperature range from -40°C up to 85°C, making it suitable for a wide variety of industrial environments.

The relay's through hole terminal configuration facilitates firm PCB mounting, while its low off state leakage current of 10nA and capacitance of 1.5pF minimize unwanted signal interference. Its MOSFET output type further enhances switching performance and device longevity.

Compliant with RoHS standards and manufactured in Japan, this relay guarantees high quality and environmental responsibility. Its design focuses on integration into automation systems, electrical control circuits, instrumentation, and other electronic applications demanding dependable solid-state switching.

Compact VSSOP package optimized for surface mounting. Low on resistance and capacitance for efficient switching. Wide operating temperature range ensures versatility. Suitable for AC/DC switching up to 100V load voltage.

Manufactured in Japan under stringent quality controls.

For professionals in electronics design, industrial automation, and electrical engineering, the Panasonic AQY225R3T presents a reliable solution for Solid State Relay needs. Explore the Panasonic product range and related relays on EnvMart for comprehensive sourcing options.
