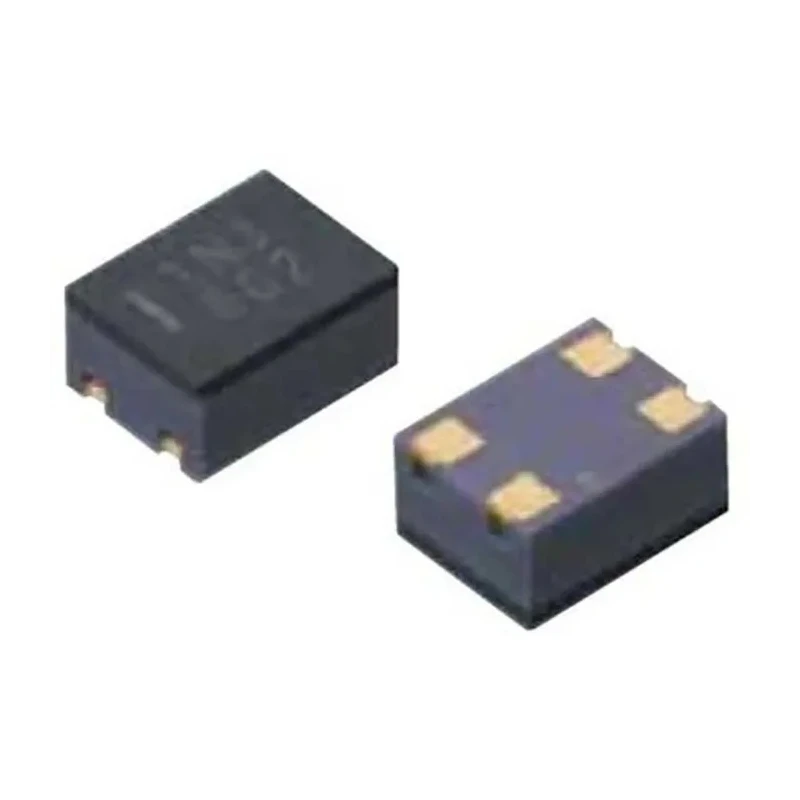

Panasonic PhotoMOS Series Solid State Relay, Surface Mount, 0.15 A Load, 25 V Load AQY221N3M

Panasonic AQY221N3M PhotoMOS Series Solid State Relay is a micro-miniature, surface mount relay designed for low load capacities up to 0.15 A and maximum load voltage of 25 V. It integrates a MOSFET output type to provide high-speed, reliable switching for both AC and DC loads.

The relay employs a Single Pole Single Throw (SPST) contact configuration with a switching function suitable for AC/DC applications. Its compact SON package significantly reduces volume by approximately 43% compared to older SSOP types, facilitating space savings in dense electronic assemblies.

Technical specifications highlight an on-state resistance of 7.5 ohms, capacitance of 1.5 pF, and off-state leakage current at a minuscule 10 nA. Designed to operate efficiently across a broad temperature range from -40°C to 85°C, it is suitable for harsh industrial, automation, and electronic control environments.

Its dimensions (2.95 mm length × 2.2 mm width × 1.4 mm height) enable high-density mounting and integration on surface mount circuit boards. Compliant with RoHS directives, this relay supports environmentally responsible manufacturing practices.

Ideal for applications in industrial automation, signal conditioning, and electrical controls, the Panasonic AQY221N3M PhotoMOS relay delivers precision, durability, and compact form factor for advanced electronics solutions.

The relay employs a MOSFET output type ensuring reliable AC/DC switching performance. It features a compact micro-miniature SON package ideal for space-saving applications. Operational temperature range spans from -40°C to 85°C for wide environmental tolerance.

Utilizes a single-pole, single-throw (SPST) contact configuration for straightforward switching. On-state resistance is 7.5 ohms, facilitating efficient current flow with minimal loss. Capacitance is rated at 1.5 pF, supporting high-speed switching applications.

Off-state leakage current is low at 10 nA to reduce power waste and interference. Package dimensions compact at 2.95 mm length, 2.2 mm width, and 1.4 mm height for high-density mounting. Complies with RoHS standards indicating environmentally friendly manufacturing.

Manufactured in Japan ensuring quality and reliability. Explore the full range of Panasonic Solid State Relays on EnvMart for reliable and efficient relay solutions in industrial and electronic applications.
