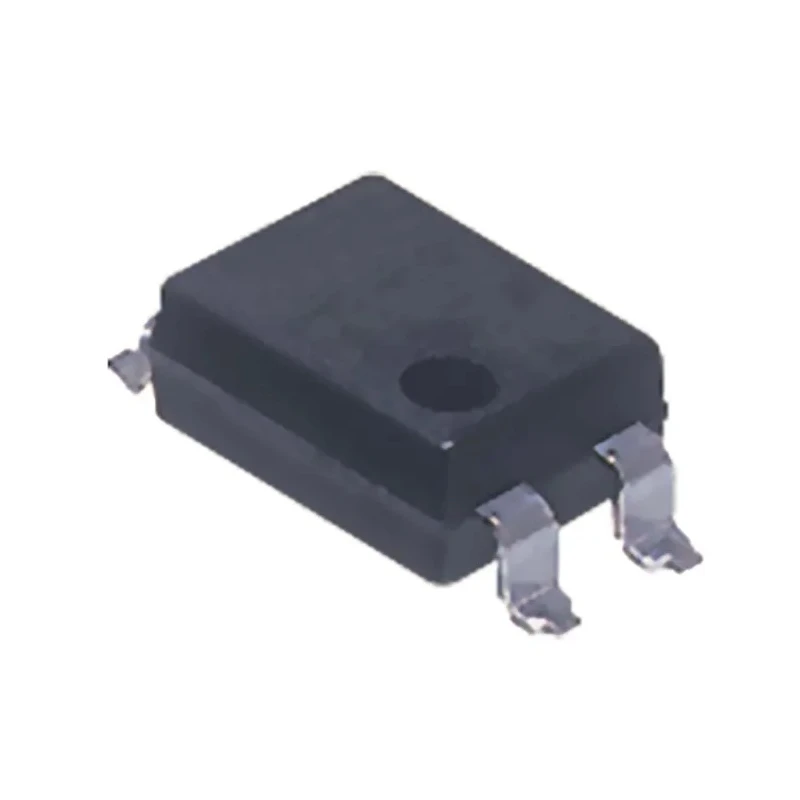

Panasonic PhotoMOS Series Solid State Relay, 1.5 A Load, Surface Mount, 60 V Load AQY412EHA

Panasonic AQY412EHA PhotoMOS Series Solid State Relay is a highly reliable component designed for precise and efficient switching applications. It supports a maximum load current of 1.5 A and a load voltage up to 60 V, suitable for both AC and DC switching operations with SPST contact configuration. This surface mount relay features an MOSFET output type, providing low on-state resistance of 2.5 ohms, which minimizes power losses and enhances performance in industrial and electronic applications.

Operating across a temperature range from -40°C to 85°C, the AQY412EHA is well-suited for demanding environments including industrial automation, manufacturing control systems, and laboratory equipment. Its compact size with dimensions 6.4 mm length, 4.78 mm width, and 2.9 mm height makes integration into tight PCB layouts seamless.

The relay incorporates reinforced insulation rated at 5000 V, ensuring high safety and durability. Its low off-state leakage current of 10 microamperes reduces unnecessary power consumption, and a capacitance of 1.5 pF aids in stable signal transmission. As part of the Panasonic PhotoMOS series, it provides high sensitivity needed for controlling low-level analogue signals effectively.

This solid state relay features a maximum load current of 1.5 A. It supports AC/DC switching with SPST contact configuration. The device uses MOSFET output type for efficient switching. It has low on-state resistance of 2.5Ω to reduce power loss.

Operating temperature range from -40°C to 85°C offers wide applicability. Compact dimensions: length 6.4 mm, width 4.78 mm, and height 2.9 mm. Reinforced insulation ensures 5000 V isolation voltage for enhanced safety. Low off-state leakage current of 10 μA reduces power consumption.

High sensitivity for low-level analogue signal control. Compliant with RoHS standards for environmental safety.

This relay is applicable in industrial automation, electrical switching, signal conditioning, and other electronics where reliable and silent switching is critical. Its reinforced insulation and low leakage current make it ideal for sensitive and high-precision control circuits.

Choose Panasonic PhotoMOS Series Solid State Relay AQY412EHA for assured quality, durability, and performance in your electronic assemblies, supported by compliance with environmental standards.
