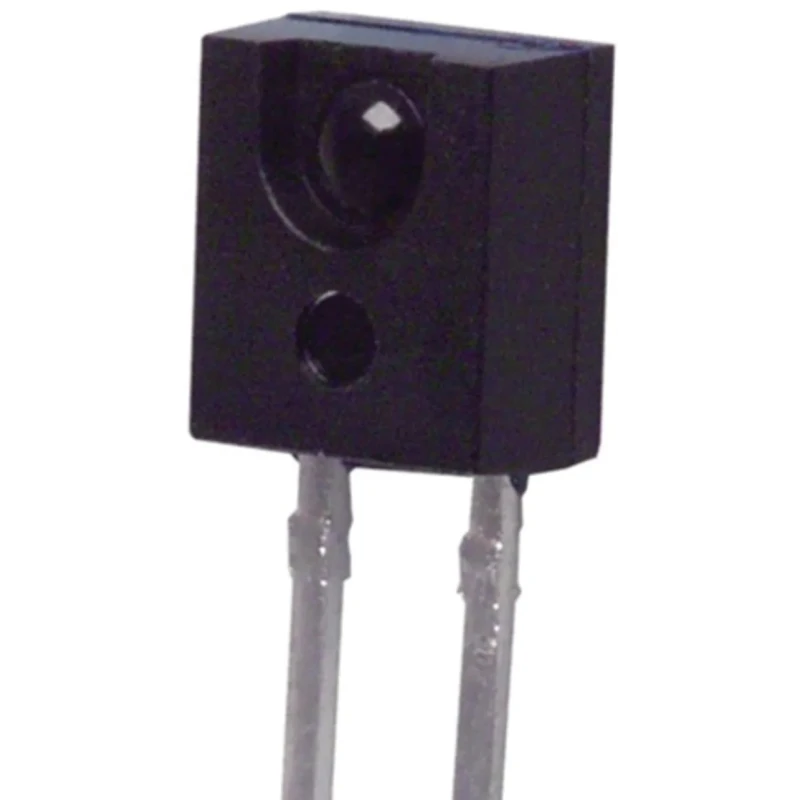

onsemi 25° Infrared Phototransistor, Through Hole 2-Pin Side Looker Package QSE113
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.41mm |
| Brand | onsemi |
| Operating Temperature | -40 to +100 °C |
| Height | 5.08mm |
| Length | 4.44mm |
| Model | QSE113 |
| Width | 2.22mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 100°C |
| Package Type | Side Looker |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Number of Pins | 2 |
| Typical Fall Time | 8μs |
| Peak Wavelength | 880nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 25 ° |
| Package material and colour | black epoxy |
| Collector Current | 1.5mA |
| Maximum Dark Current | 100nA |
| Collector Emitter Voltage | 30V |
| Emitter Collector Voltage | 5V |
Key Features
- The phototransistor detects infrared spectrums with a peak wavelength of 880nm.
- It features a typical rise and fall time of 8 microseconds.
- The device supports a collector current of up to 1.5mA and maximum dark current of 100nA.
- Operating temperature ranges from -40°C to 100°C for reliable performance.
- Constructed with black epoxy package material for durability and IR transparency.
- Two-pin configuration suitable for standard through-hole mounting in electronic circuits.
- Offers medium wide reception angle enhancing IR sensitivity and response.
- Collector-emitter voltage maximum rating is 30V and emitter-collector voltage is 5V.
Product Description
onsemi QSE113 is a silicon infrared phototransistor designed for enhanced IR detection in electronic applications. This component features a side looker through-hole package with a 25° half sensitivity angle, ideal for precision sensing in optoelectronic circuits. The black epoxy package material is both durable and transparent to infrared light, ensuring high sensitivity at a peak wavelength of 880nm.
The device is engineered for fast response times with typical rise and fall times of 8 microseconds, enabling efficient signal detection. It operates reliably across a broad temperature range from -40°C to +100°C, suitable for diverse industrial and commercial environments. With a collector current capability of 1.5mA and low dark current of 100nA, it maintains low noise and high accuracy in signal detection.
The two-pin through-hole mount design allows for easy integration into various electronic assemblies. Electrical ratings include a maximum collector-emitter voltage of 30V and emitter-collector voltage of 5V, accommodating common circuit requirements. This phototransistor is commonly used in industrial, laboratory, instrumentation, and automation applications requiring precise infrared sensing.
The phototransistor detects infrared spectrum with high sensitivity. Typical rise and fall times of 8 microseconds ensure rapid response. Durable black epoxy package allows IR transparency. Operating temperature range from -40°C to 100°C supports rugged environments.
Compact physical dimensions facilitate integration in tight spaces. Low dark current of 100nA minimizes signal noise in applications. Side looker package provides directional infrared detection. Standard two-pin through-hole mount for straightforward installation.
Suitable for applications in industrial, optoelectronics, and automation systems. Explore the comprehensive range of onsemi Phototransistors and optoelectronic components available at EnvMart for quality and performance assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The phototransistor detects infrared spectrums with a peak wavelength of 880nm.
The maximum collector-emitter voltage rating is 30V.
It operates reliably across a temperature range from -40°C to +100°C.
The typical rise and fall time is 8 microseconds.
This model features a two-pin configuration suitable for through-hole mounting.
It supports a maximum collector current of up to 1.5mA.
The angle of half sensitivity is 25°.
The maximum dark current is 100nA.
It is constructed with a black epoxy package material, designed as a side looker.
The dimensions are 4.44mm in length, 2.22mm in width, and 5.08mm in height.
It is commonly used in industrial, laboratory, instrumentation, and automation applications requiring precise infrared sensing.
The package is made of black epoxy material, which is durable and transparent to infrared light.
