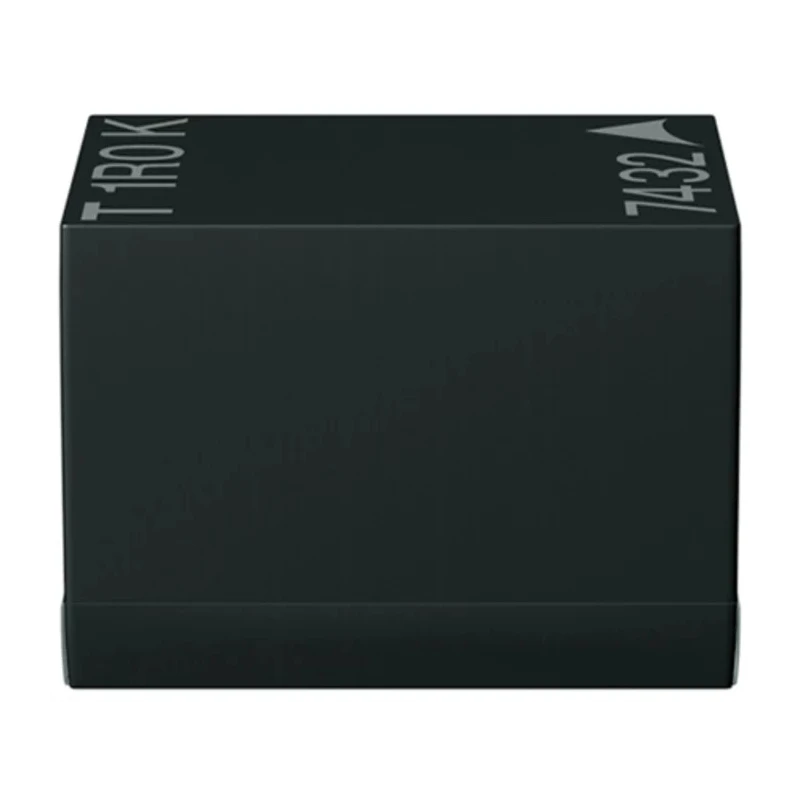

TDK SIMID 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3μH ±10% 900mA Idc Q:10 B82432T1332K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | B82432T1332K000 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 900mA |
| Pin Count | 2 |
| Maximum DC Resistance | 190mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 50MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 1812 package suitable for surface mounting applications.
- Constructed with a ferrite core for effective magnetic shielding.
- Maximum DC resistance of 190mΩ ensures low power loss.
- Operating temperature range from -55°C to 150°C accommodates harsh environments.
- High quality factor of 10 improves efficiency at frequencies up to 50MHz.
- Meets automotive standard AEC-Q200 for reliability in automotive electronics.
- Packaged in tape and reel format for automated assembly.
- Solder termination style enables secure PCB mounting.
Product Description
TDK B82432T1332K000 is a shielded wirewound Surface Mount Inductor designed for demanding electronic applications. Featuring a ferrite core and a compact 1812 package size, this component provides 3.3μH inductance with a tolerance of ±10%, and supports a maximum DC current of 900mA. The inductor exhibits low DC resistance at 190mΩ, minimizing power dissipation and enhancing efficiency.
Engineered for robust performance, it withstands operating temperatures from -55°C up to 150°C, making it ideal for industrial, automotive, and telecommunications uses. The high quality factor of 10 offers excellent frequency response up to a self-resonant frequency of 50MHz. Compliance with the AEC-Q200 automotive standard guarantees reliability under stringent automotive conditions.
Its wirewound construction ensures stable inductance and excellent current handling capability, suited for filtering supply voltages, coupling, decoupling, and DC/DC converter applications. The tape and reel packaging supports streamlined manufacturing and placement during automated PCB assembly processes.
Compact 1812 surface mount package facilitating space-constrained designs. Ferrite core material provides effective shielding to reduce electromagnetic interference. High thermal endurance supporting harsh operating conditions.
Low resistance for improved energy efficiency and reduced heat generation. Wirewound construction delivering consistent performance and durability. Automotive grade reliability certified to AEC-Q200 standards. Packaging designed for high volume industrial assembly.
Suitable for applications in automotive electronics, telecommunications, power supplies, and industrial equipment. Manufactured in Hungary, ensuring strict quality controls and product consistency. Solder terminations for reliable PCB mounting.
Explore EnvMart's comprehensive range of inductors and surface mount components to find products matching your industrial, commercial, or electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 3.3μH with a tolerance of ±10%.
It supports a maximum DC current of 900mA, allowing for effective current handling in various applications.
The dimensions of this inductor are 4.5mm in length, 3.2mm in height, and 3.2mm in depth.
The operating temperature range is from -55°C to 150°C, accommodating harsh environmental conditions.
The maximum DC resistance is 190mΩ, which helps minimize power loss during operation.
It has a maximum self-resonant frequency of 50MHz, making it suitable for high-frequency applications.
This inductor is constructed with a ferrite core, which provides effective magnetic shielding.
It features a solder termination style, ensuring secure mounting on PCBs.
Yes, it complies with the AEC-Q200 automotive standard, ensuring reliability in automotive applications.
It is packaged in tape and reel format, which facilitates automated assembly processes.
This model is manufactured in Hungary, ensuring strict quality controls and product consistency.
