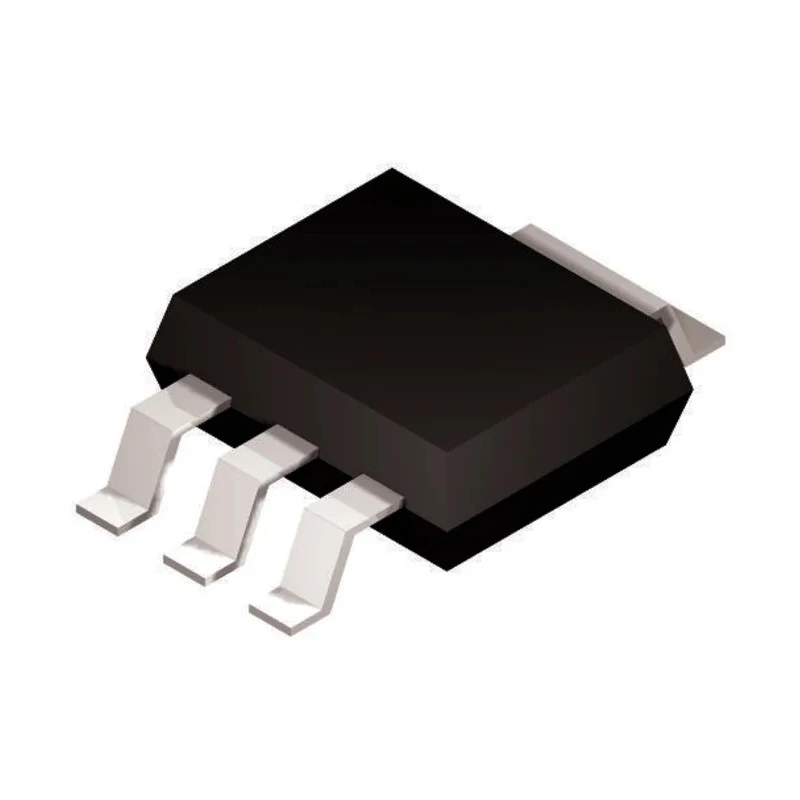

Nexperia High Voltage PNP Bipolar Transistor PBHV9040Z,115, -250 mA, -400 V, 4-Pin SOT-223 Package

Nexperia PBHV9040Z,115 is a high voltage PNP bipolar transistor designed for applications requiring a collector current up to -250 mA and collector-emitter voltage of -400 V. Encapsulated in a compact 4-pin SOT-223 package, it supports surface mount technology for modern PCB assembly.

This transistor features a maximum power dissipation of 1.4 W, making it suitable for low to medium power switching and amplification tasks in various electronic circuits. The device has a minimum DC current gain (hFE) of 100 and can operate efficiently up to a maximum transition frequency of 100 MHz, enabling reliable performance in medium frequency applications.

Specifically, its robust design supports a temperature range from -55°C to 150°C, meeting automotive-grade standard AEC-Q101, thus ensuring reliability in automotive and industrial environments.

With pin count of 4, the transistor configuration is single, and the polarity is PNP. The package dimensions of length 6.7 mm, width 3.7 mm, and height 1.8 mm facilitate compact electronic designs. The device includes maximum collector-base and emitter-base voltages of -500 V and -6 V respectively, providing enhanced voltage handling capability.

This transistor is used in diverse industrial, automotive, and electronic equipment applications, including switching regulators, signal amplification, and power management circuits. Its high voltage rating makes it suitable for power supply and control systems in industrial and automotive sectors.

This transistor supports a maximum collector current of -250 mA. The maximum collector-emitter voltage rating is -400 V ensuring high voltage operation. It has a maximum power dissipation of 1.4 W. The transistor polarity is PNP and it has a single transistor configuration.

The package is a 4-pin SOT-223 suitable for surface mount applications. The device meets automotive standard AEC-Q101 for reliability. Operating temperature ranges from -55°C to 150°C. Maximum transition frequency is 100 MHz, suitable for medium frequency signals.

Physical dimensions include 6.7 mm length, 3.7 mm width, and 1.8 mm height. Manufactured in China with product series PBHV9040Z. Explore more from the Nexperia range and other semiconductor products within the Bipolar Transistor category on EnvMart for industrial and electronic manufacturing needs.
