| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | BC857CW,115 |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | BC857W |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -45V |
| Minimum DC Current Gain hFE | 420 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 50V |
| Maximum Power Dissipation Pd | 200mW |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | Single |
| onsemi SBC807-40WT1G Transistor, 500 mA PNP, 45 V, 3-Pin SOT-323Brand | onsemi |

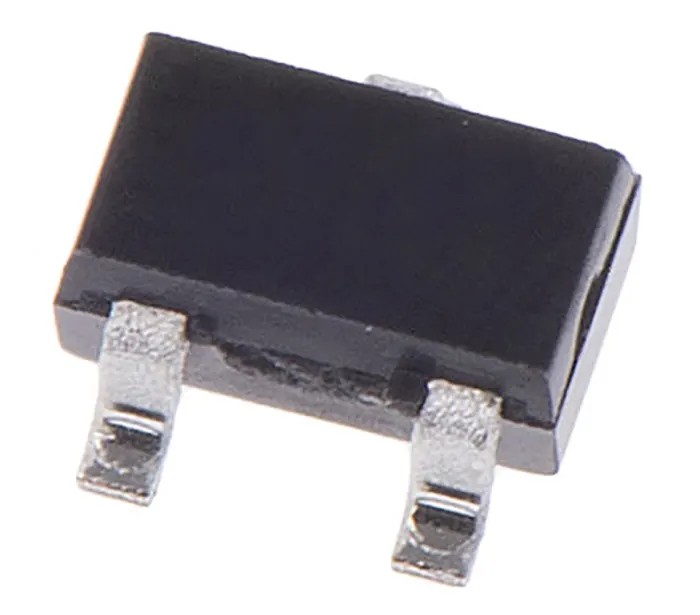

Nexperia BC857CW,115 small signal PNP transistor is designed for use in electronic circuits requiring switching and amplification of low currents with high efficiency. Offering a maximum DC collector current of -100 mA and collector-emitter voltage rating of -45 V, this 3-pin transistor packaged in compact SOT-323 form factor is suitable for surface mount PCB designs.
With a high minimum DC current gain (hFE) of 420, it provides excellent amplification performance while dissipating a maximum of 200 mW power. The transistor operates reliably across a wide temperature range from -65°C up to 150°C, making it ideal for demanding industrial environments.
This device is a single PNP transistor, widely used in switching applications, signal amplification, and electronic control circuits in industrial, automotive, and consumer electronics sectors.
The SOT-323 package dimensions of 2.2 mm length, 2.2 mm width, and 1.1 mm height help in reducing PCB footprint and enabling compact designs. This transistor supports a maximum DC collector current of -100 mA. It has a maximum collector-emitter voltage rating of -45 V.
The transistor is configured as a single PNP device suitable for surface mounting. Maximum power dissipation is 200 mW, ensuring reliable operation within thermal limits. It features a high minimum DC current gain (hFE) of 420, suitable for low noise amplification.
Operating temperature range spans from -65°C to 150°C for robust industrial durability. Compact SOT-323 package dimensions measure 2.2 mm x 2.2 mm x 1.1 mm.
This Nexperia transistor is suitable for various industrial and commercial electronic applications including signal amplification, switching circuits, instrumentation, automotive control systems, and more. Its robust specifications and compact packaging provide a reliable solution for modern electronics design challenges.
