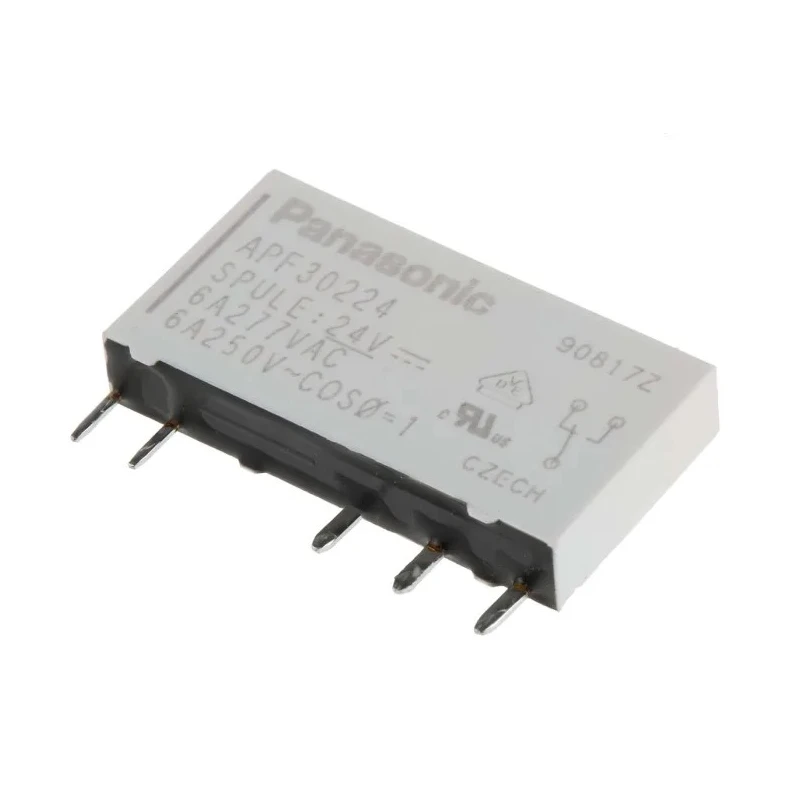

Panasonic Power Relay PCB Mount SPDT, 24V DC Coil Voltage, 6A Switching Current APF30224
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 28mm |
| Model | APF30224 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | APF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, UL, VDE |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
| Finder PCB Relay, 24V dc Coil, 6A Switching Current, SPDTBrand | Finder |
Key Features
- Compact APF series power relay suitable for PCB mounting.
- Operates with a 24V DC coil voltage and 170mW coil power.
- Supports a switching current up to 6A with SPDT contact configuration.
- High switching AC voltage rating of 250V AC and switching power of 1.5kVA.
- Durable silver alloy contact material ensures low contact resistance of 100mΩ.
- Wide operating temperature range from -40°C to 85°C.
- Designed with solder-type terminals for secure PCB mounting.
- Compliant with RoHS, UL, and VDE standards.
Product Description
Panasonic APF30224 Power Relay is a compact and efficient PCB mount relay from the APF series, engineered for applications requiring reliable 24V DC coil activation and SPDT switching configuration. With a coil power consumption of 170mW, this relay supports a switching current of 6A and switching AC voltage up to 250V AC, making it ideal for relay circuits in industrial electronics, control panels, and automation systems.
The device features silver alloy contacts that provide excellent conductivity and maintain a low contact resistance of 100mΩ, ensuring consistent performance and longevity. Its operational temperature range extends from -40°C to 85°C, making it suitable for harsh environmental conditions. The relay includes solder-type terminals for secure attachment to printed circuit boards, facilitating easy installation in compact spaces.
This relay is designed with precise dimensions of 28mm length, 15mm height, and 5mm width, enabling high-density PCB layouts. Its coil resistance of 3.4kΩ ensures stable coil current handling, while compliance with RoHS, UL, and VDE standards confirms its suitability for safety and environmental regulations.
Common applications include industrial automation, electrical control systems, HVAC equipment, and manufacturing machinery where reliable power switching is critical. The APF30224 relay offers a high breaking capacity and robust construction, making it a dependable component in demanding electrical environments.
Compact relay for PCB mounting with APF series design. 24V DC coil voltage with low coil power consumption of 170mW. Switching capabilities of 6A current and 250V AC voltage. Silver alloy contacts ensure durable electrical contact with low resistance.
Wide operating temperature range from -40°C to 85°C for versatile use. Solder terminal type for stable PCB installation. Compliance with international safety and environmental standards including RoHS, UL, and VDE. Dimensions optimized for high-density circuit boards.
For professionals requiring reliable and compact power relays for PCB applications, Panasonic APF30224 offers superior performance and adherence to strict industrial standards. Explore more products in the Power Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It supports a maximum switching current of 6A.
This relay has dimensions of 28mm in length, 15mm in height, and 5mm in width.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay can switch AC voltages up to 250V.
The coil power consumption is 170mW.
The contact material is silver alloy, which ensures low contact resistance.
It operates within a temperature range of -40°C to 85°C.
It is designed with solder-type terminals for secure PCB mounting.
This relay is compliant with RoHS, UL, and VDE standards.
The contact resistance is 100mΩ, ensuring efficient electrical performance.
It is suitable for industrial automation, electrical control systems, HVAC equipment, and manufacturing machinery.
