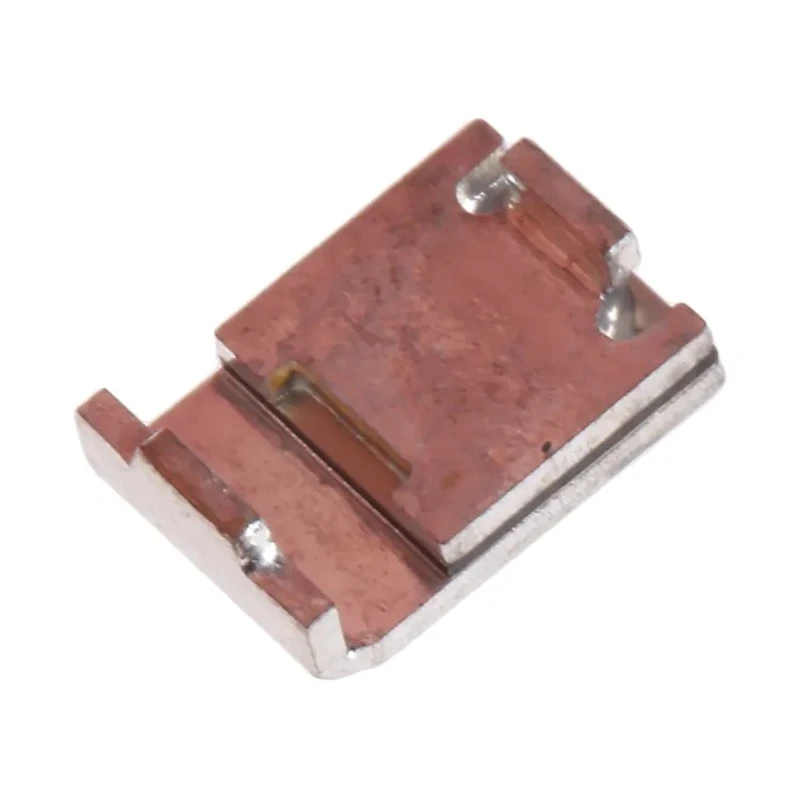

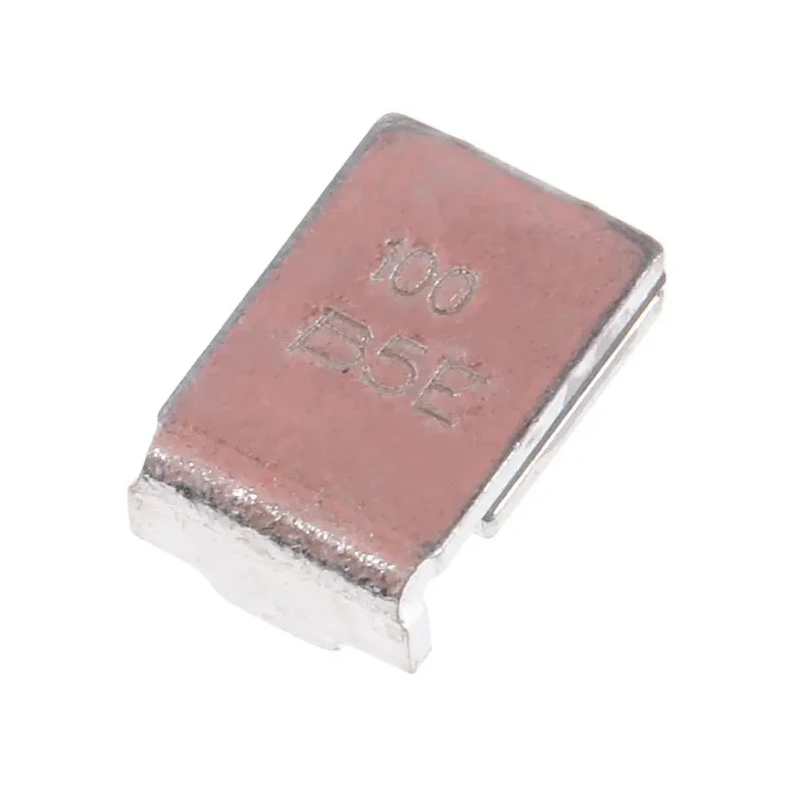

Bourns 1.1 A Resettable Fuse, 30V, 80A Current Rating, Surface Mount MF-SM100-2

Bourns MF-SM100-2 is a surface mount resettable fuse designed for protection of electrical and electronic circuits. Featuring a hold current of 1.1 A and rated for 30V, this fuse provides fast trip response at 2.2 A to protect against overloads and short circuits.

The fuse rapidly transitions from a low resistance state to a high resistance state under excessive current conditions, automatically resetting once normal current is restored and power is cycled. This maintenance-free fuse supports thousands of reset cycles without the need for replacement, enhancing system reliability and reducing downtime.

Constructed with tin plated brass terminals, it offers excellent electrical conductivity and secure soldering for surface mount technology applications. Its compact dimensions of 7.98 mm length, 5.44 mm width, and 3 mm height allow space-efficient circuit board design.

Designed to operate reliably within a temperature range of -40°C to 85°C and power dissipation of 1.7 W, it is suitable for various environments including automotive, medical equipment, instrumentation, control systems, telecommunications, and consumer electronics.

Packaged on reels conforming to EIA 481-2 standards, the MF-SM100-2 supports automated assembly processes. It complies with RoHS standards, ensuring it meets environmental safety regulations.

Applications include protection for power supplies, transformers, security systems, power switching devices, and audio-visual equipment. It provides a compact, efficient, and reliable solution for circuit protection demands in multiple industrial and commercial sectors.

Provides overcurrent protection with a trip current of 2.2 A. Designed for quick switching from low to high resistance under overload conditions. Features automatic self-resetting without need for fuse replacement. Constructed with tin plated brass terminals for reliable connectivity.

Operating temperature range from -40°C to 85°C for versatile environmental use. Compact size dimensions of 7.98mm length, 5.44mm width, and 3mm height. Power dissipation rated at 1.7 W ensuring stable thermal performance.

Meets RoHS compliance standard ensuring environmentally responsible design. Packaged per EIA 481-2 standard on reels for efficient manufacturing assembly. Explore Bourns Resettable Fuses to enhance safety and durability in your electrical and electronic circuit designs on EnvMart.
