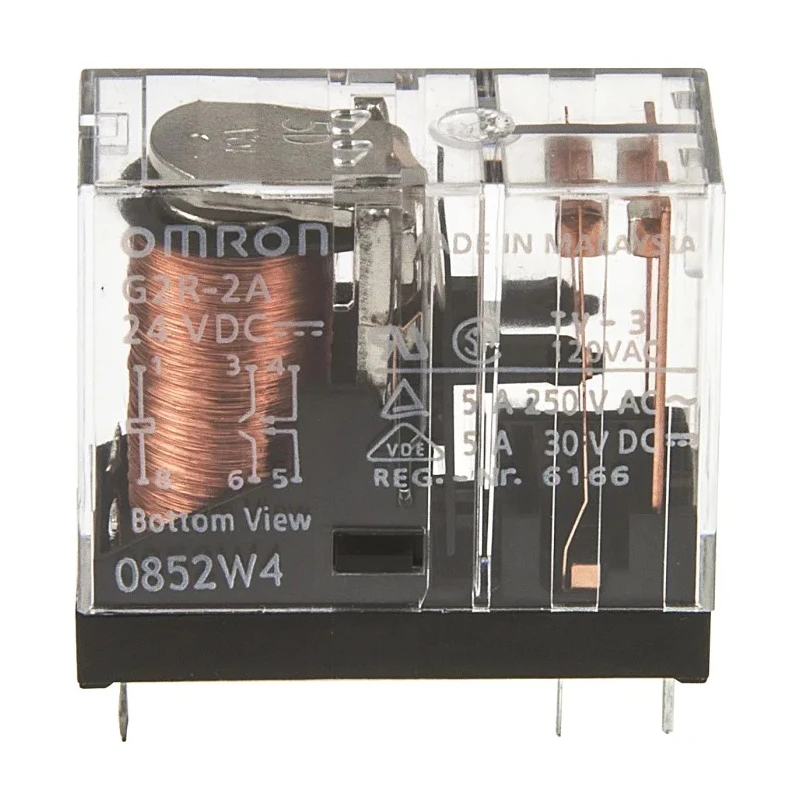

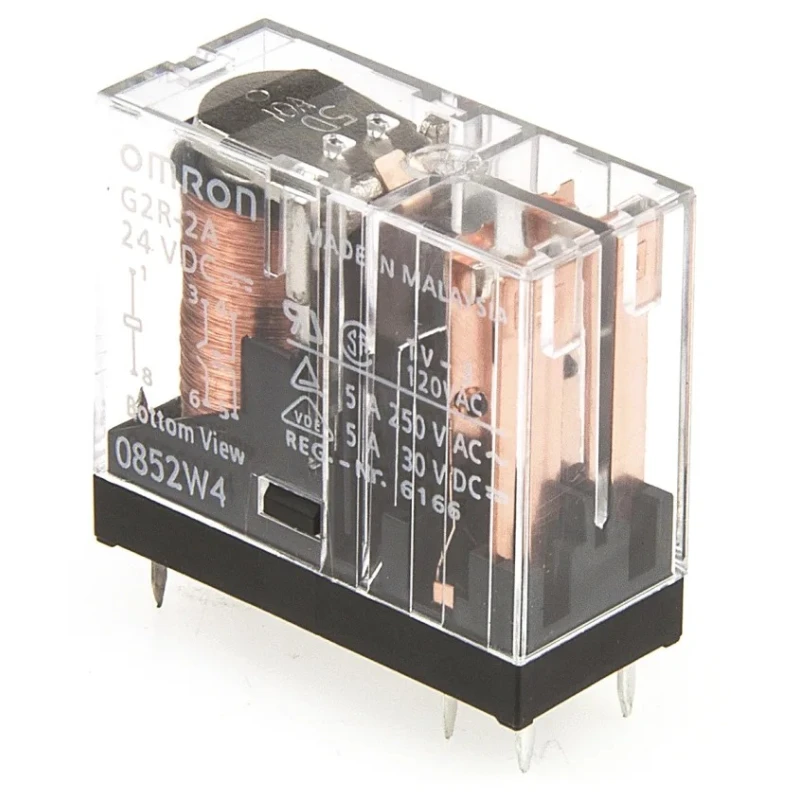

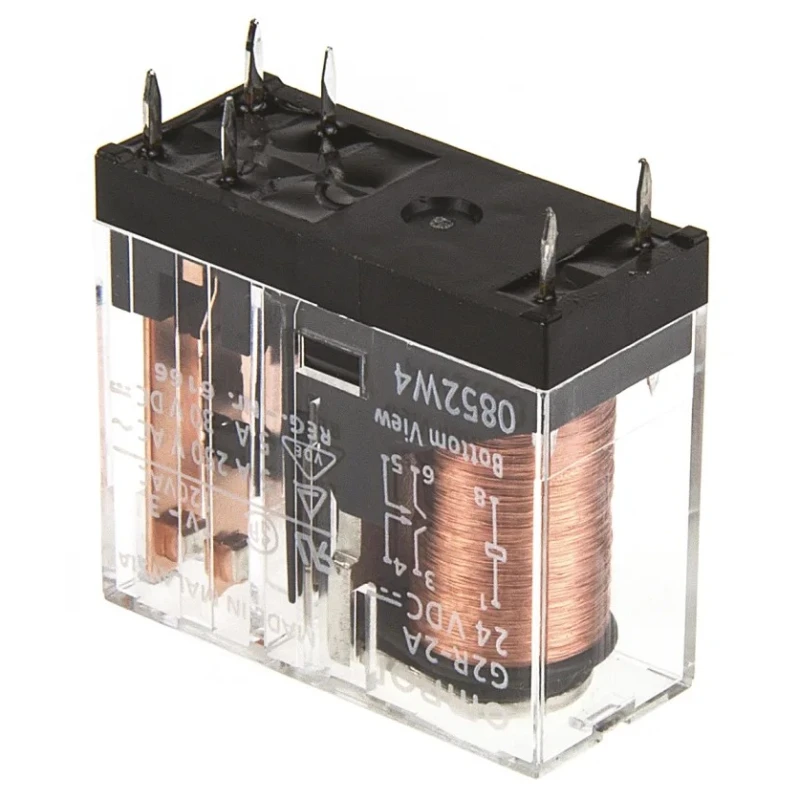

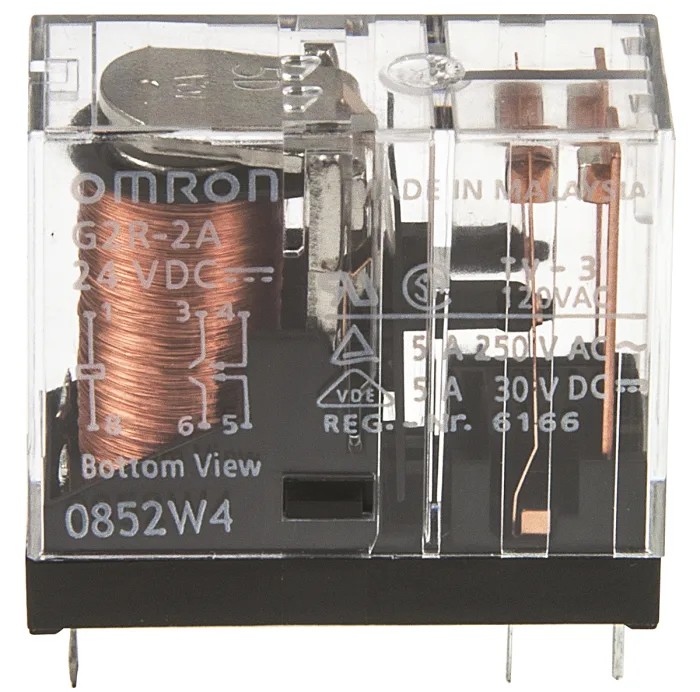

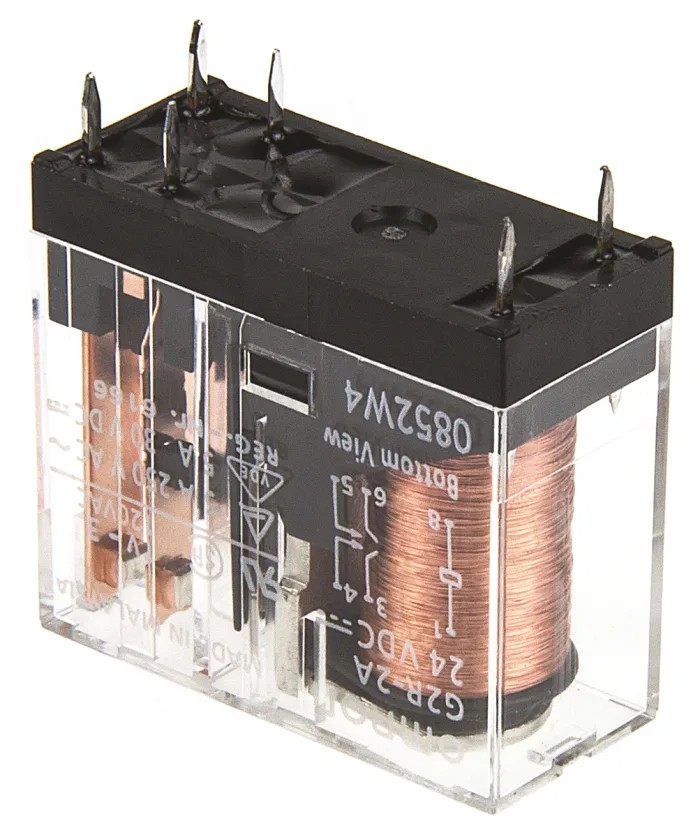

Omron PCB Power Relay DPST 24V DC Coil 5A Switching Current 125V DC 380V AC G2R-2A DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-2A DC24 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Switching Power | 150W |
Key Features
- General purpose PCB power relay suitable for domestic and commercial applications.
- Features dual pole single throw (DPST) contacts for switching loads.
- Coil voltage of 24 volts DC ensures efficient operation.
- Capable of switching up to 5 ampere currents and 125V DC, 380V AC voltages.
- Compact dimensions of 25.5mm height, 13mm width, and 29mm length for PCB mounting.
- Silver alloy contacts provide reliable conductivity and low contact resistance of 50 milliohm.
- Coil resistance approximately 1.1 kilo-ohms and coil power consumption of 0.9VA.
- Wide operating temperature range from -40°C to 70°C for versatile environments.
Product Description
Omron G2R-2A DC24 PCB Power Relay is a versatile power relay designed for a variety of industrial, commercial, and domestic electrical applications. This relay features a double pole single throw (DPST) contact configuration and operates with a 24V DC coil voltage, making it suitable for precise switching control in automated and electrical circuits.
The relay can switch currents up to 5 amperes and is rated for switching DC voltages up to 125V as well as AC voltages up to 380V, allowing safe and efficient control of varied power loads. Its compact size, with dimensions of 25.5mm in height, 13mm in width, and 29mm in length, allows easy integration onto PCBs with standard solder terminal types.
Manufactured with silver alloy contacts, the relay maintains high conductivity and low contact resistance at 50 milliohms to reduce power losses and ensure reliable switching operations. The coil has a resistance of 1.1 kilo-ohms and a power consumption of 0.9 VA, ensuring energy-efficient activation.
Engineered for durability, the relay supports a temperature operating range of -40°C to +70°C, suitable for harsh industrial conditions. It complies with RoHS directives, confirming the use of environmentally safe and non-toxic materials. The mounting style is tailored for printed circuit boards, ensuring quick and secure installation in electronic assemblies.
General purpose PCB power relay suitable for domestic and commercial applications. Double pole single throw (DPST) contact configuration. 24V DC coil voltage with coil resistance of 1.1kΩ and power consumption of 0.9 VA.
Switching current rated at 5A, supporting switching voltages of 125V DC and 380V AC. Compact size: 25.5mm height, 13mm width, 29mm length. Silver alloy contacts with low contact resistance of 50mΩ. Wide operating temperature range from -40°C to 70°C.
RoHS compliant for environmental safety. PCB mount type with solder terminals for reliable connections.
This product offers dependable performance in applications including automation systems, control panels, HVAC equipment, industrial machinery, and other electrical devices requiring controlled switching of medium power circuits on PCBs.
Explore more Power Relay products at EnvMart to find components that meet your industrial and electronic control system needs with guaranteed quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch currents up to 5 amperes.
It has a height of 25.5mm, a width of 13mm, and a length of 29mm, making it compact for PCB mounting.
The relay operates with a coil voltage of 24V DC.
It is rated for switching DC voltages up to 125V and AC voltages up to 380V.
This unit features a double pole single throw (DPST) contact configuration.
The contact resistance is rated at 50 milliohms, ensuring reliable conductivity.
The coil resistance is approximately 1.1 kilo-ohms.
The coil power consumption is 0.9 VA.
It operates effectively within a temperature range of -40°C to 70°C.
The contacts are made of silver alloy, which provides high conductivity.
Yes, it complies with RoHS directives, confirming the use of environmentally safe materials.
It has solder terminals designed for reliable connections on printed circuit boards.
