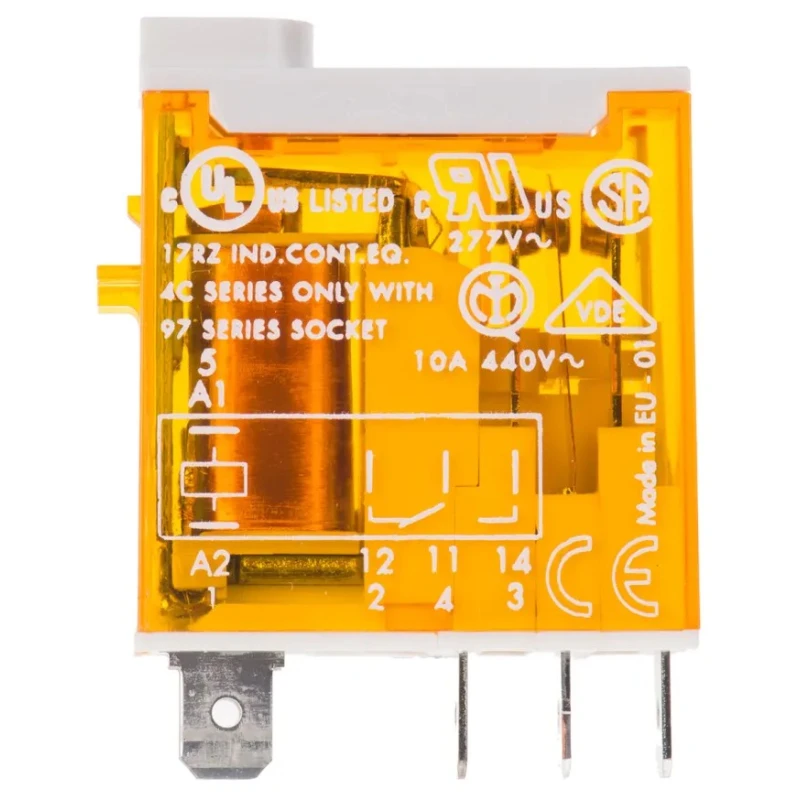

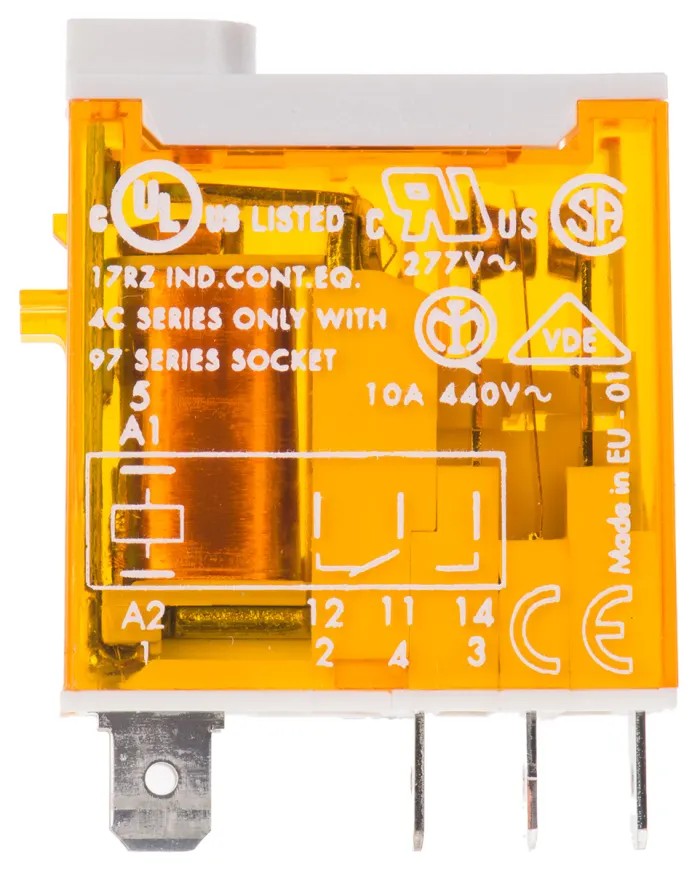

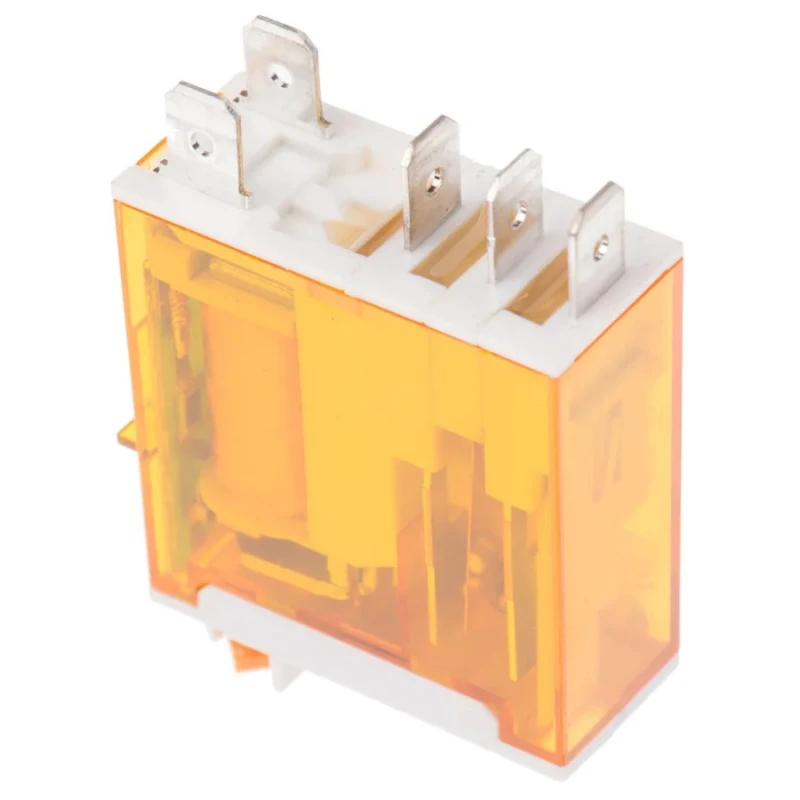

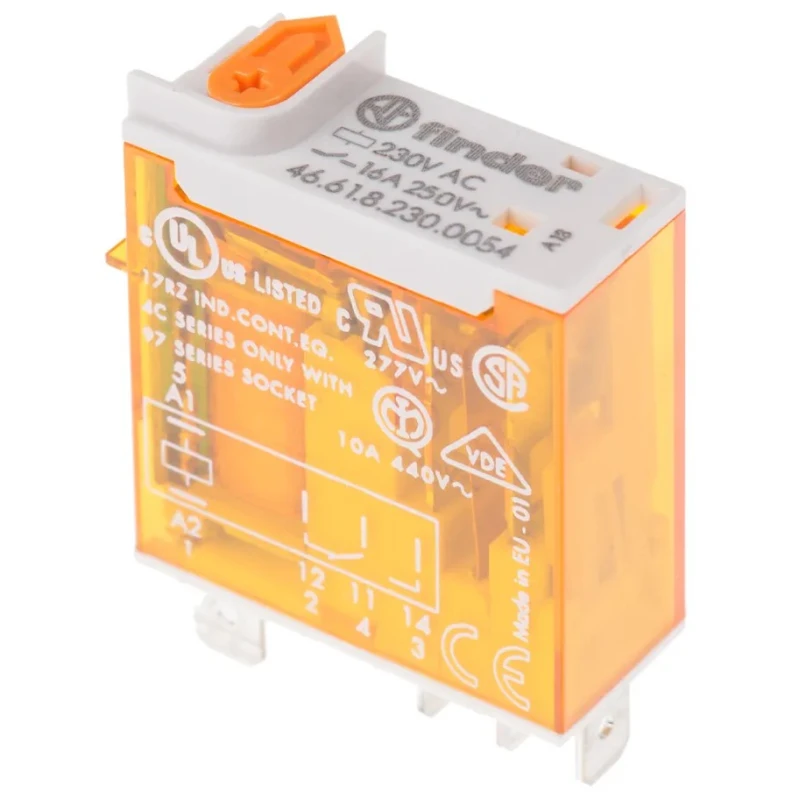

Finder PCB Power Relay 230V AC Coil 16A Switching Current SPDT 46.61.8.230.0054
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS, EAC, CE |
| Coil Resistance | 28kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 16V |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
| Finder Relay, 230V ac Coil, 16A Switching Current, SPDTBrand | Finder |
Key Features
- Operates efficiently with a coil power of 1.2W.
- Features quick connect terminals enabling easy PCB mounting.
- Capable of switching voltages up to 250V AC and currents up to 16A.
- Operates reliably within a temperature range of -40°C to 70°C.
- Complies with RoHS, EAC, and CE standards ensuring high safety and quality.
- Long operational life with a rated 100,000 cycles.
- High-performance contact material made from silver alloy (AgNi) for durability.
- Insulation between coil and contacts rated at 6kV for enhanced safety.
Product Description
Finder 46.61.8.230.0054 PCB Power Relay is a high-quality power relay designed with a 230V AC coil voltage and 16A switching current to meet industrial automation requirements. Its SPDT (Single Pole Double Throw) contact configuration provides versatile switching capabilities necessary for complex control systems.
This relay features a coil power of 1.2W ensuring energy-efficient operation. It incorporates quick connect terminals facilitating easy installation and maintenance on PCBs. The relay can switch AC voltages up to 250V and DC voltages up to 16V, ensuring compatibility with a wide range of electrical devices and circuits.
Engineered for durability, the contact material is a silver alloy (AgNi), providing excellent performance and resistance to wear over a long operational life rated at 100,000 cycles. Its robust insulation rated at 6kV between coil and contacts ensures safe operation under demanding electrical environments.
The compact form factor measures 29mm in length, 12.4mm in width, and 32.8mm in height, making it suitable for densely packed PCB designs. It operates reliably in temperature extremes from -40°C to +70°C, allowing use in harsh industrial environments.
This power relay finds applications in automation for blinds and shutters, controlling lifts and elevators, shipyard machinery operations, tunnel and road lighting systems, bottling plants, and electrical control panels for various industrial uses.
Operates with 230V AC coil voltage and 1.2W coil power. Switches currents up to 16A and AC voltages up to 250V. Equipped with quick connect PCB terminals for easy mounting. Durable silver alloy contact material for long life.
High insulation rated at 6kV between coil and contacts. Wide operating temperature range from -40°C to +70°C. Complies with RoHS, EAC, and CE directives for safety and quality. Compact dimensions suitable for compact PCB assemblies.
Reliable switching for automation, industrial, and control system applications. Explore our Electronics & Electricals category for more Power Relays and automation components from leading brands like Finder at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC.
This model can switch currents up to 16A.
The insulation between the coil and contacts is rated at 6kV.
The relay measures 29mm in length, 12.4mm in width, and 32.8mm in height.
It operates reliably within a temperature range of -40°C to +70°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The contact material is made from a silver alloy (AgNi).
It is designed for PCB mounting with quick connect terminals for easy installation.
It complies with RoHS, EAC, and CE standards.
The coil power of this relay is 1.2W.
It can switch AC voltages up to 250V and DC voltages up to 16V.
This relay is suitable for automation in blinds and shutters, lifts, shipyard machinery, and electrical control panels, among others.
