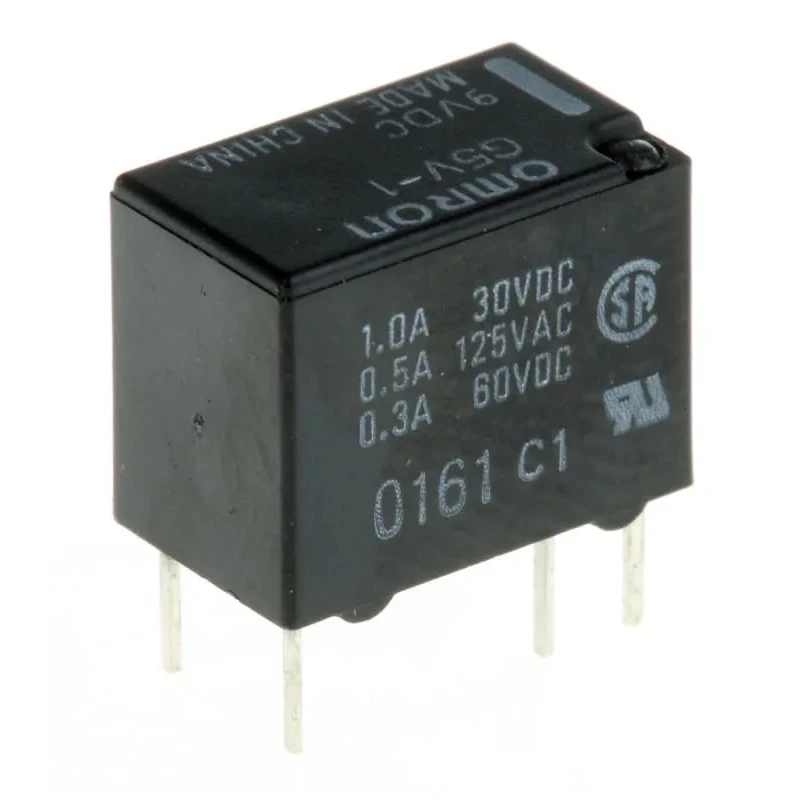

Omron Ultra-Miniature SPDT PCB Relay 9V DC Coil 1A Switching Current G5V-1 DC9
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G5V-1 DC9 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5V |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 540Ω |
| Coil Voltage | 9V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 150mW |
Key Features
- High sensitivity with 150mW nominal coil power consumption.
- Fully sealed construction offers excellent environmental resistance.
- Silver alloy contact material ensures durable, low resistance contacts.
- Supports switching currents from 1mA to 1A for wide application range.
- Operates reliably between -40°C and 70°C ambient temperatures.
- Compact design with 50mm length, 15mm height, and 10mm width.
- Screw terminal type provides secure PCB mounting.
- Complies with RoHS and FCC Part 68 for quality and safety.
Product Description
Omron G5V-1 DC9 ultra-miniature SPDT PCB relay features a 9V DC coil and supports a 1A switching current, making it suitable for precise control in signal circuits. This relay has a fully sealed construction that protects against environmental contaminants, ensuring reliable performance in diverse industrial and automation applications.
It offers a high sensitivity with a nominal coil power consumption of only 150mW, supporting switching currents from 1mA up to 1A. The relay uses silver alloy contacts for enhanced electrical conductivity and durability while maintaining a low contact resistance of 100mΩ. The device supports switching voltages up to 60V DC and 240V AC, providing versatility across various electrical requirements.
The relay maintains optimal operation across a temperature range from -40°C to 70°C, and its compact form factor (50mm length, 15mm height, 10mm width) allows easy integration into PCB assemblies with screw terminals for secure mounting. It fully complies with RoHS environmental standards and FCC Part 68 for coil to contact insulation, ensuring safe and eco-friendly operation.
Typical applications include use in industrial automation systems, electrical equipment, HVAC control, manufacturing processes, and general signal conditioning where reliable switching control is critical. This G5V series relay is designed to deliver long-lasting, precise switching performance in compact spaces.
High sensitivity with 150mW nominal coil power consumption. Fully sealed construction provides environmental resistance. Silver alloy contact material for durability and low resistance. Supports switching currents from 1mA to 1A.
Suitable for operating temperatures from -40°C to 70°C. Compact size and PCB mounting with screw terminals. Meets RoHS and FCC Part 68 standards. Compatible with switching voltages up to 60V DC and 240V AC. Ideal for industrial, automation, and electrical control applications.
Explore the range of Omron relays to find reliable components suited for your electronic design and signal switching needs. Connect with EnvMart for quality Power Relays from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current capacity of up to 1A.
This model has a length of 50mm, a height of 15mm, and a width of 10mm.
It operates with a coil voltage of 9V DC.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
It operates reliably between -40°C and 70°C.
The contacts are made of silver alloy, ensuring low resistance and durability.
The relay has a nominal coil power consumption of 150mW.
It supports switching voltages up to 60V DC and 240V AC.
This model features screw terminals for secure PCB mounting.
It complies with RoHS environmental standards and FCC Part 68 for coil to contact insulation.
Typical applications include industrial automation systems, electrical equipment, HVAC control, and general signal conditioning.
The contact resistance is rated at 100mΩ, ensuring efficient electrical conductivity.
