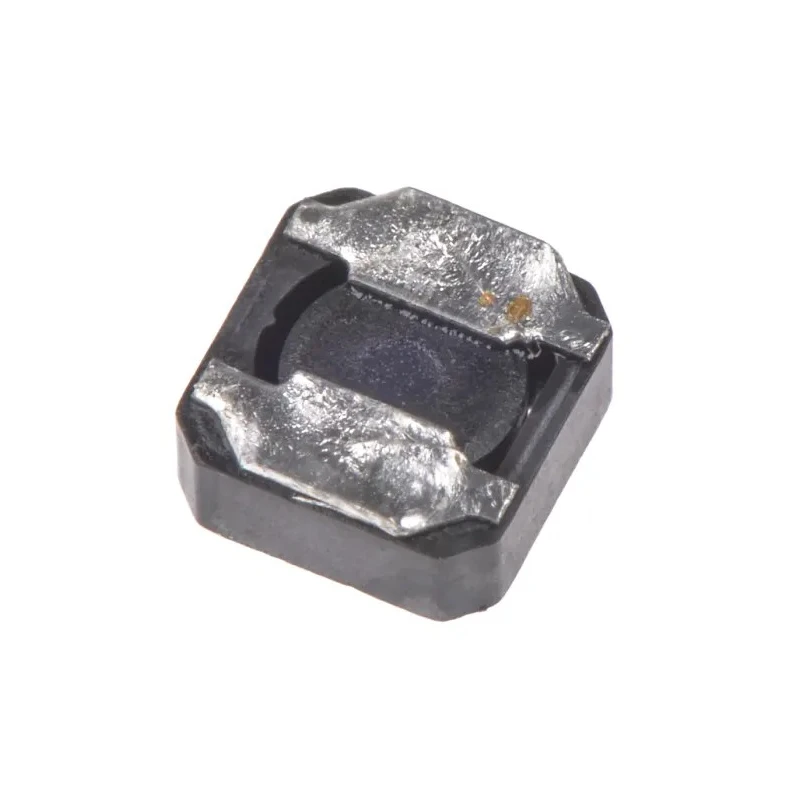

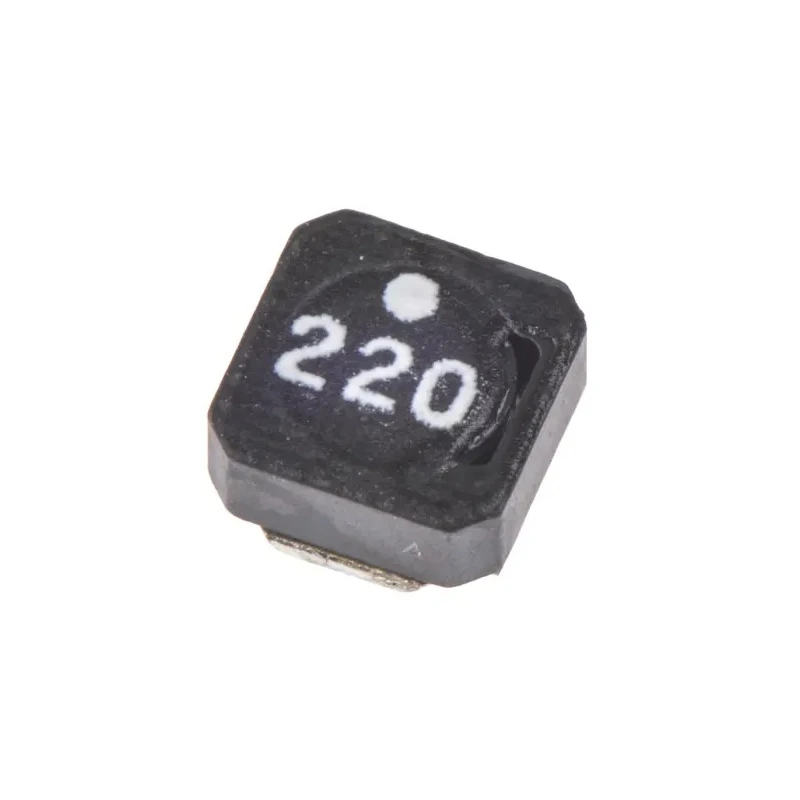

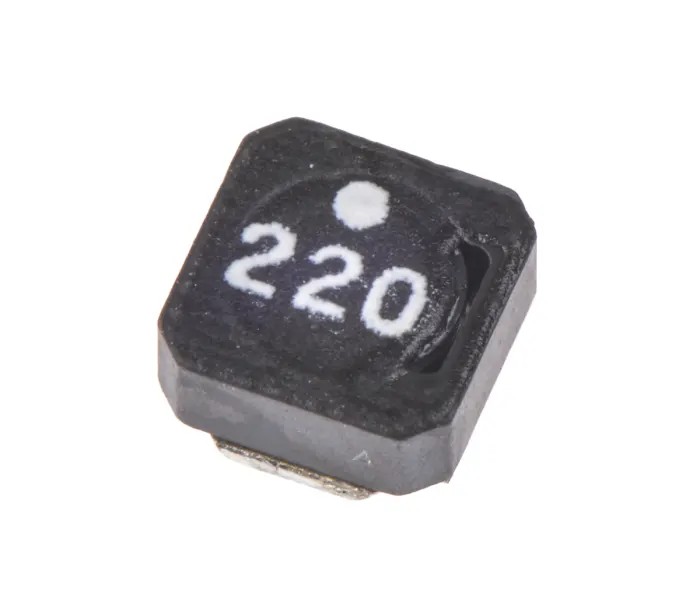

TDK Wirewound Shielded Surface Mount Inductor 22 μH ±20/±30% 800 mA IDC Ferrite Core 4020 VLCF4020T-220MR56
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 4.3mm |
| Model | VLCF4020T-220MR56 |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 4020 |
| Maximum DC Current | 800mA |
| Maximum DC Resistance | 431mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound construction ensures reduced electromagnetic interference.
- Inductance of 22 microhenries with industry standard tolerance values.
- Maximum DC current rating of 800 mA supports moderate current flow.
- Compact 4020 package size with dimensions 4.3mm length, 2mm height, and 4mm depth.
- Operating temperature range from -40°C to 105°C suitable for varied environments.
- Surface mount termination style allowing automated PCB assembly.
- Moulded ferrite core construction enhances durability and performance.
- RoHS compliant material and manufacturing standards.
Product Description
TDK VLCF4020T-220MR56 is a high-quality shielded wirewound surface mount inductor designed for portable DC to DC converter lines and other electronic applications requiring stable inductance and low electromagnetic interference. Featuring a ferrite core and a compact 4020 package case, this inductor delivers an inductance of 22 μH with a tolerance of ±20/±30%, suitable for demanding industrial and commercial electronics.
The device supports a maximum DC current of 800 mA, making it ideal for moderate power circuits. Its magnetic shield construction greatly minimizes EMI, enhancing the reliability of sensitive electronics. The inductor measures 4.3mm in length, 2mm in height, and 4mm in depth, enabling space-saving designs.
Operating within a temperature range of -40°C to 105°C, the component is moulded for additional protection and robustness. Its surface mount termination style supports automated insertion into modern PCB assemblies, improving production efficiency. Compliance with RoHS directives ensures environmentally responsible manufacture and use.
With a maximum DC resistance of 431 milliohms, power losses are minimized, maximizing circuit efficiency. This product is suited for industrial manufacturing, electronic component assembly, and applications in telecommunications and computing hardware where precision inductors are required.
Magnetically shielded wirewound construction reduces electromagnetic interference. Compact 4020 size package for efficient PCB layout. Ferrite core ensures stable inductance performance. Wide operating temperature range for harsh environmental conditions.
Surface mount style facilitates automated manufacturing processes. RoHS compliant ensuring safe environmental standards. Maximum DC current of 800 mA for reliable circuit operation. Low maximum DC resistance improves energy efficiency.
Perfect for applications in portable DC to DC converters and general electronic circuits. Explore more Surface Mount Inductors and electronic components at EnvMart for your industrial, commercial, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 22 μH with a tolerance of ±20/±30%.
It supports a maximum DC current rating of 800 mA, making it suitable for moderate power circuits.
This model measures 4.3 mm in length, 2 mm in height, and 4 mm in depth.
The operating temperature range is from -40°C to 105°C, allowing it to function in varied environments.
It features a surface mount termination style, which facilitates automated PCB assembly.
The inductor is constructed with a ferrite core, which enhances its performance and stability.
It is packaged in tape and reel format, suitable for automated manufacturing processes.
This inductor complies with RoHS directives, ensuring environmentally responsible manufacturing.
The maximum DC resistance is 431 milliohms, which helps minimize power losses and improve circuit efficiency.
It is suitable for applications in portable DC to DC converters and general electronic circuits requiring stable inductance.
This model belongs to the VLCF series of inductors from TDK.
The magnetically shielded wirewound construction significantly reduces electromagnetic interference, enhancing the reliability of sensitive electronics.
