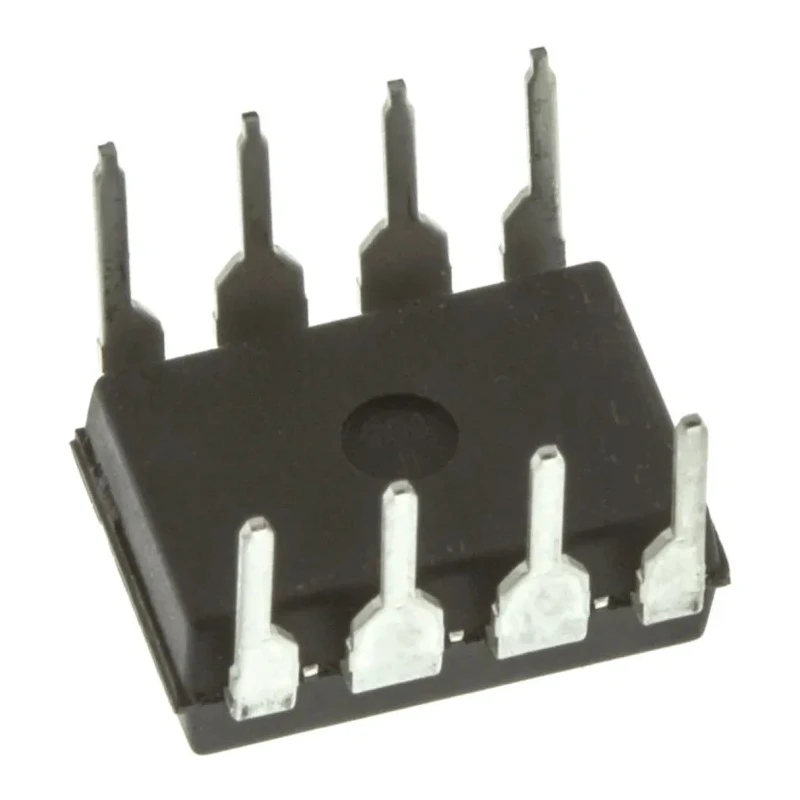

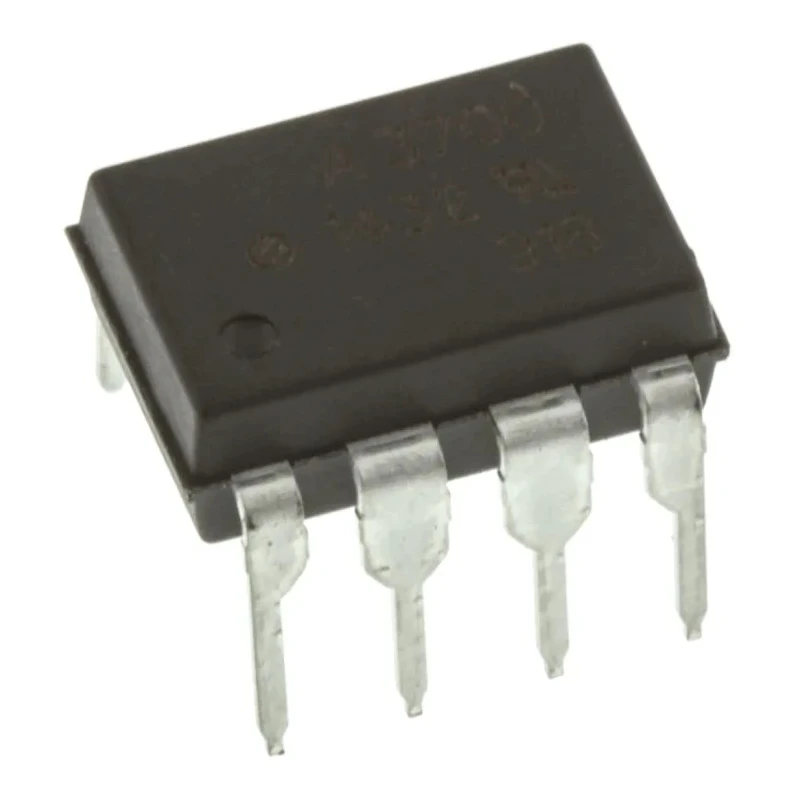

Broadcom AC/DC Input Optocoupler Through Hole 8-Pin PDIP HCPL-3700-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-3700-000E |
| Mount Type | Through Hole |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | VDE, UL, CSA |
| Maximum Forward Voltage | 0.59V |
| Number of Pins | 8 |
| Input Current Type | AC/DC |
| Typical Rise Time | 20μs |
| Typical Fall Time | 0.3μs |
Key Features
- The device features a maximum forward voltage of 0.59V for efficient input performance.
- It has a typical rise time of 20 microseconds and a typical fall time of 0.3 microseconds for responsive switching.
- The optocoupler supports a maximum input current of 50mA, suitable for varied electrical applications.
- It offers an isolation voltage of 3.75kVrms, ensuring reliable electrical isolation between input and output.
- The package type is PDIP with 8 pins and supports a single channel configuration.
- Operational temperature range spans from -40°C to 85°C, accommodating industrial environments.
- Complies with standards and approvals including VDE, UL, and CSA with UL E55361 certification.
- The series designation is HCPL, indicating compatibility with similar devices in industrial applications.
Product Description
Broadcom HCPL-3700-000E is an AC/DC input optocoupler designed for through hole mounting in an 8-pin PDIP package. It enables electrical isolation between input and output circuits by converting AC or DC input currents into a logic output suitable for interfacing with digital systems.
This optocoupler features a maximum forward voltage of 0.59V and supports a maximum input current of 50mA, making it highly efficient for signal isolation applications. Typical rise and fall times are 20μs and 0.3μs respectively, ensuring fast and reliable switching behavior.
The device offers an isolation voltage rating of 3.75kVrms, providing robust protection in industrial, laboratory, HVAC, manufacturing, and power electronics environments. It operates reliably in a temperature range from -40°C to 85°C, supporting harsh operating conditions.
Packaged in a standard 8-pin PDIP, the HCPL-3700-000E is compatible with through hole PCB mounting techniques commonly used in electronic assemblies. It is part of the HCPL series by Broadcom, known for high-quality optoelectronic components.
Maximum forward voltage: 0.59V. Input current type: AC/DC. Maximum input current: 50mA. Typical rise time: 20µs. Typical fall time: 0.3µs. Isolation voltage: 3.75kVrms. Operating temperature range: -40°C to 85°C. Standards: VDE, UL, CSA.
This optocoupler is ideal for industrial automation, power management systems, signal isolation in electrical controls, and other electronic circuit applications requiring reliable AC/DC input to logic signal conversion and isolation.
Explore more Optocoupler and electronic components solutions from Broadcom and similar leading semiconductor brands here at EnvMart to meet your industrial and design requirements.
