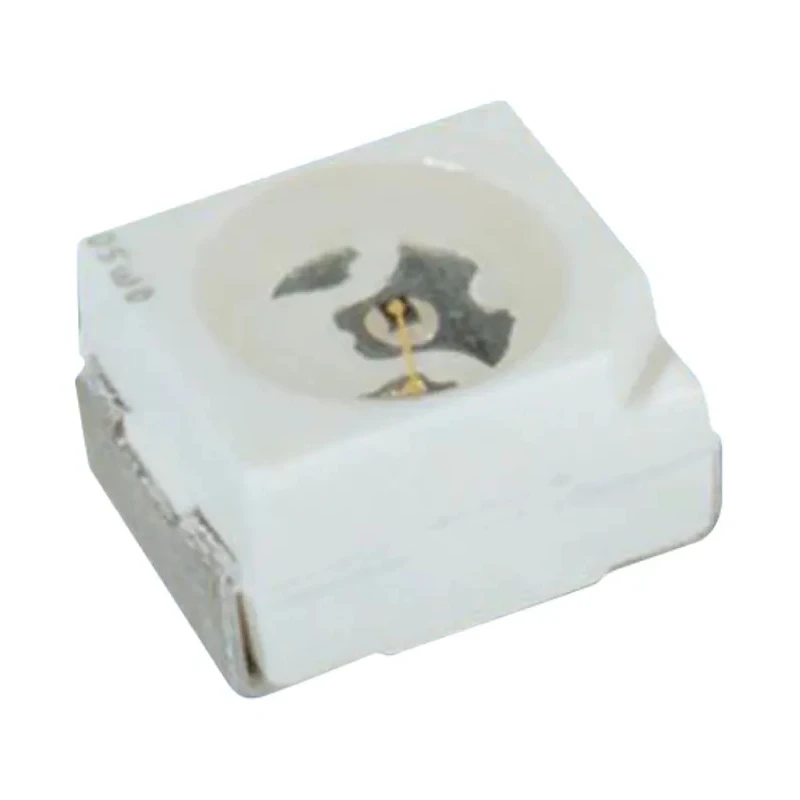

Broadcom 1.9 V Red LED PLCC 2 Surface Mount High Brightness LED HSMZ-A100-T70J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMZ-A100-T70J1 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 350 mcd |
| Maximum Power Dissipation | 63mW |
| Lens Dimensions | 3.2 x 2.8 x 1.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- The LED features a red colour with 626nm dominant wavelength and 350 mcd luminosity.
- It has a maximum forward current rating of 30mA ensuring reliable operation.
- Comes in a 3.2 x 2.8 x 1.8 mm round lens PLCC 2 package with white lens finish.
- Wide 120° viewing angle suitable for back-lighting and signage illumination.
- Surface mount type with tape & reel packaging ideal for automated assembly.
- Meets RoHS environmental standards for compliance.
- Part of the HSMx series designed for harsh interior automotive and industrial use.
- Flat-topped emitting surface allows efficient mating with light pipes.
Product Description
Broadcom HSMZ-A100-T70J1 is a high reliability red LED designed for surface mount applications. With a forward voltage of 1.9 V and a maximum power dissipation of 63mW, this PLCC 2 package LED provides bright illumination with a dominant wavelength of 626nm and a luminosity of 350 mcd. Its 120° wide viewing angle and flat-topped emitting surface make it ideal for use in automotive interior lighting, industrial signage, and back-lighting applications.
The LED is built with AlGaInP and InGaN dice technologies, providing superior brightness and efficiency. The round lens with dimensions 3.2 x 2.8 x 1.8 mm has a white finish and is designed to fit light pipes efficiently. The product comes packaged in tape & reel suitable for automated production lines, facilitating seamless integration into manufacturing processes.
The HSMx series from Broadcom is engineered to meet high standards of performance and durability under harsh environmental conditions. It meets RoHS compliance requirements, ensuring environmentally safe usage in diverse electronic assemblies.
This new LED component is perfect for industrial, automotive, and commercial electronics manufacturing, offering reliable light output in a compact surface mount form factor. Red LED with 1.9 V forward voltage and 63mW power dissipation.
Maximum forward current of 30mA for dependable operation. 120° wide viewing angle for broad illumination coverage. White lens finish in 3.2 x 2.8 x 1.8 mm PLCC 2 package. Tape & reel packaging for efficient automated assembly.
RoHS compliant for environmental safety. Suitable for harsh interior automotive and industrial use. High brightness using AlGaInP and InGaN die technology. Flat-topped surface for effective light pipe coupling. Part of the quality Broadcom HSMx component series.
Explore more Broadcom LEDs and electronic components on EnvMart to find solutions tailored to your industrial, laboratory, automotive, and manufacturing lighting requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of the Broadcom HSMZ-A100-T70J1 LED is 1.9 V.
This model has a maximum forward current rating of 30 mA, ensuring reliable operation.
The luminosity of the HSMZ-A100-T70J1 is 350 mcd.
The dominant wavelength of this red LED is 626 nm.
The lens dimensions of this LED are 3.2 x 2.8 x 1.8 mm.
It features a wide viewing angle of 120°.
The LED is packaged in tape & reel, making it suitable for automated assembly.
The maximum power dissipation for this model is 63 mW.
This LED is designed for surface mounting.
Yes, it meets RoHS environmental standards for compliance.
The HSMZ-A100-T70J1 is part of the HSMx series, designed for high performance in harsh environments.
This model is suitable for automotive interior lighting, industrial signage, and back-lighting applications.
