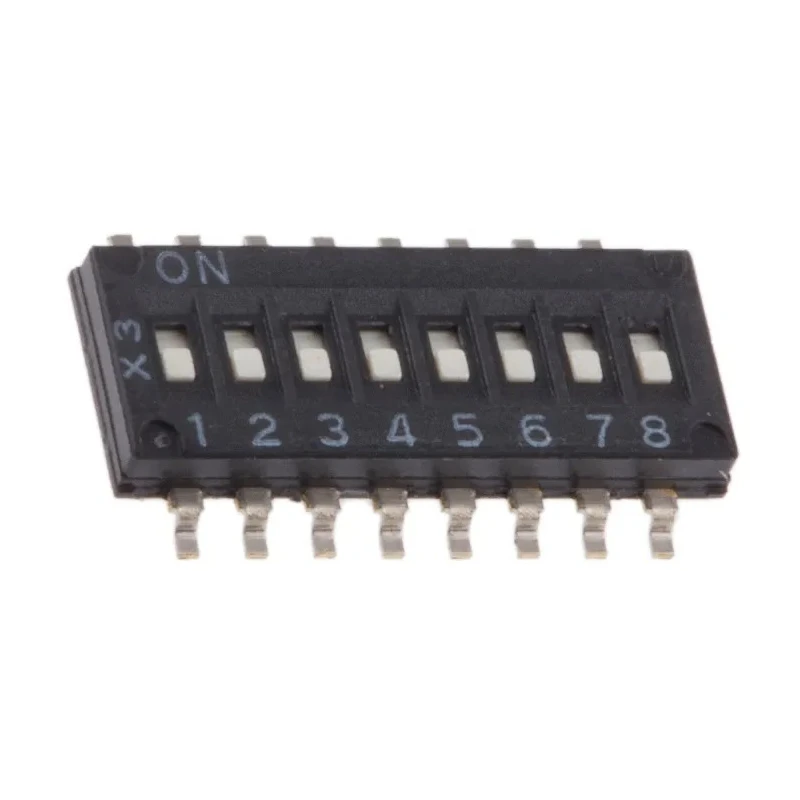

Omron Rotary Coded Slide DIP Switch Ultra Low Profile Half Pitch Surface Mount A6H-8101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | A6H-8101 |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ |
| Mechanical Life | 1000 operations |
Key Features
- Ultra low profile of 1.55 mm reduces overall height footprint.
- Half pitch design decreases mounting space by 63% compared to standard pitch switches.
- Surface mount style suitable for modern electronic assembly.
- Contact resistance measured at 200 milliohms ensures reliable electrical performance.
- Insulation resistance minimum 100 megaohms at 250 V DC for safety and durability.
- Mechanical life rated at 1000 switching operations for reliable usage.
- Available with or without tape seal depending on assembly requirements.
- RoHS compliant, meeting environmental and safety standards.
Product Description
Omron A6H-8101 Rotary Coded Slide DIP Switch is a precision electrical component designed for use in advanced electronics and automation systems. Featuring a slide actuator type, it boasts an ultra low profile of just 1.55 mm and half pitch surface mount construction, significantly reducing PCB mounting space by 63% compared to conventional devices.
This rotary coded DIP switch is engineered for reliable industrial and commercial applications, including electronic control systems, communication devices, instrumentation, and embedded control units. Its contact resistance of 200 mΩ ensures stable electrical conduction, while the insulation resistance of 100 MΩ minimum at 250 V DC safeguards against electrical leakage and interference.
The switch’s mechanical life of 1000 cycles provides dependable switching action under repetitive use conditions. It is available in versions with or without tape seal to accommodate diverse manufacturing processes.
Designed to meet RoHS directives, the A6H-8101 supports environmentally responsible manufacturing. Its dual-in-line package suits surface mount technology assembly lines enabling efficient mass production.
Ultra low profile height minimizes space on printed circuit boards. Half pitch design reduces board area requirements by over half. Reliable sliding actuator mechanism ensures precise switch activation. Low contact resistance guarantees optimal signal integrity.
High insulation resistance provides safety against unintended conduction paths. Durable mechanical endurance rated for 1000 operations. Available with tape seal for enhanced protection during handling and soldering. Compliance with RoHS requirements for hazardous substance restriction.
This switch is ideal for use in industrial automation control panels, instrumentation interfaces, and other electronic assemblies where space optimization and reliable switching are critical. Its robust electrical and mechanical specifications ensure long-lasting performance in challenging environments.
For designers and engineers requiring surface mount rotary coded DIP switches with ultra low profiles, the Omron A6H-8101 delivers excellent performance coupled with compact form factor suitable for modern PCB layouts.
Explore more products in the Rotary Coded DIP Switch category at EnvMart for comprehensive automation and electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an ultra low profile height of just 1.55 mm, which helps reduce the overall height footprint on printed circuit boards.
The half pitch design of the A6H-8101 reduces mounting space by 63% compared to standard pitch switches, making it ideal for compact PCB layouts.
The contact resistance of the A6H-8101 is measured at 200 milliohms, ensuring reliable electrical performance.
This model has an insulation resistance of a minimum of 100 megaohms at 250 V DC, providing safety against electrical leakage.
The mechanical life of this switch is rated for 1000 operations, ensuring dependable usage under repetitive conditions.
Yes, this switch is RoHS compliant, meeting environmental and safety standards for hazardous substance restriction.
The A6H-8101 features a slide actuator type, which allows for precise activation of the switch.
Yes, this model is engineered for reliable use in electronic control systems, communication devices, and instrumentation.
The A6H-8101 is available in versions with or without tape seal, depending on assembly requirements.
The A6H-8101 is manufactured in India.
The surface mount style of the A6H-8101 is suitable for modern electronic assembly, enabling efficient mass production.
