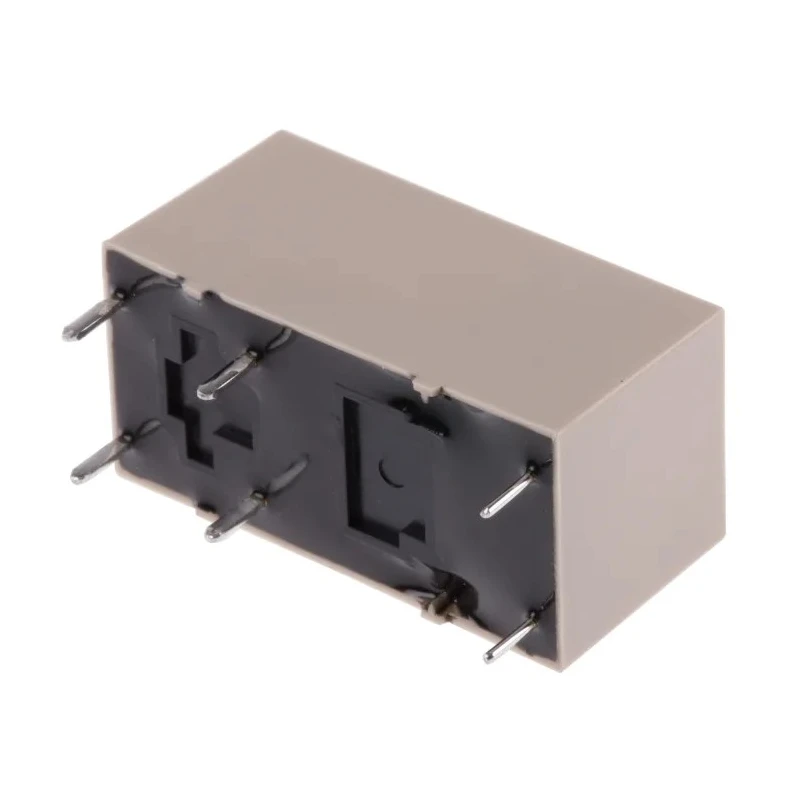

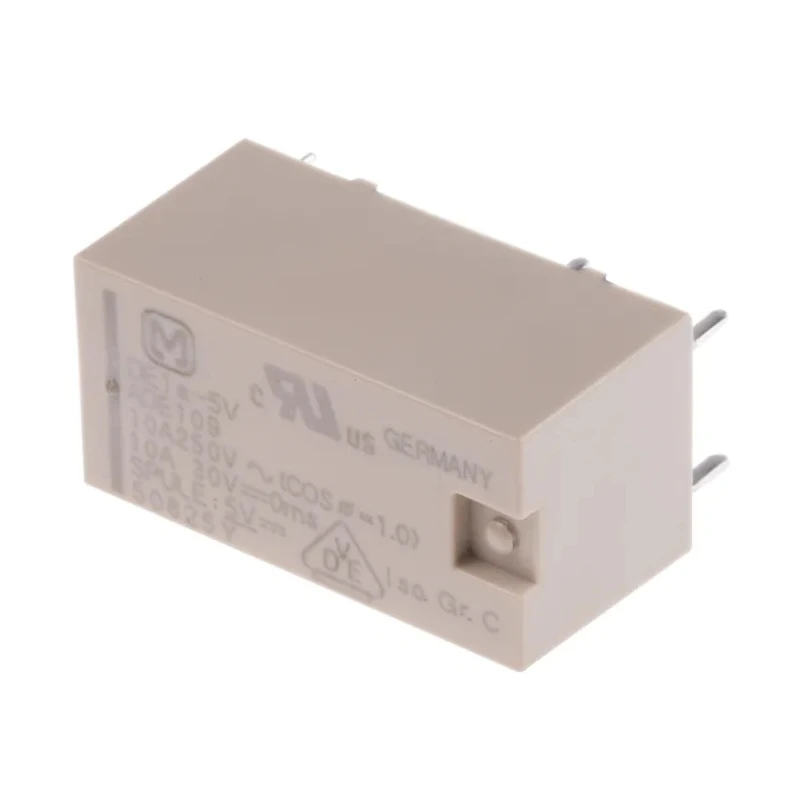

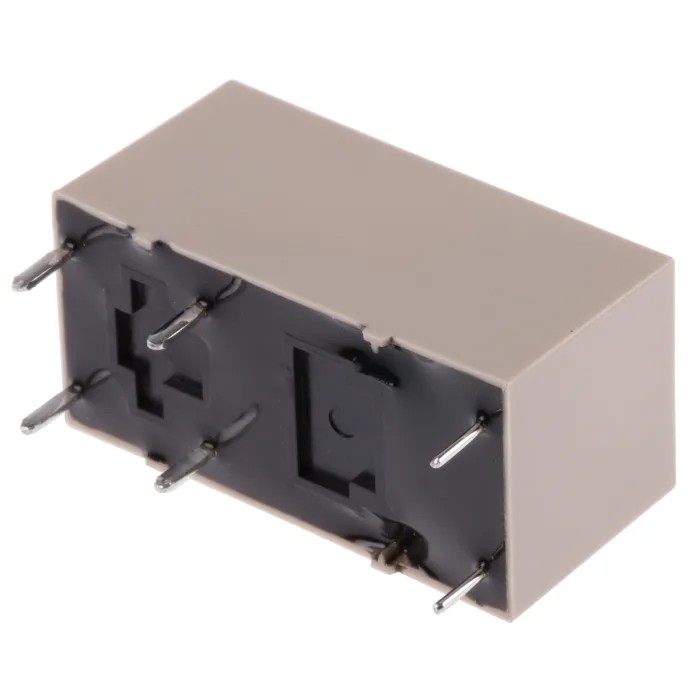

Panasonic DE Series Power Relay PCB Mount Through Hole Terminal SPST Contact Configuration DE1A5D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 12.5mm |
| Length | 25mm |
| Model | DE1A5D |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | DE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
Key Features
- Compact DE series power relay suitable for PCB mounting applications.
- Features through hole terminal type for secure circuit board connection.
- Single pole single throw (SPST) contact configuration for simple switching needs.
- Compact dimensions 25 mm length, 12.5 mm width and height ensure space-efficient design.
- RoHS compliant ensuring adherence to environmental and safety standards.
- Provides galvanic isolation for safe operation in control circuits.
- Enhanced safety with linked contacts preventing simultaneous closing of breaking contacts.
- Ideal for switching strip lights, air conditioning, and other automation applications.
Product Description
Panasonic DE1A5D DE Series power relay is a compact, PCB mount power relay engineered for industrial and automation electronics applications. It features a through hole terminal type and single pole single throw (SPST) contact configuration for reliable on/off switching in control systems.
Built to operate safely within a temperature range of -40°C to 70°C, this relay offers galvanic isolation ensuring 8 mm leakage path and safe cut-off between coil and contacts. The relay’s linked contacts enhance operational safety by preventing malfunctions, as breaking contacts cannot close simultaneously.
With physical dimensions of 25 mm length, 12.5 mm width and height, it is well-suited for space-constrained PCB circuits. It complies with RoHS standards, supporting environmental sustainability and regulatory compliance.
This DE series relay is commonly used for direct control of strip lighting, air conditioning equipment, and other industrial automation controls where precise and safe switching is required.
Compact DE series power relay provides efficient PCB mounting capability. Through hole terminals ensure secure electrical connection. SPST contact configuration suitable for on/off switching applications. Wide operating temperature ranging from -40°C to 70°C.
RoHS certification for environmental compliance. Electrical isolation between coil and contacts for enhanced safety. Linked contacts prevent simultaneous contact closing to avoid malfunctions. Applications include lighting control and HVAC automation systems.
Choose Panasonic Power Relays from EnvMart for reliable, safe and compliant switching components for industrial, automation, laboratory, and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DE1A5D relay features a single pole single throw (SPST) contact configuration, suitable for simple on/off switching applications.
This model has compact dimensions of 25 mm in length, 12.5 mm in width, and 12.5 mm in height, making it suitable for space-constrained PCB circuits.
The relay operates safely within a temperature range of -40°C to 70°C, allowing it to function effectively in various environments.
It is designed for PCB mounting and features through hole terminals for secure electrical connections on circuit boards.
Yes, this relay complies with RoHS standards, ensuring adherence to environmental and safety regulations.
The relay provides galvanic isolation between the coil and contacts, and features linked contacts that prevent simultaneous closing of breaking contacts, enhancing operational safety.
This model is commonly used for direct control of strip lighting, air conditioning equipment, and other industrial automation controls where safe switching is required.
The DE1A5D relay is manufactured in India.
The maximum operating temperature for the DE1A5D relay is 70°C.
The minimum operating temperature for this relay is -40°C.
The through hole terminal type ensures a secure connection to the PCB, which is essential for reliable operation in electronic circuits.
This relay is part of the DE series, which is designed for industrial and automation electronics applications.
