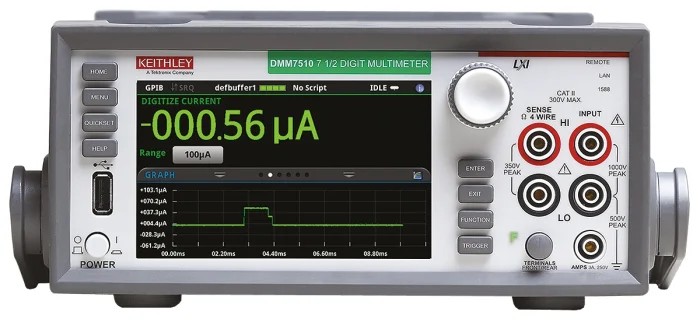

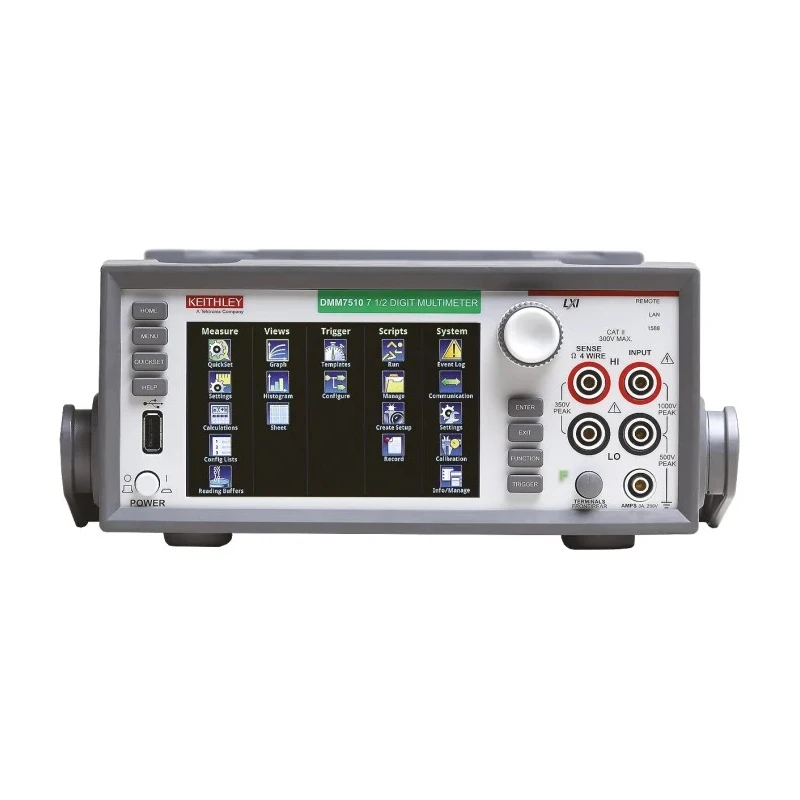

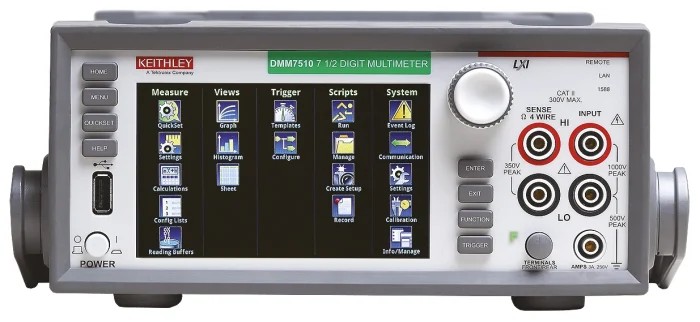

Keithley DMM7510 Bench Digital Multimeter True RMS, 10 A AC/DC, 700 V AC, 7.5 Digit High Resolution DMM7510

Keithley DMM7510 bench digital multimeter combines a 7.5 digit precision DMM, a graphical touchscreen display, and a high-speed sampling digitizer to create an advanced multimeter for precise electrical measurements. It supports True RMS measurement of AC current and voltage, with a maximum of 10 A AC/DC current and 700 V AC voltage, suitable for detailed testing and analysis.

This instrument offers 14 PPM one-year basic DC voltage accuracy, with sensitive ranges down to 100 mV, 1Ω, and 10 μA, enabling accurate low-level signal detection. The offset-compensated ohms measurement with four-wire and dry circuit functions enhances accuracy in resistance measurement.

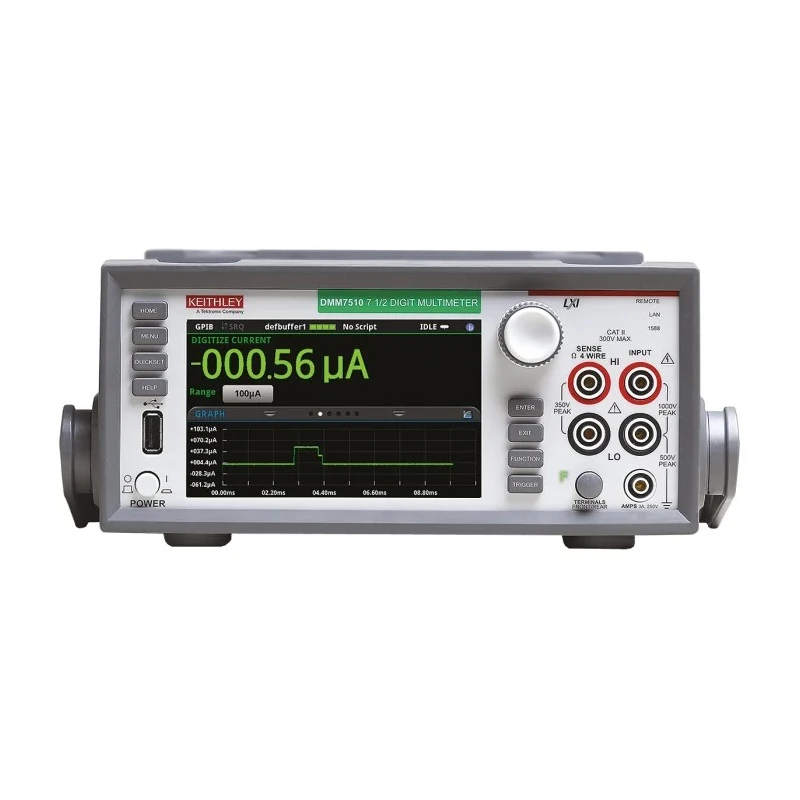

The integrated 1 MS/s digitizer captures detailed waveform profiles and transient signals, allowing comprehensive device characterization. Large internal memory supports extensive data storage for long-term stability studies and environmental or life testing.

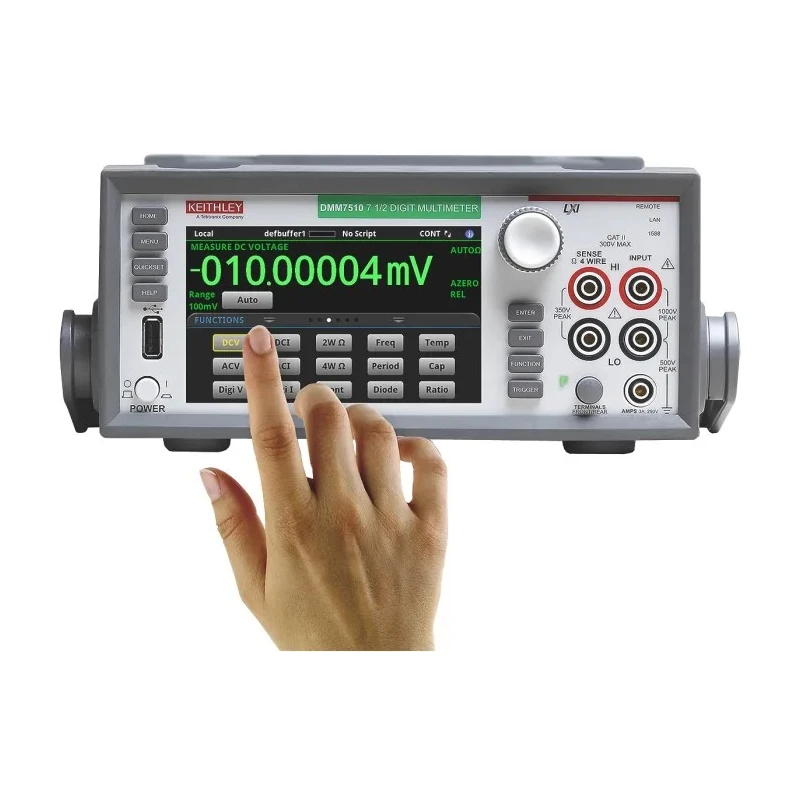

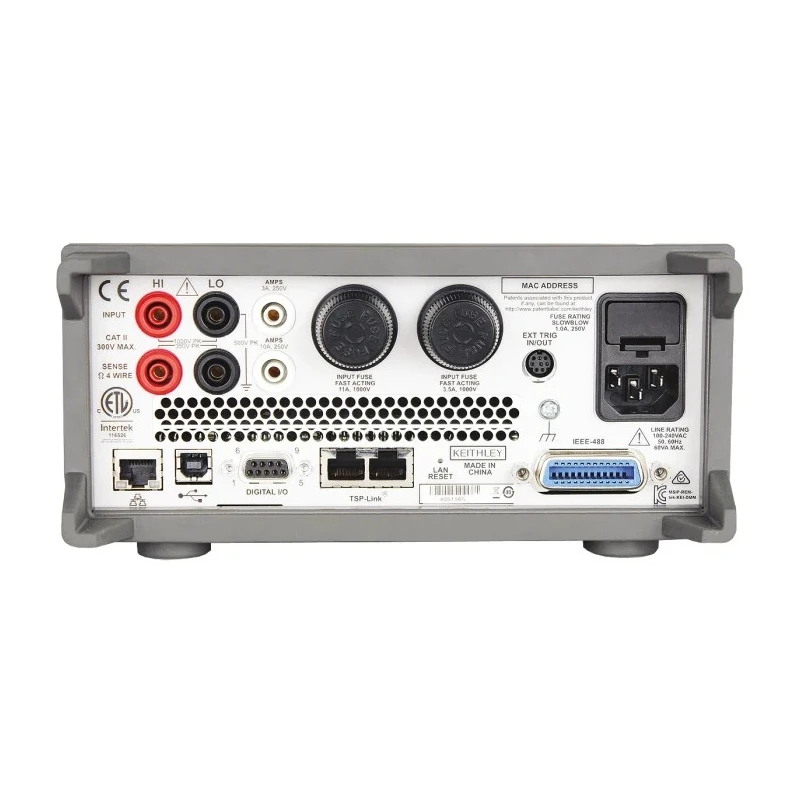

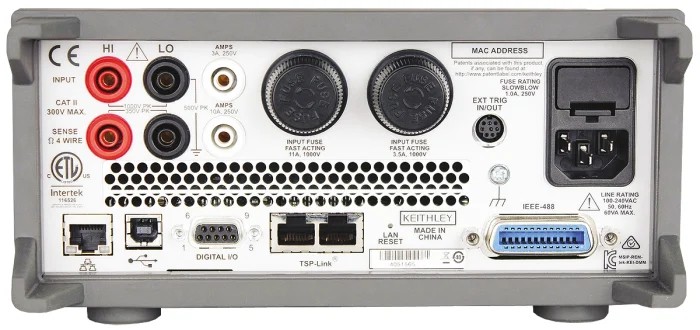

Operated via a 5-inch high-resolution touchscreen interface, the device delivers user-friendly interaction. Connectivity includes front panel USB memory port along with GPIB, USB (TMC), and LAN (LXI) for seamless integration into automated test environments.

The instrument supports auto-calibration to maintain measurement accuracy and reliability. Measuring 425 mm by 255 mm by 106 mm and weighing 4.1 kg, it is a robust choice for industrial, laboratory, manufacturing, and research applications requiring thorough electrical measurements.

Typical use cases include precision current and voltage measurement in research labs, quality control in manufacturing processes, and environmental testing scenarios. The product is made in China and supplied new.

Accessories available include various test lead kits, Kelvin probes, trigger cables, and interface adapters to extend functionality. Explore more high-precision measuring instruments and related accessories in the EnvMart Industrial Machines & Instruments category.

Features 14 PPM basic DC voltage accuracy for precise readings. Capable of sensitive measurement ranges: 100 mV, 1Ω, and 10 μA. Includes low resistance measurement with offset-compensated ohms, four-wire, and dry circuit functions.

Equipped with 1 MS/s digitizer for capturing waveforms and transients. Large internal memory buffer enables extensive data logging and profiling. 5-inch high resolution touchscreen interface for intuitive operation. Connectivity options include GPIB, USB (TMC), and LAN (LXI).

Auto-calibration ensures sustained accuracy over time. Compact size with dimensions 425 mm length, 255 mm width, and 106 mm height. Durable and reliable for industrial, laboratory, and manufacturing applications. Discover the comprehensive Keithley product range and advanced digital Multimeters on EnvMart.
