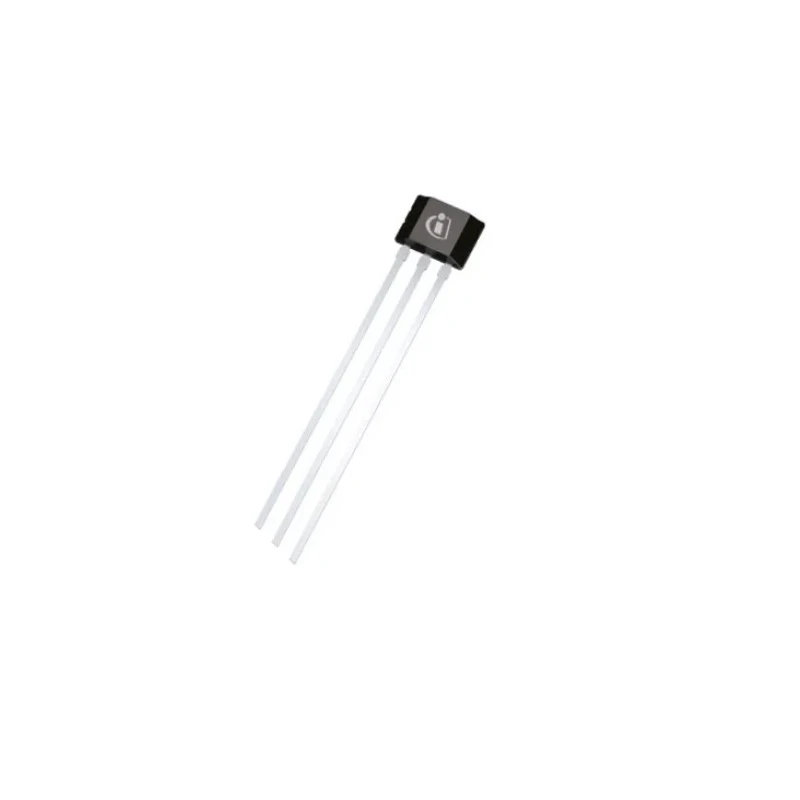

Infineon Hall Effect Sensor Through Hole Open Collector Output Rectangular Body 24V TLE4945LHALA1

Infineon TLE4945LHALA1 Hall Effect Sensor is a through-hole mounted magnetic sensor with a rectangular body and an open collector output. It operates with a maximum supply voltage of 24V and features built-in reverse polarity protection and output protection against negative voltage transients, enhancing device reliability and safety in demanding applications.

The device provides a digital output signal suitable for detecting both unipolar and alternating magnetic fields. Its compact rectangular form factor and screw terminal type make it suitable for secure mounting and robust electrical connections on printed circuit boards.

The sensor supports a wide temperature range from -40°C, making it compatible with harsh automotive and industrial environments. Its maximum switching current of 100A allows for efficient handling of switching loads.

Typical applications include automotive magnetic field sensing, industrial automation, and control gear requiring accurate magnetic position or motion detection.

This device is part of Infineon's XENSIV series, renowned for high reliability and performance in sensor technologies. Although this component does not carry any specific approvals or certifications, it is manufactured to meet rigorous quality standards.

The sensor features reverse polarity protection on-chip for enhanced durability. Includes output protection against negative voltage transients to ensure reliable operation. Digital output signal supports detection of unipolar and alternating magnetic fields.

Mounting is through hole, facilitating secure PCB installation with screw terminals. Operating temperature range extends from -40 degrees Celsius for versatility in harsh environments. Maximum supply voltage of 24 volts with switching current rating of 100 amps.

Rectangular body style designed for ease of integration in control systems. Suitable for automotive and industrial magnetic sensing applications. No specific certifications or standards approvals are declared for this component.
