| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC144EQBZ |
| Mount Type | Surface |
| Series | PDTC144E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 80 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

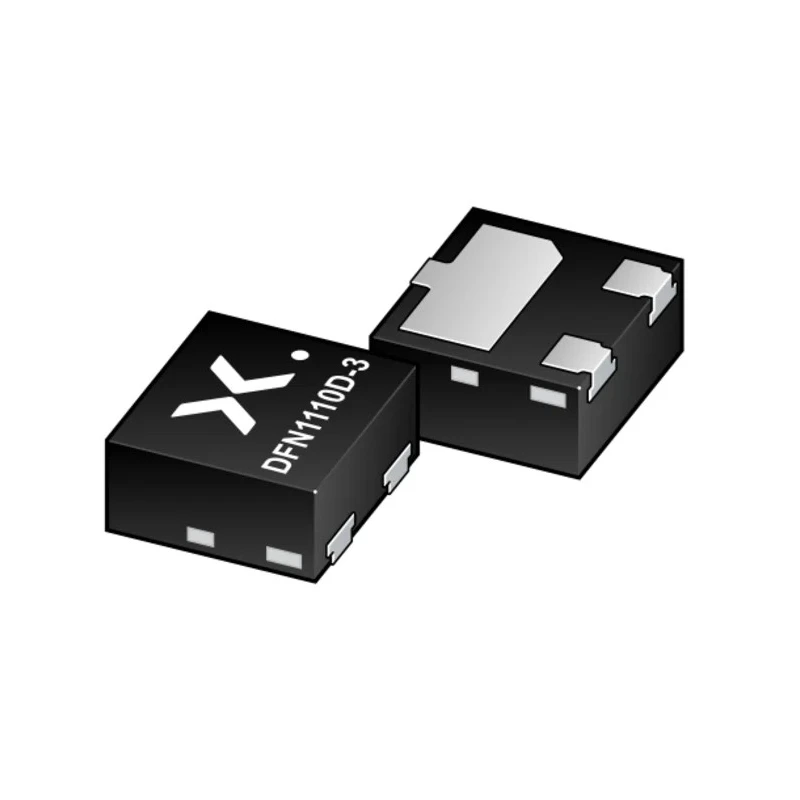

Nexperia PDTC144EQBZ resistor-equipped transistor is a high-performance NPN bipolar transistor offered in an ultra small DFN1110D-3 surface mount package. It supports a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V. Designed for efficient switching and amplification, it integrates resistors internally to simplify circuit design and reduce PCB component count.
The transistor is ideal for digital applications controlling IC inputs and switching loads while supporting automated optical inspection due to its compact 0.5 mm package height. It operates reliably over a wide temperature range from -55°C to 150°C and delivers a typical current gain (hFE) of 80 and a transition frequency (ft) up to 230 MHz.
This device meets RoHS environmental standards and AEC-Q101 automotive qualifying standards, making it suitable for automotive and industrial uses. Its 3-pin leadless design enables automated pick and place manufacturing, decreasing assembly costs and improving yield.
Integrates resistors to simplify circuitry and reduce component count. Maximum 100 mA DC collector current capability. Collector-emitter voltage rating up to 50 V. Surface mount DFN1110D-3 package with low 0.5 mm profile.
Wide operating temperature range from -55°C to 150°C. Typical current gain (hFE) of 80 ensures good amplification. High transition frequency of 230 MHz supports fast switching. Meets automotive AEC-Q101 standard and RoHS compliance.
Suitable for digital switching loads and controlling IC inputs. Enables reduced PCB footprint and simplified assembly costs.
This Nexperia transistor is ideal for industrial electronics, automotive signal switching, and compact digital circuit designs requiring reliable and efficient transistor performance. It is available supplied on a reel, supporting automated production lines for high volume manufacturing.
