| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC143ZQB-QZ |
| Mount Type | Surface |
| Series | PDTC143Z |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

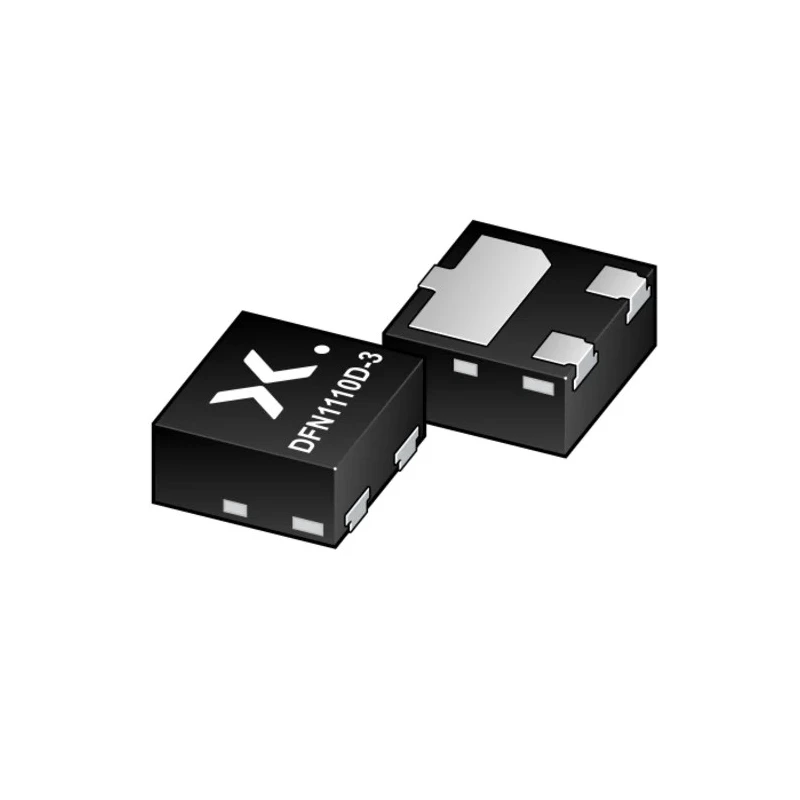

The Nexperia PDTC143ZQB-QZ is an NPN resistor-equipped bipolar transistor featuring an ultra-compact 3-pin DFN1110D-3 (SOT8015) surface mount package with side-wettable flanks. It provides a maximum DC collector current of 100 mA and can withstand collector-emitter voltages up to 50 V, making it suitable for a wide range of electronic switching and amplification tasks.
Built-in resistors within the transistor package simplify circuit layout, reduce the total number of components, and lower pick and place costs. The device's low profile of 0.5 mm enables deployment in space-constrained designs and facilitates automatic optical inspection, enhancing manufacturing yield and reliability.
With a maximum transition frequency of 230 MHz, this transistor supports high-speed switching and digital circuit applications. It operates reliably across a broad temperature spectrum from -55°C to 150°C and adheres to critical industry standards including RoHS compliance and AEC-Q101 automotive certification.
Common use cases include controlling integrated circuit inputs, load switching, and other digital signal processing functions in industrial, automotive, consumer electronics, and telecommunications industry sectors.
Integrated resistors reduce circuit complexity and component cost. Compact and low-profile DFN1110D-3 package enhances PCB real estate efficiency. High maximum current and voltage ratings ensure robust switching capability.
Broad operating temperature range supports harsh environment applications. Meets RoHS and AEC-Q101 automotive standards for quality assurance. Optimized for automatic optical inspection and surface mounting processes. High transition frequency enables use in high-speed digital circuits.
Suitable for a variety of electronic and automotive applications. Explore more semiconductor products at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Bipolar Transistors category.
