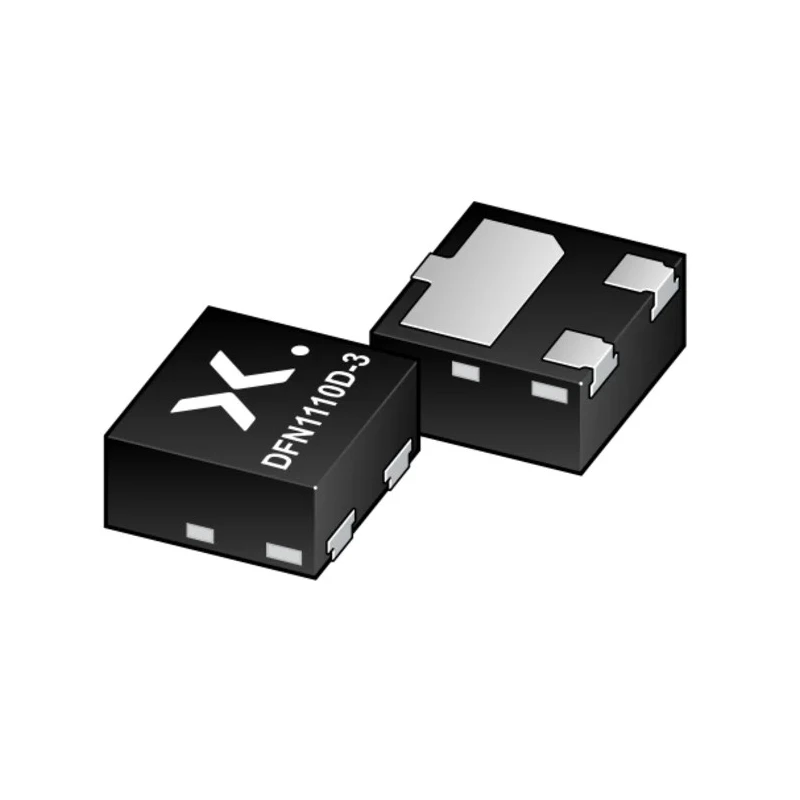

Nexperia Resistor-Equipped Transistor PNP, 100 mA, 50 V, 3-Pin DFN1110D-3 PDTA143XQBZ

The Nexperia PDTA143XQBZ is a resistor-equipped PNP transistor optimized for compact digital and automotive applications. This device integrates resistors within its ultra-small 3-pin DFN1110D-3 (SOT8015) leadless surface mount plastic package with side-wettable flanks, enabling a reduced component count and simplified circuit design. It caters to circuits requiring up to 100 mA collector current and can tolerate a collector-emitter voltage up to 50 V while maintaining reliable operation from -55°C to 150°C.

Its built-in resistors simplify design needs by reducing the number of external components, leading to diminished pick and place machine times and lower production costs. The low package height of 0.5 mm supports usage in space-constrained assemblies and meets the criteria for automatic optical inspection (AOI) of solder joints to ensure quality manufacturing processes.

Compliant with RoHS standards and qualified under automotive standard AEC-Q101, the PDTA143XQBZ series transistors are highly suitable for automotive, industrial, and digital control applications. They serve as a reliable, cost-effective alternative to the BC857 transistor family, ideal for switching loads and controlling integrated circuit inputs.

Rated continuous collector current: 100 mA. Maximum collector-emitter voltage: 50 V. Built-in resistors for circuit simplification. Compact DFN1110D-3 surface mounted plastic package. Operating temperature between -55°C and 150°C.

RoHS compliant and AEC-Q101 automotive approved. Suits digital and automotive semiconductor applications. Low package profile of 0.5 mm height. Enables cost savings and faster manufacturing. Replaces BC857 transistor series in many use cases.
