| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA143XQCZ |
| Mount Type | Surface |
| Series | PDTA143X |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

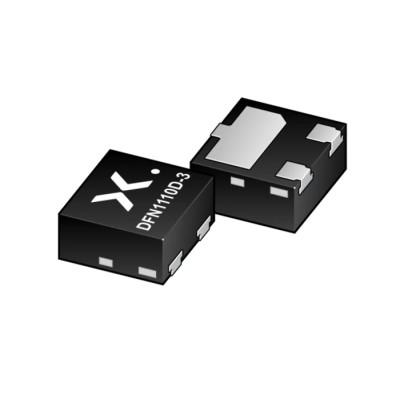

The Nexperia PDTA143XQCZ is a resistor-equipped transistor (RET) designed for efficient switching and digital application use. This PNP transistor supports a maximum DC collector current of 100 mA and a collector-emitter voltage capability of 50 V, making it suitable for a variety of low power amplification and switching circuits.
Encased in an ultra-small DFN1412D-3 (SOT8009) plastic package with side-wettable flanks, the device facilitates automated optical inspection (AOI), ensuring high-quality solder joints and streamlined assembly on printed circuit boards (PCBs).
The built-in resistors integrated into the transistor reduce the need for additional external components, simplifying the circuit design and lowering overall component count and assembly costs. This results in a more compact and cost-efficient solution particularly apt for controlling IC inputs and switching loads in digital circuits.
Designed to endure harsh automotive environments, it meets the stringent AEC-Q101 automotive standard while maintaining RoHS compliance for environmental safety. The transistor operates across a wide temperature range from -55°C to 150°C, providing robust performance in industrial, automotive, and consumer electronics applications.
Maximum collector current of 100 mA supports moderate load switching. Collector-emitter voltage rating of 50 V accommodates various signal and power requirements. Surface mount DFN1412D-3 package ensures minimal PCB space usage.
Built-in resistors contribute to simplified circuit architectures. Low 0.5 mm package height reduces device profile on PCBs.
This device is ideal for engineers and designers seeking a compact, reliable, and cost-effective transistor solution for digital switching and control applications. It serves as a direct replacement to BC857 transistor series, optimizing board layouts and enhancing manufacturing efficiency.
Explore the wide range of Bipolar Transistors in the Nexperia PDTA143X series for compatible and scalable circuit designs. Suitable for industrial, automotive, telecommunications, and consumer electronics sectors.
Discover more technical resources, 3D models, schematics, and design tools through EnvMart to aid integration of this transistor into your projects.
