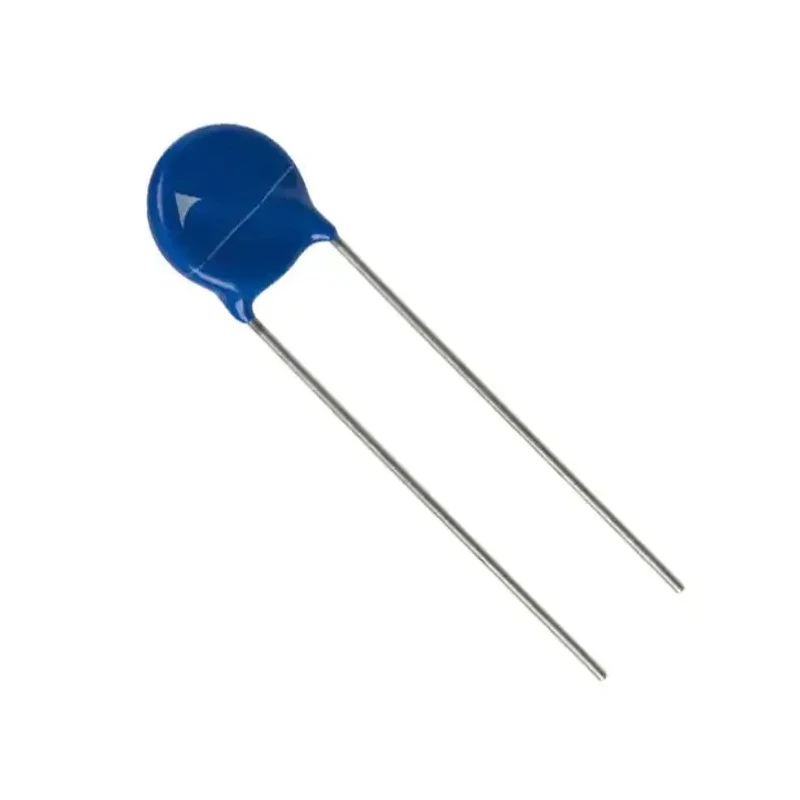

TDK StandardD Metal Oxide Varistor 220 V Varistor Voltage 820 pF Capacitance 50 A Clamping Current Clamping B72214S0141K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 15.5mm |
| Brand | TDK |
| THICKNESS | 4.3mm |
| Length | 18.5mm |
| Model | B72214S0141K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | StandardD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 820pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 180V dc |
| Standards/Approvals | VDE, UL, CSA, IEC |
| Pin Count | 2 |
| Maximum AC Voltage | 140V ac |
| Clamping Voltage VC | 360V |
| Clamping Current | 50A |
| Maximum Surge Current | 4.5kA |
| Varistor Voltage | 220 V |
Key Features
- Metal oxide varistor designed for surge protection applications.
- 220 V varistor voltage with a clamping voltage of 360 V ensures circuit safety.
- High clamping current rating of 50 A for reliable performance.
- Capacitance of 820 pF suitable for industrial and electronic components.
- Through hole mount type with a diameter of 15.5 mm and length 18.5 mm.
- Maximum operating temperature of 105°C and minimum operating temperature of -40°C.
- Flame-retardant epoxy resin coating for safety compliance.
- Standards approved including VDE, UL, CSA, and IEC for quality assurance.
Product Description
TDK B72214S0141K101 StandardD Metal Oxide Varistor is a high-performance component engineered for surge protection in electrical and electronic circuits. It features a varistor voltage of 220 V and a capacitance of 820 pF, suitable for use in a wide voltage range from 11 to 1100 VRMS.
This varistor is designed with a clamping current rating of 50 A and a clamping voltage of 360 V, making it reliable for handling transient voltage bursts and protecting sensitive equipment. The device supports maximum AC voltage of 140 V ac and maximum DC voltage of 180 V dc, with a surge current capacity of up to 4.5 kA.
The varistor is mounted through hole with a diameter of 15.5 mm, a length of 18.5 mm, and a thickness of 4.3 mm. It is coated with a flame-retardant epoxy resin, complying with UL 94 V-0 safety standards. The terminals are made from tinned wire to ensure good electrical connectivity.
Operating temperature ranges from -40°C to a maximum of 105°C without derating, making it suitable for industrial and commercial applications. The device is compliant with multiple safety standards including VDE, UL, CSA, and IEC, ensuring robust safety and reliability.
Packaged in tape & reel, the varistor is optimized for automated production lines in manufacturing electronic and electrical components. Metal oxide varistor designed for surge protection applications. 220 V varistor voltage with a clamping voltage of 360 V ensures circuit safety.
High clamping current rating of 50 A for reliable performance. Capacitance of 820 pF suitable for industrial and electronic components. Through hole mount type with diameter 15.5 mm and size 18.5 mm x 4.3 mm thickness. Wide operating temperature range from -40°C to 105°C.
Epoxy resin flame-retardant coating compliant with UL 94 V-0. Complies with VDE, UL, CSA, and IEC standards. Packaged in tape & reel for automated assembly.
This product is ideal for use in industrial, laboratory, HVAC, and manufacturing environments requiring reliable protection against voltage surges. Explore more TDK Varistors and related protective components on EnvMart for optimized circuit design and safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage of this model is 220 V, suitable for surge protection applications.
This varistor has a maximum clamping current rating of 50 A, ensuring reliable performance during transient voltage bursts.
The capacitance of this model is 820 pF, making it suitable for various industrial and electronic applications.
The varistor has a diameter of 15.5 mm, a length of 18.5 mm, and a thickness of 4.3 mm.
The maximum operating temperature for this model is 105°C, while the minimum operating temperature is -40°C.
The clamping voltage for this model is 360 V, which helps protect sensitive equipment from voltage spikes.
This varistor supports a maximum AC voltage of 140 V and a maximum DC voltage of 180 V.
It complies with multiple safety standards including VDE, UL, CSA, and IEC, ensuring robust safety and reliability.
The varistor is packaged in tape & reel format, which is optimized for automated production lines.
This model uses a through hole mount type for installation.
The maximum surge current capacity of this varistor is 4.5 kA, making it effective for handling transient surges.
The country of origin for this model is China.
