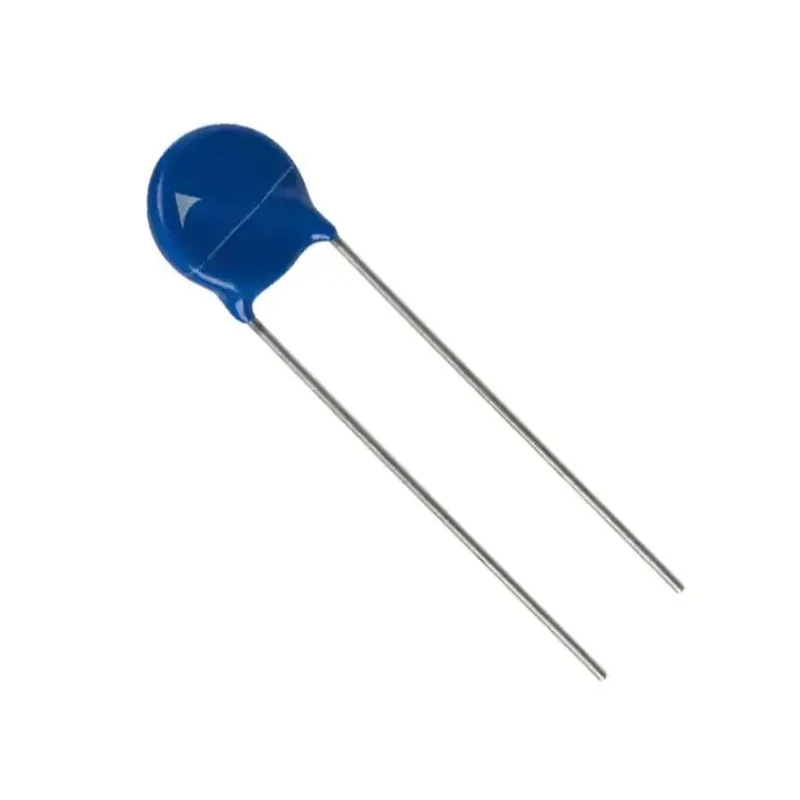

TDK AdvancedD Metal Oxide Varistor 220 pF 25 A Clamping Current 710 V Model B72210S2271K101

TDK B72210S2271K101 AdvancedD Metal Oxide Varistor is specially engineered for surge protection in electronic circuits. This metal oxide varistor offers a capacitance of 220 pF and a clamping current rating of 25 A, which allows it to effectively suppress voltage transients and protect sensitive components from damage.

The device features a clamping voltage of 710 V and supports maximum surge currents up to 3.5 kA, making it suitable for industrial, commercial, and laboratory applications requiring high-energy transient voltage suppression. It adopts a through-hole mount with a diameter of 12 mm and length of 14.5 mm to fit standard PCB layouts.

The varistor is coated with epoxy resin that meets UL 94 V-0 flame-retardant standards, enhancing safety and durability. The terminals are made from tinned wire to ensure reliable long-term connections and corrosion resistance. It operates well across a temperature range from -40°C to 105°C, ensuring performance in harsh environments.

The maximum AC voltage rating is 275 V AC and maximum DC voltage rating is 300 V DC, providing versatility across electrical designs. This product conforms to internationally recognized standards including VDE, IEC, CSA, and UL, assuring quality and reliability.

TDK's AdvancedD series varistors are suited for industrial electronics, power supplies, telecommunications, and other surge-sensitive systems. Their high surge current and energy ratings make them indispensable for transient voltage protection in electrical and electronic devices.

The varistor features a capacitance of 220 pF suitable for filtering and transient voltage suppression. It supports a clamping current of 25 A, providing robust protection against voltage spikes. Clamping voltage up to 710 V ensures effective transient voltage suppression.

Through-hole mount type with a compact diameter of 12 mm and length of 14.5 mm. Operates reliably within a temperature range of -40°C to 105°C. Constructed with epoxy resin flame-retardant coating compliant with UL 94 V-0.

Terminals are made from tinned wire for corrosion resistance and durability. Maximum AC voltage rating is 275 V AC and maximum DC voltage rating is 300 V DC. Capable of handling a maximum surge current of 3.5 kA for high-energy transient events.

Manufactured to meet international standards including VDE, IEC, CSA, and UL. Explore more TDK surge protection components and Varistors in the EnvMart industrial electronics category suitable for diverse applications.
