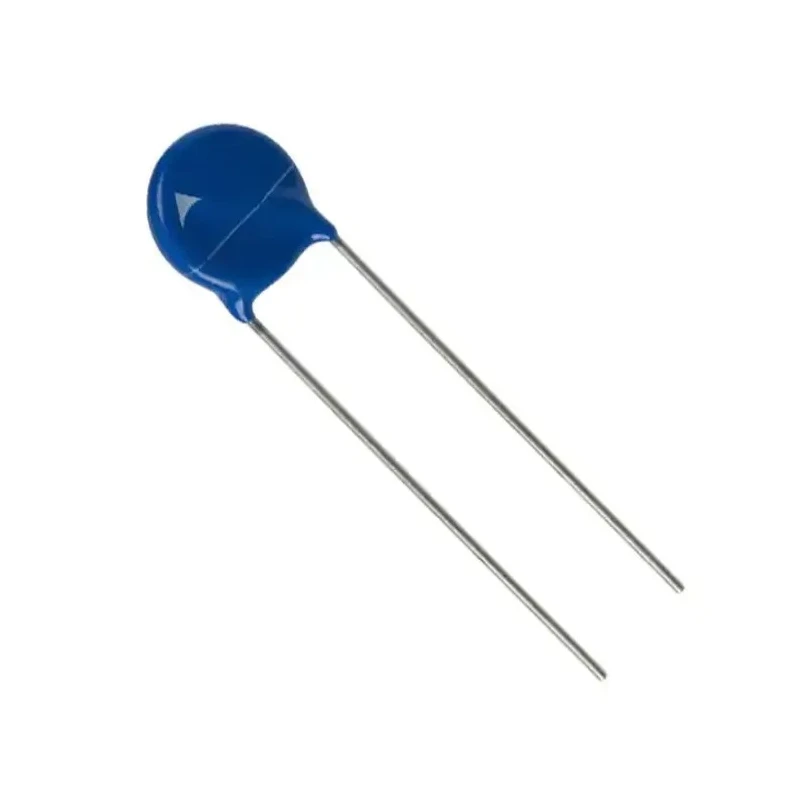

TDK AdvancedD Metal Oxide Varistor 200 pF 25 A Clamping 775 V B72210S2301K101

TDK B72210S2301K101 AdvancedD Metal Oxide Varistor is a high-performance surge protection component designed for electronic circuits and industrial applications.

This varistor features a capacitance of 200 pF and can handle a clamping current of 25 A with a clamping voltage of 775 V, making it suitable for protecting sensitive circuits against transient voltage spikes and surges. The varistor voltage rating is 470 V, providing stable voltage suppression capability.

The device is constructed with a round varistor element coated using flame-retardant epoxy resin compliant with UL 94 V-0 standards, enhancing safety and durability. Its terminals are made from tinned wire, ensuring reliable electrical connections. The product is designed for through-hole mounting on printed circuit boards.

Operating temperature range spans from -40°C to 105°C, allowing usage in harsh industrial and commercial environments. The varistor complies with international safety standards including UL, CSA, IEC, and VDE, assuring quality and regulatory conformance.

Key physical properties include a 12 mm diameter, length of 14.5 mm, and thickness of 5.6 mm. It supports maximum AC voltage of 300 V and DC voltage of 385 V, with a maximum surge current rating of 3.5 kA, enabling it to withstand high energy transients up to 440 J.

Typical use cases include industrial power supply protection, electronic circuit boards safeguarding, and surge protection in manufacturing equipment. The compact size and robust design suit applications in power connectors, passive components assemblies, and electronic devices requiring reliable voltage transient suppression.

Manufactured in China, this AdvancedD series varistor offers high surge current capacity and energy rating with a wide operating voltage range. It is an essential component in electrical and electronics assemblies requiring dependable transient voltage protection.

Designed for surge protection using metal oxide varistor technology. Features a capacitance of 200 pF suitable for transient voltage suppression. Supports a clamping current of up to 25 A for high energy surge events. Has a clamping voltage VC of 775 V and Varistor voltage of 470 V.

Constructed with flame-retardant epoxy resin coating to UL 94 V-0 standard. Through hole mount type for easy PCB assembly. Operates within temperature range from -40°C to 105°C. Complies with standards UL, CSA, IEC, and VDE for safety and reliability.

Compact dimensions with 12 mm diameter and 14.5 mm length. Manufactured in China with high surge current and energy ratings. Explore more electronic components and surge protection products at EnvMart for your industrial and commercial needs.
