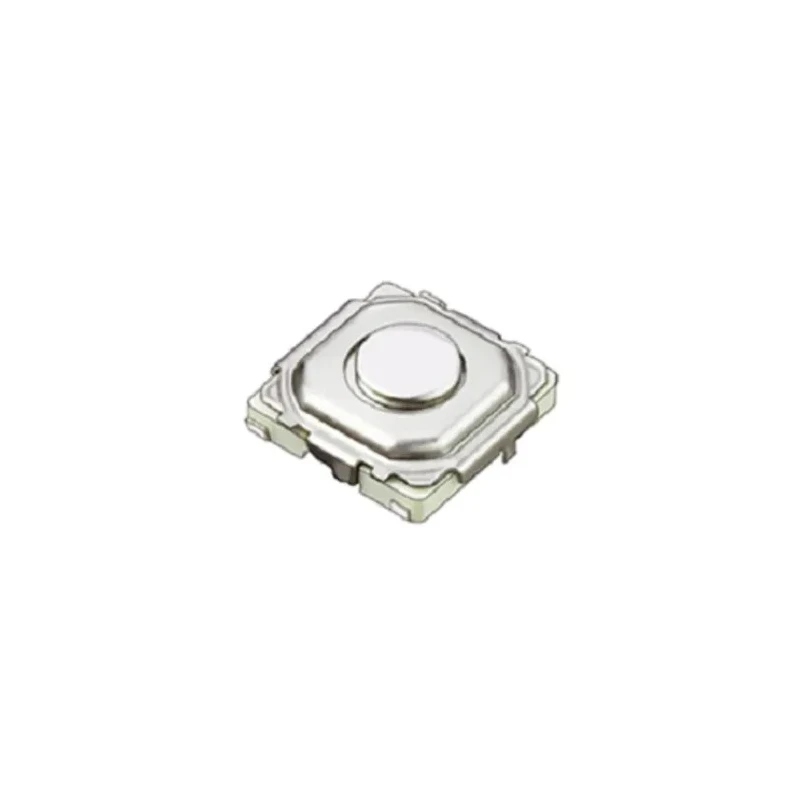

Panasonic Silver Tactile Switch Push Plate, 3.4 mm Actuator Length, SPST 20mA 15 V dc Surface Mount EVQPT5A15

Name: Panasonic Silver Tactile Switch Push Plate, 3.4 mm Actuator Length, SPST 20mA 15 V dc Surface Mount EVQPT5A15
Brand: Panasonic
SKU: 405122
Price: 27.18 INR
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	Malaysia
Brand	Panasonic
Height	1.5mm
Model	EVQPT5A15
Mount Type	Surface
Series	EVQP
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Terminal type	J Bend
Switch Operation	Push-On
Actuator Colour	Silver
Actuator Length	3.4mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Switch Contact Current	20mA

Key Features

The switch operates under a maximum temperature of 70°C.
It has a J Bend terminal type designed for push-on switch operation.
The actuator style is a push plate with a silver color finish.
The switch is designed for resistive loads with a contact voltage of 15 V dc and a contact current of 20 mA.
This component is part of the EVQP series and has a height of 1.5 mm.
Manufactured in Malaysia, it is suitable for portable electronic equipment and automotive audio systems.
Offers reliable snap-action type push-on functionality for precise user input.
The surface mount type supports easy assembly in electronic circuits.

Product Description

Panasonic EVQPT5A15 Silver Tactile Switch Push Plate is a precision surface-mount tactile switch designed for electronic, electrical, and automotive applications. Featuring a 3.4 mm silver actuator length, this push plate switch offers reliable SPST (single pole, single throw) operation for low current circuits up to 20 mA at 15 V dc. The switch is optimized for portable electronic devices and car audio system interfaces where compactness and responsiveness are essential.

The switch uses a J Bend terminal type, facilitating easy connection and soldering, while its push-on snap-action operation ensures consistent tactile feedback. The actuator style is a sleek silver push plate, providing a smooth surface for user interaction. With a low profile height of 1.5 mm and a maximum operating temperature of 70°C, this component is engineered to maintain consistent performance under standard operating conditions.

Manufactured in Malaysia, the EVQPT5A15 tactile switch meets the needs of various industrial and commercial sectors, including consumer electronics, automation control, and automotive systems. It supports surface mount installation, which enables efficient production on printed circuit boards in volume manufacturing environments.

Key features of this tactile switch include its reliable snap-action mechanism, compact footprint, and consistent electrical ratings suitable for sensitive control circuits. This component is ideal for engineers and designers seeking quality and durability in tactile switch solutions.

Key features:. The tactile switch is designed for 20mA current load at 15 V dc contact voltage. It employs a SPST contact configuration for straightforward on/off control. Equipped with a silver push plate actuator of 3.4 mm length.

J Bend terminal design enables secure and reliable mounting. Maximum operating temperature rated at 70°C ensures stable functionality. Height of the switch is 1.5 mm, minimizing board space consumption. This product is part of the Panasonic EVQP series for tactile switches.

Find this reliable Panasonic Tactile Switch and explore more specialized switch components in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a SPST (single pole, single throw) contact configuration, allowing for straightforward on/off control.

The maximum operating temperature for this tactile switch is rated at 70°C, ensuring stable functionality under standard operating conditions.

The actuator length of this model is 3.4 mm, providing a compact design suitable for various applications.

It employs a J Bend terminal type, which facilitates secure and reliable mounting during installation.

This switch is rated for a contact voltage of 15 V dc and a contact current of 20 mA, making it suitable for low current circuits.

The height of this switch is 1.5 mm, which minimizes board space consumption in electronic applications.

The actuator style of this model is a push plate with a silver color finish, providing a smooth surface for user interaction.

This tactile switch is designed for use in portable electronic equipment and automotive audio systems, where compactness and responsiveness are essential.

This model is part of the Panasonic EVQP series for tactile switches, which are optimized for various industrial and commercial sectors.

It provides a push-on switch operation, featuring a reliable snap-action mechanism for consistent tactile feedback.

The Panasonic EVQPT5A15 tactile switch is manufactured in Malaysia, ensuring compliance with regional manufacturing standards.

This switch utilizes a surface mount type, which supports easy assembly in electronic circuits and is suitable for volume manufacturing environments.
