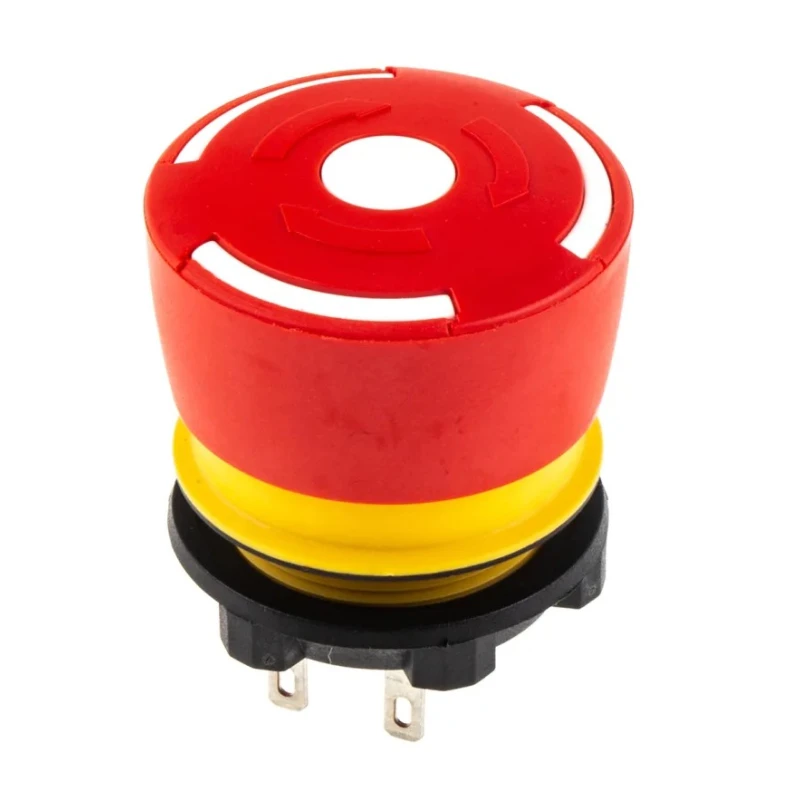

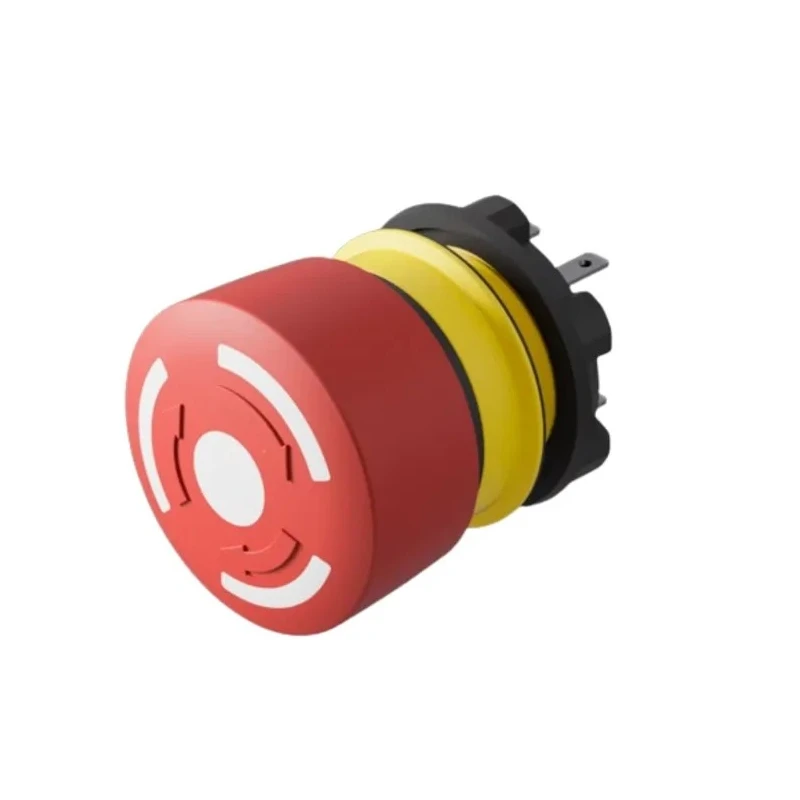

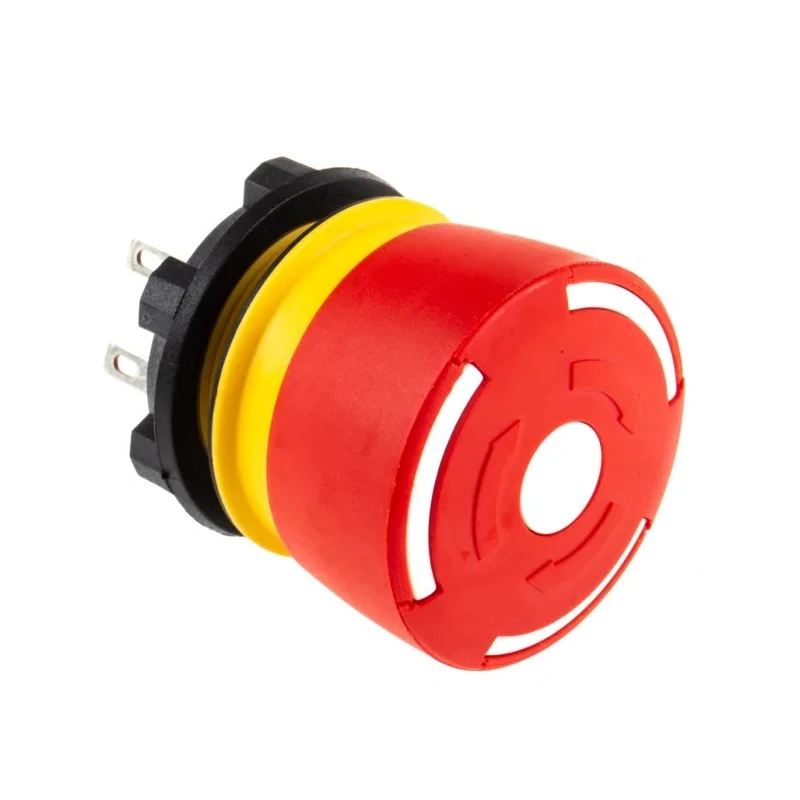

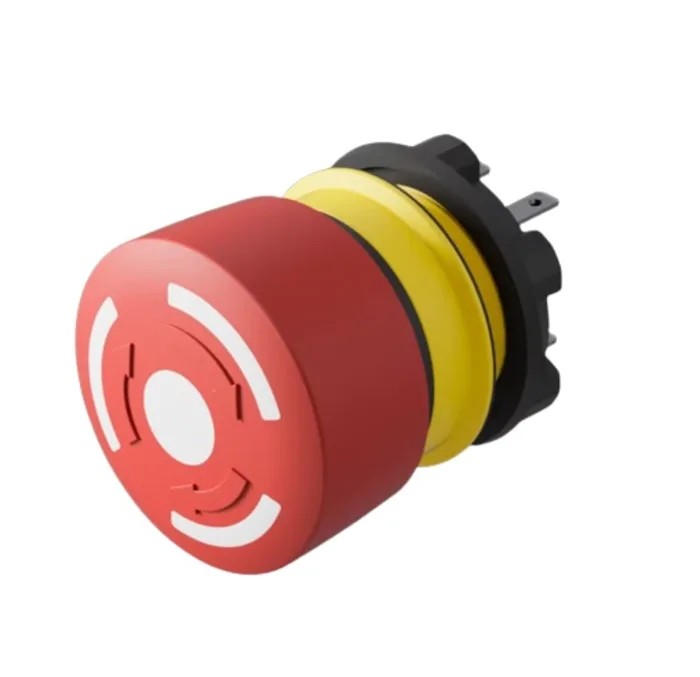

EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5 mm Cutout, 1 NO/1 NC, IP65

The EAO 84-5030.0020 is a high-performance twist release emergency stop push button designed for panel mounting in industrial and automation systems. Featuring a 22.5 mm cutout size and 1 NO/1 NC contact configuration, this red emergency stop button provides a reliable rapid shutdown solution to enhance safety in hazardous situations.

Constructed from impact and wear-resistant plastic, the push button is highly visible with a bright red top accented by white highlights and a yellow base for easy identification in control panels. The device utilizes a twist release mechanism for resetting, ensuring user-friendly operation after emergency trigger. Its monoblock design simplifies installation and maintenance.

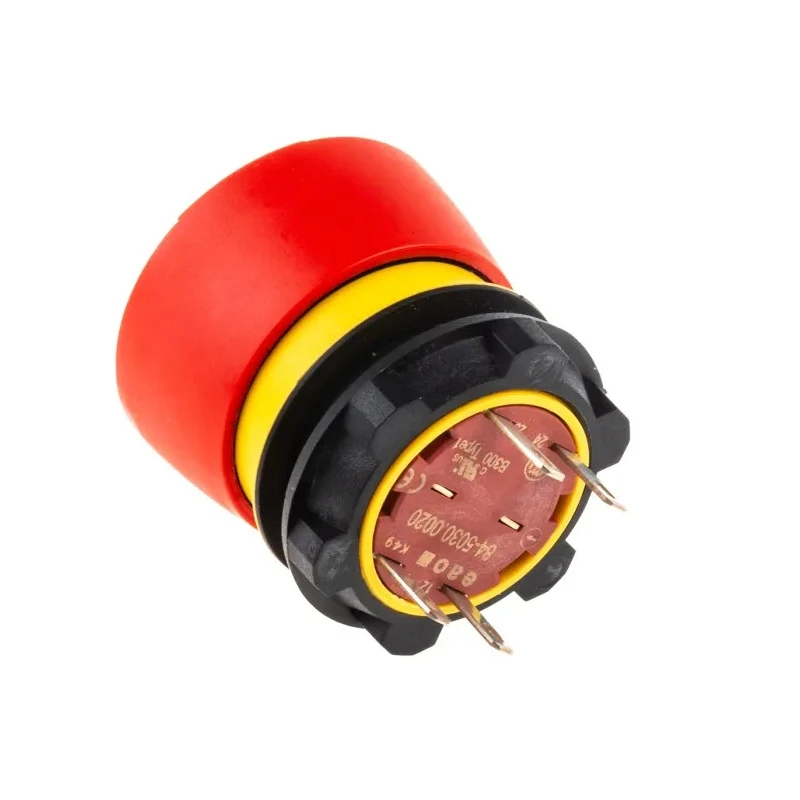

Rated IP65 ingress protection, the button is sealed against dust and low-pressure water jets, suitable for use in adverse industrial environments. Gold-plated silver contacts provide excellent electrical performance with corrosion resistance, facilitating dependable switching even at light loads. Plug-in solder terminals enable secure and straightforward wiring connections.

The compact profile with a rear panel depth of only 13.5 mm allows installation in panels with thickness between 1 and 4 mm without significant space requirements. This emergency stop button complies with international standards including EN 60947-5-1, UL, EN 60947-1, DIN EN 60204-1, EN 60947-5-5, ENEC, CE, and EN 418, ensuring quality and safety assurance.

With a service life beyond 50,000 operations and an operating temperature range of -25°C to +85°C, this product is suitable for rigorous industrial conditions including manufacturing equipment, robotics, process control systems, construction sites, security and emergency exit controls.

The EAO 84 Series low profile emergency stop push buttons are widely appreciated in automated environments where compact design and reliable emergency interfacing are critical. Its robust construction and adherence to rigorous standards make it an essential safety component in control panels.

Constructed from durable plastic material resistant to wear and impact. Bright red color with white highlights and yellow base for high visibility. IP65 rating for dust-tight and water-resistant operation. Compact design with minimal depth behind the panel for flexible installation.

Gold-plated silver contacts for superior conductivity and corrosion resistance. Compliance with EN 60947-5-1, UL, CE, and other standards. Long service life exceeding 50,000 operations. Suitable for harsh industrial temperature ranges from -25°C to +85°C.

Applications include process control, construction, robotics, security, and emergency exits. Explore more Emergency Stop Push Buttons and industrial safety components within the Electronics & Electricals category at EnvMart.
