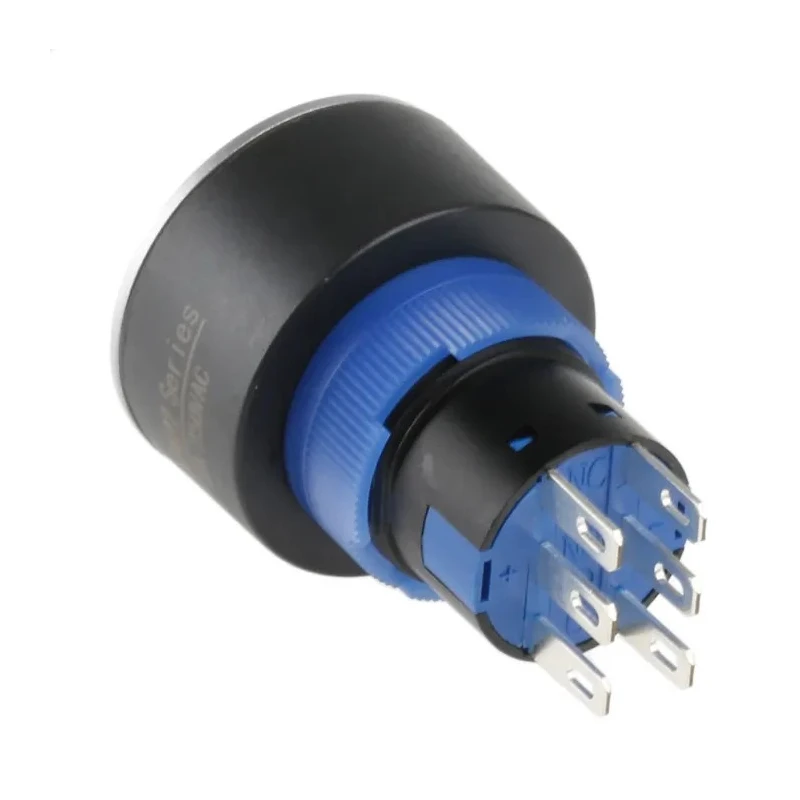

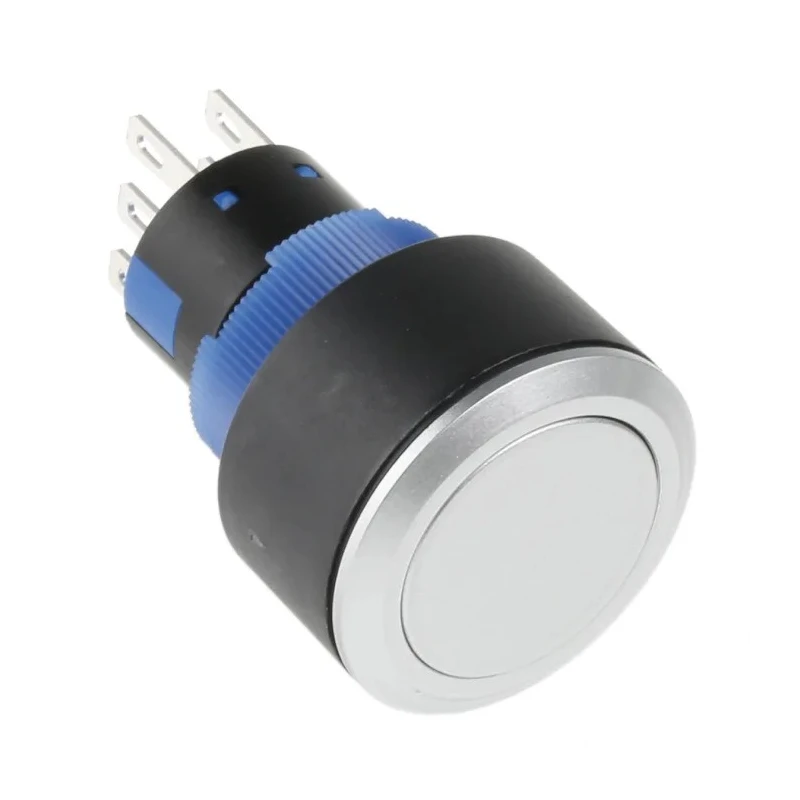

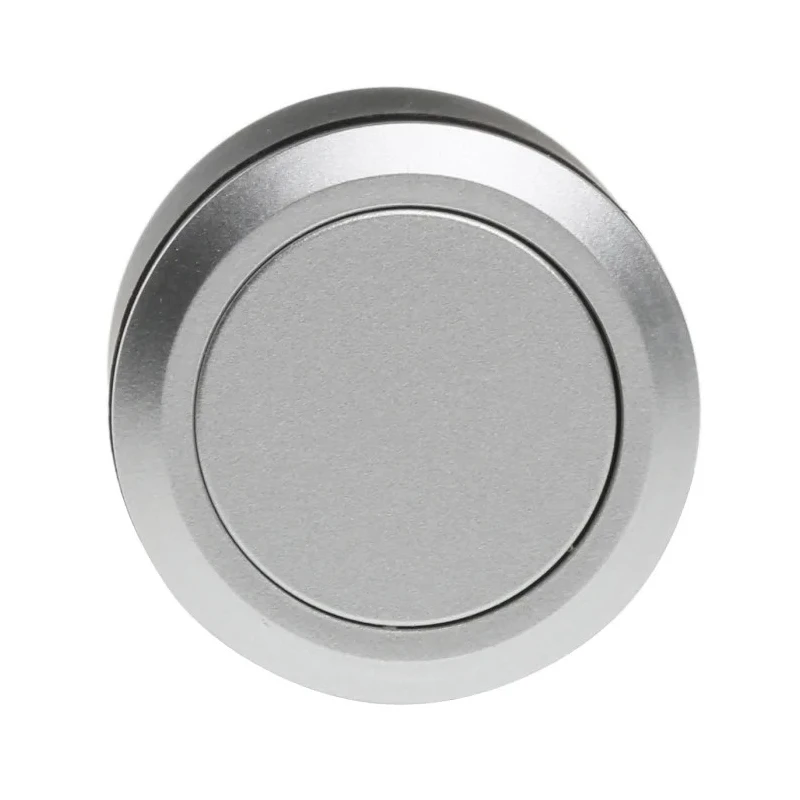

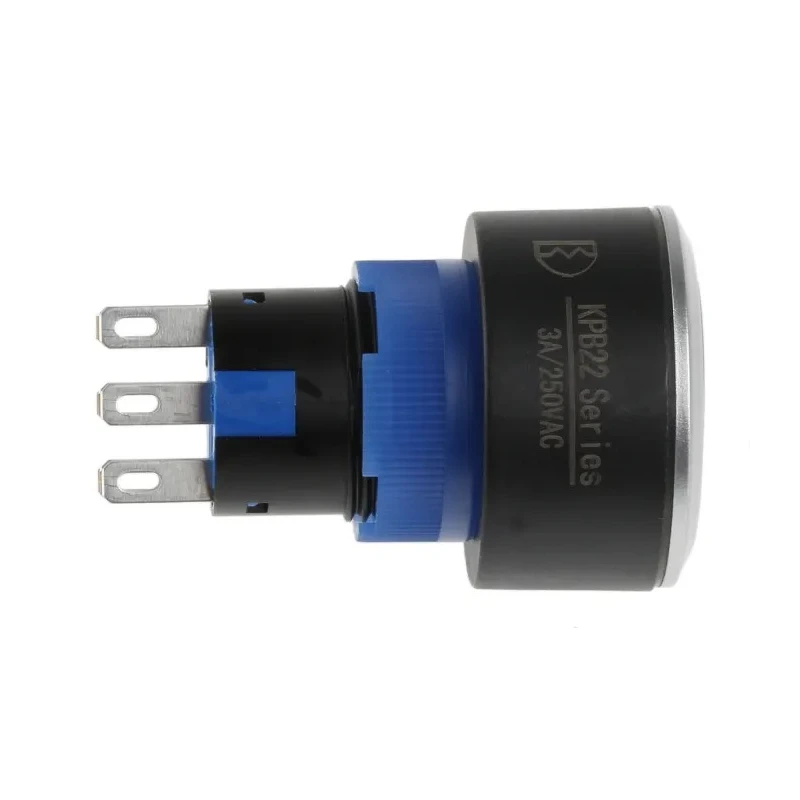

RS PRO Push Button Switch, Momentary, Panel Mount, 22.2 mm Cutout, DPDT, IP65, 250 V AC 3-5A 175-8267

Name: RS PRO Push Button Switch, Momentary, Panel Mount, 22.2 mm Cutout, DPDT, IP65, 250 V AC 3-5A 175-8267
Brand: RS PRO
SKU: 420348
Price: 1544.96 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	175-8267
IP Rating	IP65
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-35°C
Panel Cutout Size	22.2 mm
Terminal type	Solder
Standards/Approvals	UL 94 V-0, UL 94 V-2
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Flat
Switch Contact Current	3, 5A
Contact AC Voltage	250V ac

Key Features

Panel mount type suitable for various industrial and automation equipment.
Silver actuator color with a flat style for reliable operation.
IP65 rated for protection against dust and water ingress.
Operates at 250 V AC and DC voltage with 3 to 5A current rating.
Temperature range from -35°C to 70°C for demanding environments.
UL 94 V-0 and V-2 approvals ensure safety and quality compliance.
Non-illuminated push button ideal for robust industrial applications.
Terminal type uses solder connections for secure wiring.

Product Description

RS PRO 175-8267 is a momentary push button switch designed for panel mounting applications with a precise 22.2 mm cutout size. Featuring a double pole double throw (DPDT) contact configuration, it is capable of handling contact voltages of 250 V AC and DC, while supporting a switch contact current of 3 to 5 amperes.

The button actuator is silver-colored with a flat style, crafted for durability and ease of use. This model is IP65 rated, providing strong protection against harmful dust ingress and water jets, making it suitable for harsh environments. The switch operates reliably across a broad temperature range of -35°C to 70°C, ensuring consistent performance in various industrial, automation, and communication equipment.

Manufactured with compliance to UL 94 V-0 and UL 94 V-2 standards, this push button switch meets rigorous safety and flammability requirements. Its solder terminal connections guarantee secure electrical contacts. The push button is not illuminated and has a lightweight plastic cover with a silver metal cap, designed specifically for use in wireless applications, measuring devices, office equipment, and industrial machinery.

Momentary switch operation for precise control. Panel mount configuration with 22.2 mm cutout for easy installation. DPDT contact configuration supports versatile switching needs. IP65 protection makes it resilient in dusty and wet environments.

Supports 250 V AC/DC voltages with 3-5A current rating. Operates reliably between -35°C and 70°C. Complies with UL 94 V-0 and V-2 flammability standards. Silver actuator with flat style and solder terminal type for durability.

This RS PRO push button switch is ideal for industrial automation, communication equipment, electronic measurement instruments, office machinery, and other industrial applications needing dependable momentary switching functions with high ingress protection.
