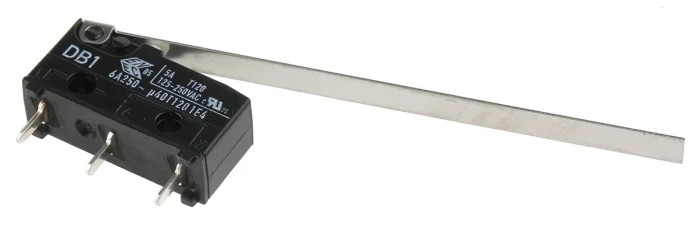

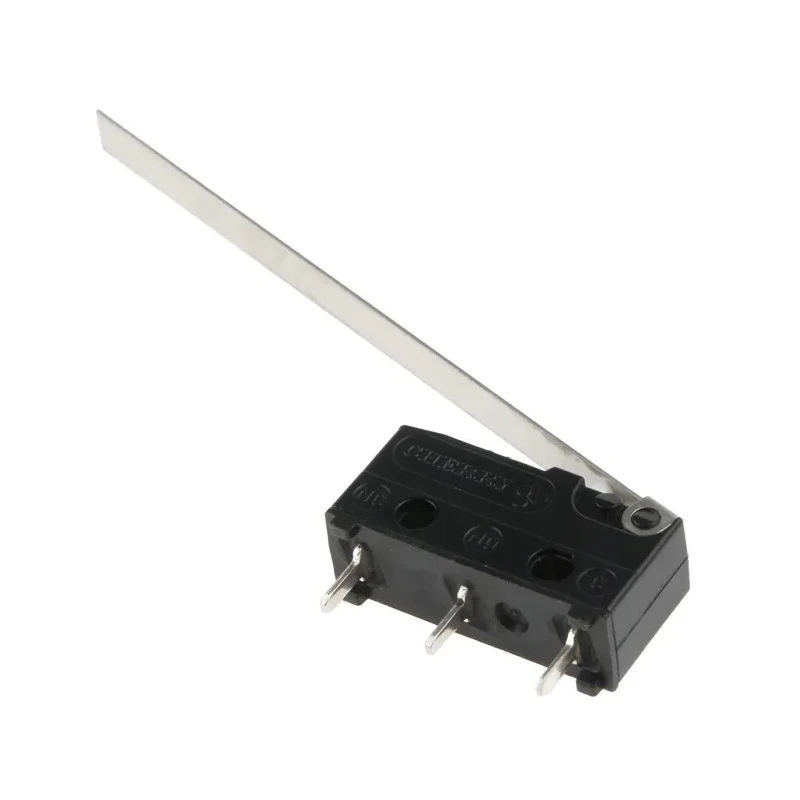

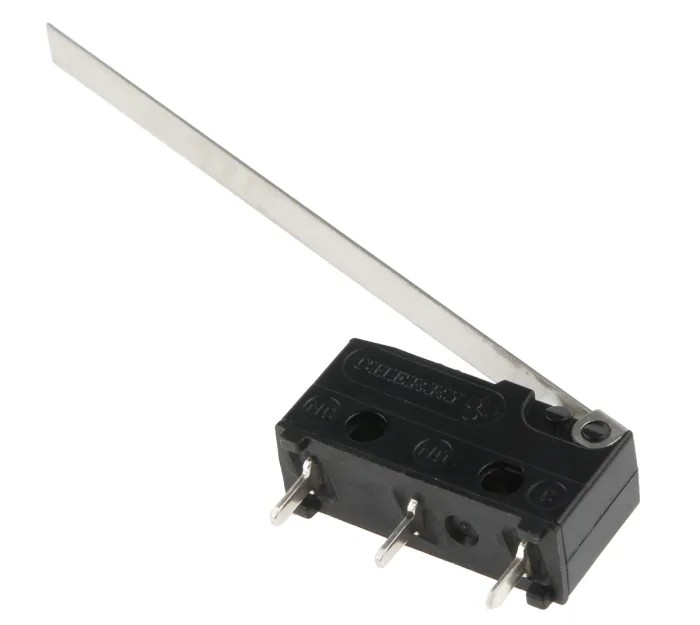

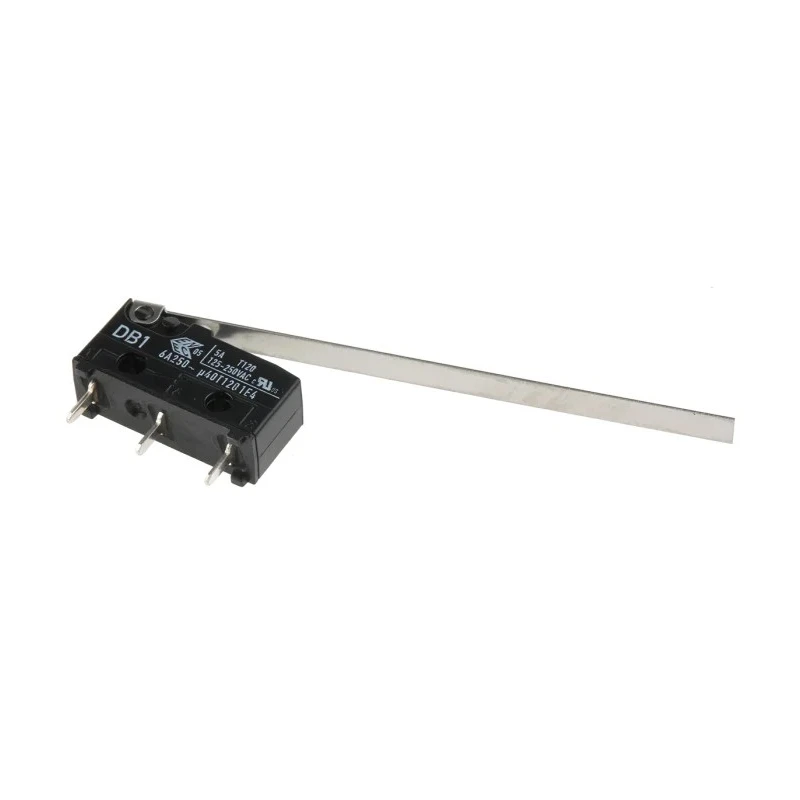

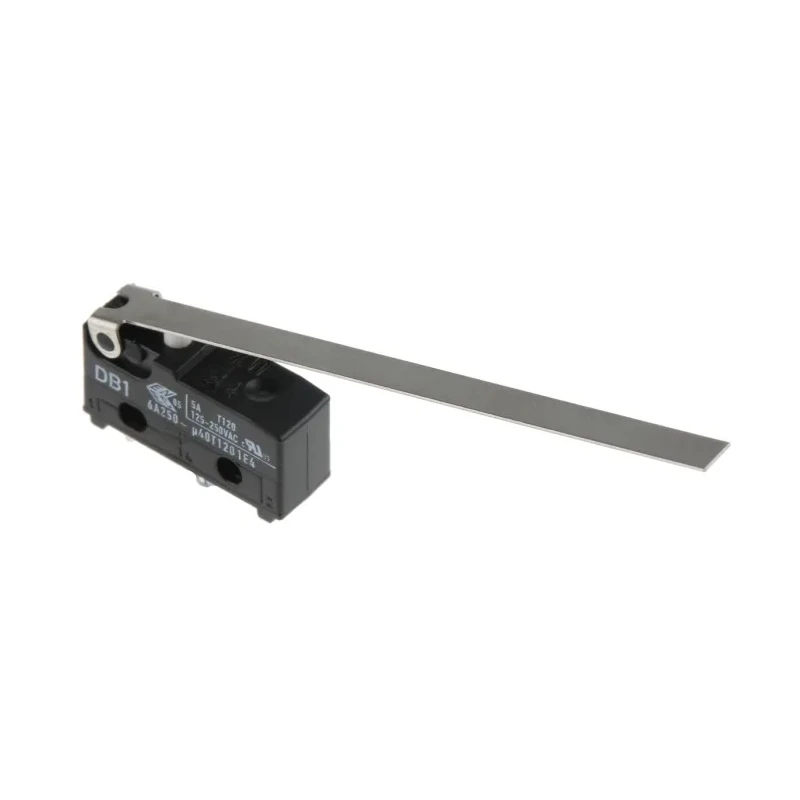

ZF Long Hinge Lever Micro Switch, Through Hole Terminal, 6A, 250 V AC, SPDT, IP50 DB1C-C1LD
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Model | DB1C-C1LD |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Series | DB1 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Long Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 0.18N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
| RS PRO Long Hinge Lever Micro Switch, Solder Terminal, 5A, CO, IP40RS Stock No. | 241-234Brand: RS PRO |
Key Features
- The actuator type is a long hinge lever for precise control.
- Features a through hole terminal for secure mounting.
- Housing is made of durable polyamide and polyethylene terephthalate materials.
- IP50 rated for protection against dust intrusion.
- Operating force is only 0.18N offering easy actuation.
- Operates reliably from -40°C up to 120°C temperature range.
- Designed for more than 15 million mechanical operations lifespan.
- Microswitch type is DB subminiature ensuring a compact form factor.
Product Description
ZF DB1C-C1LD Long Hinge Lever Micro Switch is a high-precision SPDT microswitch designed for industrial and automation applications. Rated for a contact current of 6A at 250 V AC, it integrates a long hinge lever actuator that offers excellent repeat accuracy and control. The switch features a through hole terminal for sturdy PCB or panel mounting.
The housing consists of polyamide and polyethylene terephthalate, providing durability and resistance in demanding environments. With an IP50 protection rating, the device ensures reliable operation against dust ingress but is not water resistant.
The mechanical life exceeds 15 million operations, demonstrating outstanding longevity in industrial and commercial equipment. Operating force is minimized to 0.18N, reducing user fatigue or mechanical wear in automated actuation.
Operating temperature range from -40°C to 120°C makes it suitable for applications in harsh climates or inside industrial machines with temperature fluctuations. This microswitch is part of the DB series, known for its subminiature size and robust construction. It is RoHS compliant, meeting current environmental standards.
The actuator type is a long hinge lever for precise control. Features a through hole terminal for secure mounting. Durable polyamide and PET housing provides ruggedness. IP50 rating ensures protection from dust entry. Low operating force of 0.18N enables smooth activation.
Wide operating temperature range from -40°C to 120°C. More than 15 million mechanical cycles for long service life. SPDT contact configuration for versatile switching. Manufactured in Germany guaranteeing quality manufacturing.
RoHS compliant for environmental safety.
This microswitch is widely used in electrical control panels, automation systems, industrial machinery, and safety devices. Its precise switching characteristics and durable construction make it ideal for industrial and laboratory environments.
Explore a wide range of microswitches at EnvMart to meet diverse application needs with assured quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch has a contact current rating of 6A at 250V AC.
It features a long hinge lever actuator, which allows for precise control.
This micro switch has an IP50 rating, providing protection against dust intrusion.
It operates reliably within a temperature range of -40°C to 120°C.
The mechanical life of this micro switch exceeds 15 million operations.
The housing is made of polyamide and polyethylene terephthalate, ensuring durability.
The operating force is minimized to 0.18N, which facilitates easy actuation.
It features a through hole terminal for secure mounting.
Yes, it is RoHS compliant, meeting current environmental standards.
The contact configuration is SPDT (Single Pole Double Throw).
This model is manufactured in Germany, ensuring quality manufacturing.
It is widely used in electrical control panels, automation systems, industrial machinery, and safety devices.
