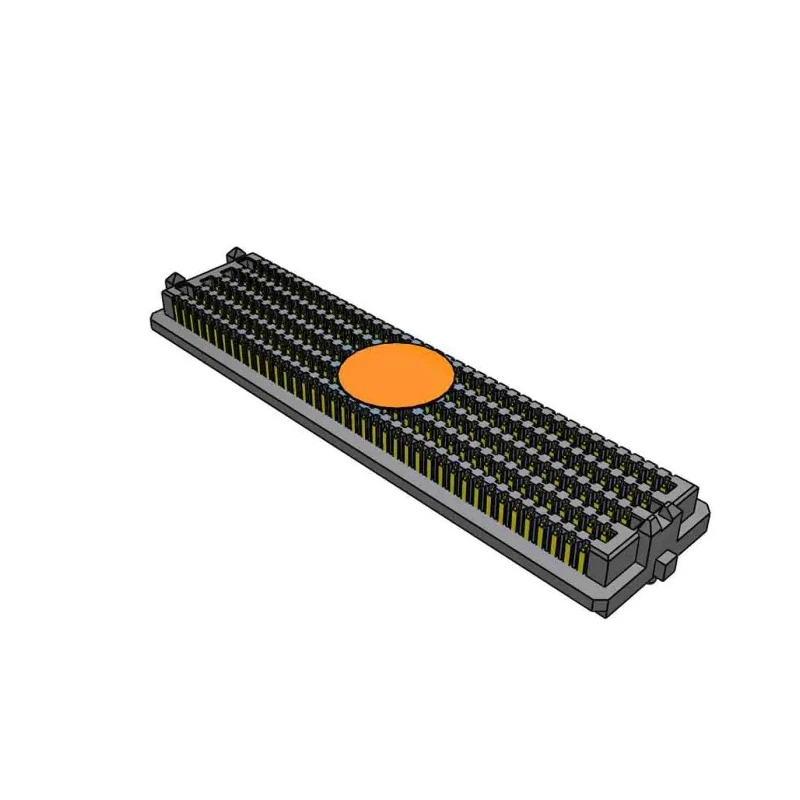

Samtec ASP Series Vertical Surface PCB Socket 400-Contact 10 Row 1.27 mm Pitch Solder ASP-134601-01
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 339V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.7A |
| Model | ASP-134601-01 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | ASP |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Array |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 10 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 400 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
| Stacking Height | 10mm |
Key Features
- Features a vertical orientation ideal for high-density PCB applications.
- Constructed with liquid crystal polymer housing for durability and thermal stability.
- Supports 2.7 A current rating at 339 V operating voltage.
- Includes 400 male copper alloy contacts ensuring reliable connectivity.
- Surface mount type with 10 mm stacking height for compact design.
- Compatible with solder termination ensuring secure installation.
- Operates reliably between -55°C to 125°C temperature range.
- Complies with RoHS standards for environmental safety.
Product Description
Samtec ASP-134601-01 is a professional-grade PCB socket designed for vertical surface mounting applications. This connector features an array type construction with 400 male contacts arranged in 10 rows, spaced at a 1.27 mm pitch, offering a high-contact density solution for board-to-board connectivity. The socket is engineered with a liquid crystal polymer housing, granting excellent mechanical strength and thermal resistance, making it suitable for demanding electronic environments.
With a current rating of 2.7 A and a voltage capacity of 339 V, this PCB socket supports robust electrical performance. The surface mount termination type allows for easy solder-based installation onto printed circuit boards, facilitating efficient manufacturing workflows. Rated for operation across a wide temperature range from -55°C up to 125°C, it is suitable for diverse industrial and commercial electronic applications.
The stacked height of 10 mm optimizes space utilization, permitting compact electronic designs without compromising connector integrity. This product meets RoHS compliance, ensuring environmental and health safety considerations are adhered to.
Typical applications include high-density PCB designs in industrial controls, communications equipment, computing hardware, and test instrumentation. The Samtec ASP series provides reliable, high-performance board-to-board connections vital for advanced electronics assembly.
Vertical orientation with male copper alloy contacts. Surface mount type for solder termination. High stacking height of 10 mm for compact design. Wide operating temperature range from -55°C to 125°C. RoHS compliant for environmental safety.
Explore the Samtec ASP series and related PCB Sockets for precision electronic component connectors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2.7 A, making it suitable for various electrical applications.
The maximum operating voltage for this socket is 339 V, allowing it to handle significant electrical loads.
It features 400 male contacts, arranged in a high-density configuration for efficient board-to-board connectivity.
The contacts are spaced at a pitch of 1.27 mm, which is suitable for high-density PCB applications.
This model has a stacking height of 10 mm, optimizing space utilization in compact electronic designs.
The housing is made from liquid crystal polymer, while the contacts are constructed from copper alloy, ensuring reliable connectivity.
It operates reliably within a temperature range of -55°C to 125°C, making it suitable for diverse environments.
Yes, this product complies with RoHS standards, ensuring it meets environmental safety requirements.
It uses solder termination, allowing for secure installation onto printed circuit boards.
This model features a vertical orientation, which is ideal for high-density PCB applications.
It utilizes a board-to-board connector system, facilitating connections between different circuit boards.
The product is manufactured in India, ensuring compliance with local manufacturing standards.
