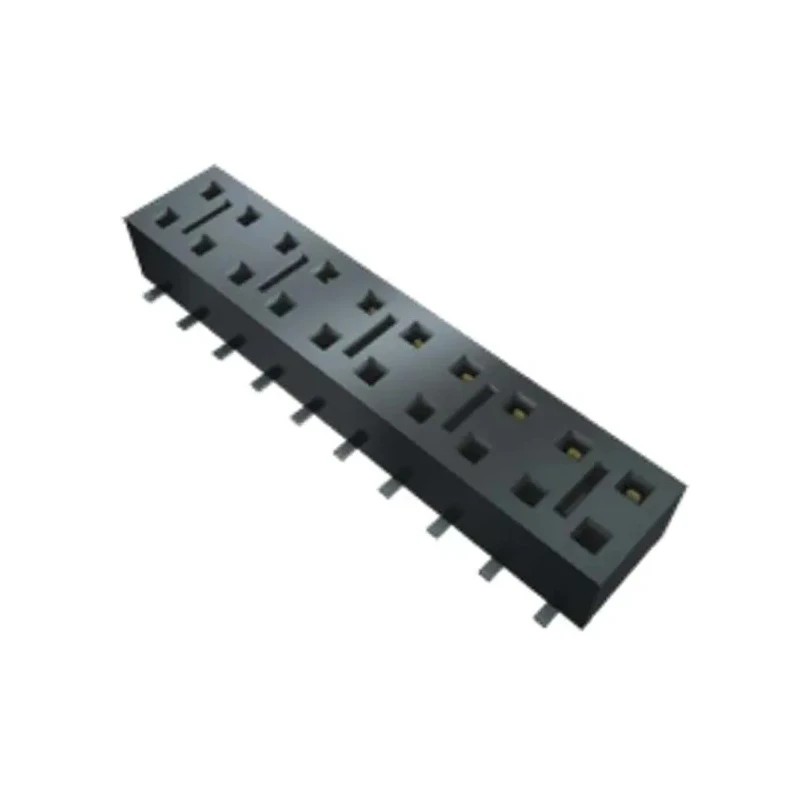

Samtec PCB Socket 8-Contact, 2 Row, 2.54 mm Pitch, 4.1A, Surface Mount, Straight Orientation HLE-108-02-G-DV-BE-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec PCB Socket 8-Contact, 2 Row, 2.54 mm Pitch, 4.1A, Surface Mount, Straight Orientation HLE-108-02-G-DV-BE-A

Name: Samtec PCB Socket 8-Contact, 2 Row, 2.54 mm Pitch, 4.1A, Surface Mount, Straight Orientation HLE-108-02-G-DV-BE-A
Brand: Samtec
SKU: 401341
Price: 5.58 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	Samtec
Orientation	Straight
Current	4.1A
Model	HLE-108-02-G-DV-BE-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HLE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	PCB Socket
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	8
Connector System	Board-to-Board

Key Features

The socket features 8 contacts arranged in 2 rows with a 2.54 mm pitch.
It supports a current rating of 4.1 A per pin for robust electrical performance.
Constructed with beryllium copper alloy contacts plated with gold for excellent conductivity and durability.
The housing is made from black liquid crystal polymer offering high temperature resistance.
Operates reliably between -55°C to 125°C for a wide range of industrial and electronic applications.
Designed for use in PCB socket applications with board-to-board connector system compatibility.
RoHS compliant and lead-free solderable ensuring environmental safety standards.
The connector series identifier is HLE, indicating Tiger Beam single beam socket technology.

Product Description

Samtec HLE-108-02-G-DV-BE-A PCB Socket is an 8-contact, 2-row surface mount board-to-board connector with 2.54 mm pitch designed for reliable electrical connection in intricate PCB assemblies.

The socket utilizes beryllium copper alloy contacts with gold plating, ensuring high conductivity and corrosion resistance under demanding conditions. The housing is constructed from black liquid crystal polymer, giving excellent thermal stability and mechanical robustness.

With a current rating of 4.1 A per pin and rated voltage up to 400 V, this connector supports various industrial, electronic, and communication applications requiring dependable signal integrity. The operating temperature range from -55°C to 125°C ensures functionality in a broad spectrum of environments including industrial control, telecommunication systems, and high-performance electronics.

The device is RoHS compliant and lead-free solderable, meeting modern environmental directives.

Use cases include industrial automation, laboratory equipment, telecommunications infrastructure, manufacturing electronics, and HVAC control units. This high-quality connector provides a secure, durable, and precise PCB socket solution optimized for board-to-board interfaces.

The socket features 8 contacts arranged in 2 rows with a 2.54 mm pitch. Current rating of 4.1 A per pin supports robust electrical performance. Beryllium copper alloy contacts plated with gold for conductivity and durability.

Black liquid crystal polymer housing offers high temperature resistance. Operates reliably between -55°C to 125°C for diverse industrial uses. Board-to-board connector system designed for surface mount and straight orientation.

RoHS compliant and lead-free solderable ensuring environmental safety. HLE series single beam socket technology from Samtec. Explore more electronic connectors and components in the PCB Sockets category on EnvMart for precise and reliable connectivity solutions across diverse applications.
