TDK Unshielded Wirewound Surface Mount Inductor 68 nH ±10%, 480 mA Idc, Ceramic Core, 1210 Package B82422A3680K100

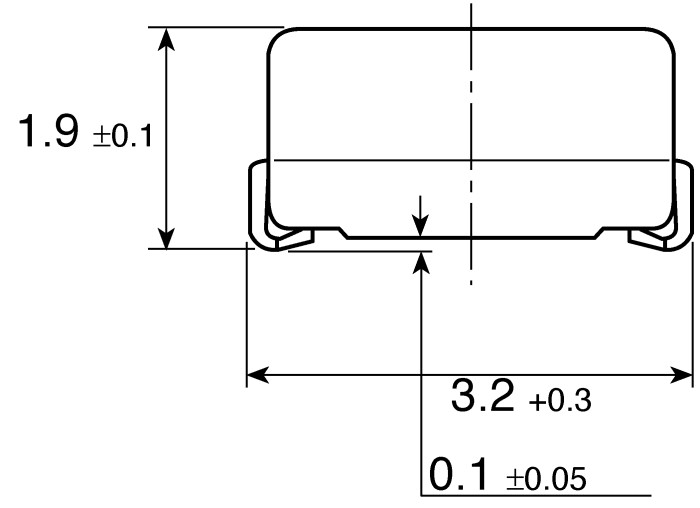

TDK B82422A3680K100 is a wirewound surface mount inductor designed with a ceramic core, featuring an inductance of 68 nH ±10%. It is built in a compact 1210 package size, making it ideal for modern electronic circuits requiring precision inductance components.

This inductor supports a maximum DC current of 480 mA and has a low DC resistance of 210 milliohms, ensuring minimal power loss and efficient operation in power supply and filtering circuits. The unshielded wirewound construction allows for high Q factor of 27 and a maximum self-resonant frequency of 1.15 GHz, suitable for RF and high-frequency signal applications.

Operating over a wide temperature range from -55°C up to 125°C, it complies with AEC-Q200 automotive standards, confirming its reliability in automotive and industrial environments. The component is compliant with RoHS environmental standards and is suitable for high-throughput manufacturing processes due to its tape & reel packaging and compatibility with both infrared and vapor phase reflow soldering as well as wave soldering techniques.

This model integrates well into industrial, automotive, and commercial electronics for use in power conditioning, filtering, and signal integrity circuits, offering a robust solution with energy efficiency and durability.

High-quality ceramic core enhances durability and electrical stability. Unshielded wirewound manufacturing supports precision inductance. Precise inductance tolerance enables reliable circuit performance. Low DC resistance minimizes power losses in circuits.

RoHS-certified ensuring eco-friendly manufacturing compliance. Suitable for automotive-grade applications with AEC-Q200 certification. Wide operating temperature allows use in diverse environments. High self-resonant frequency supports high-frequency circuit operation.

Packaged for automated assembly improving production efficiency. Explore more TDK Surface Mount Inductors and related electronic components at EnvMart for robust, industrial-grade solutions.
