| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |

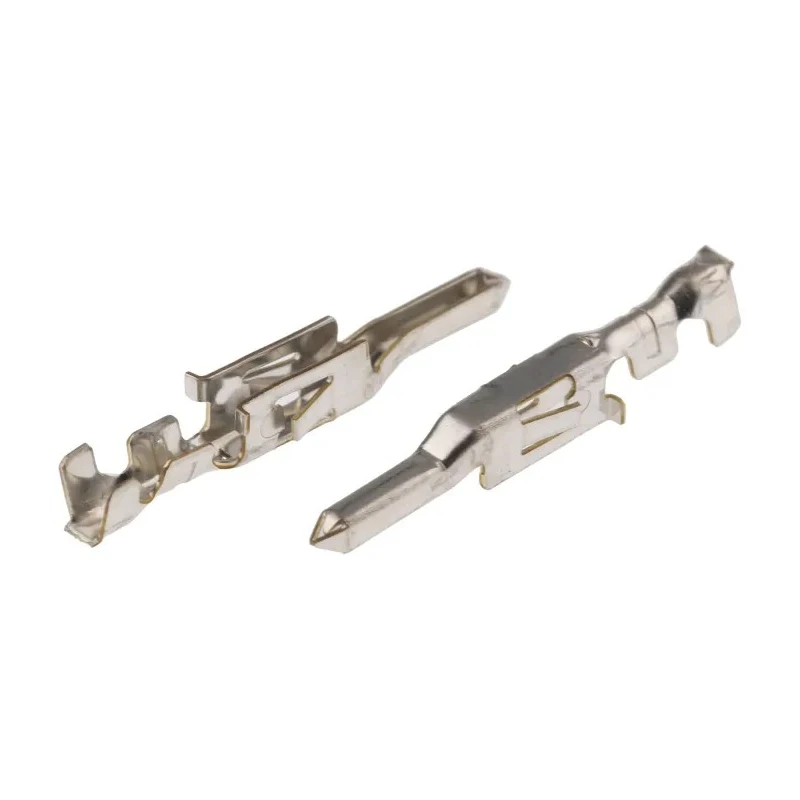

Molex 39-00-0048 Male Crimp Terminal from the 5558 Series offers a robust and reliable solution for electrical wire termination. This crimp terminal supports wire sizes ranging from 28 AWG minimum to 22 AWG maximum, capable of carrying a current up to 9 amperes. The terminal features multiple points of contact with its squared male pin, ensuring a dependable electrical connection suitable for industrial and commercial electronic devices.
Constructed from durable brass with tin plating, the contact material provides corrosion resistance and longevity under demanding operating conditions. The terminal is designed for crimp termination, which securely holds wires in place using appropriate crimp tools. Locking tangs firmly secure the terminal within compatible Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, preventing accidental disconnections.
This crimp terminal operates within a wide temperature range from -40°C to 105°C, making it suitable for use in harsh industrial environments. It is ideal for applications across industrial automation, electronics assembly, communications industry, and automotive manufacturing where secure and reliable connections are critical.
Molex ensures high manufacturing quality, with this product made in the United States. The compact and efficient design makes it suitable for a variety of cable, panel, or board mounting configurations.
Features multiple contact points for reliable electrical connection. Durable brass contact material with tin plating for corrosion resistance. Locking tangs prevent accidental disconnection in housing. Supports wire sizes from 28 AWG to 22 AWG.
Operates reliably between -40°C and 105°C. Current rating of 9A for domestic and commercial devices. Compatible with Molex Mini-Fit Jr, TPA, and BMI connector housings. Suitable for industrial, automotive, and communications applications.
Crimp termination type for secure wire connection. Made in the United States to high-quality standards.
For reliable, secure electrical connections in industrial and commercial applications, choose Molex 5558 Series Male Crimp Terminal 39-00-0048. Explore more connectors and Crimp Terminals in the Electronics & Electricals category at EnvMart.
