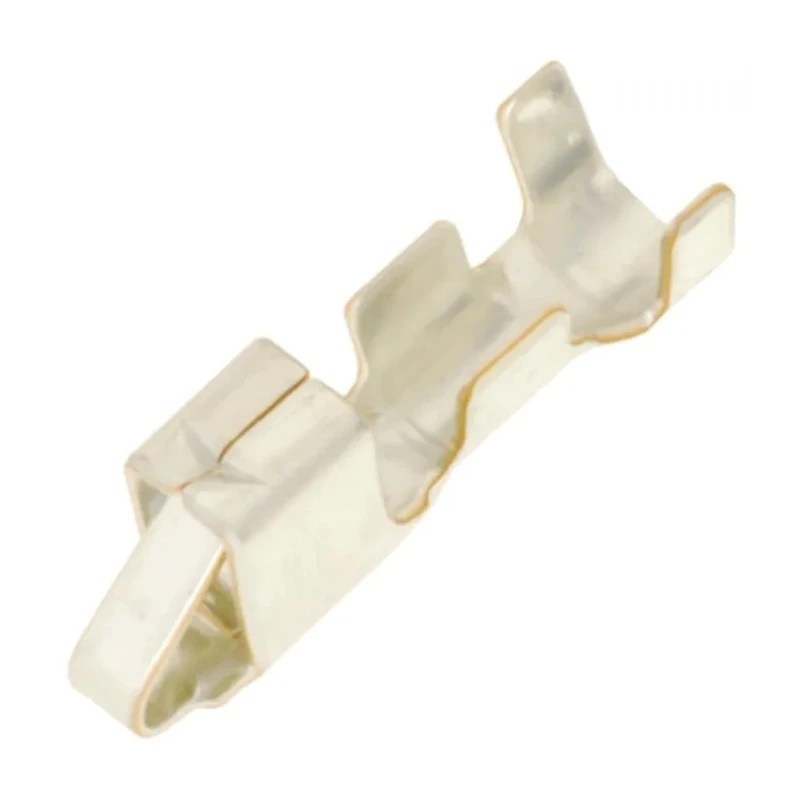

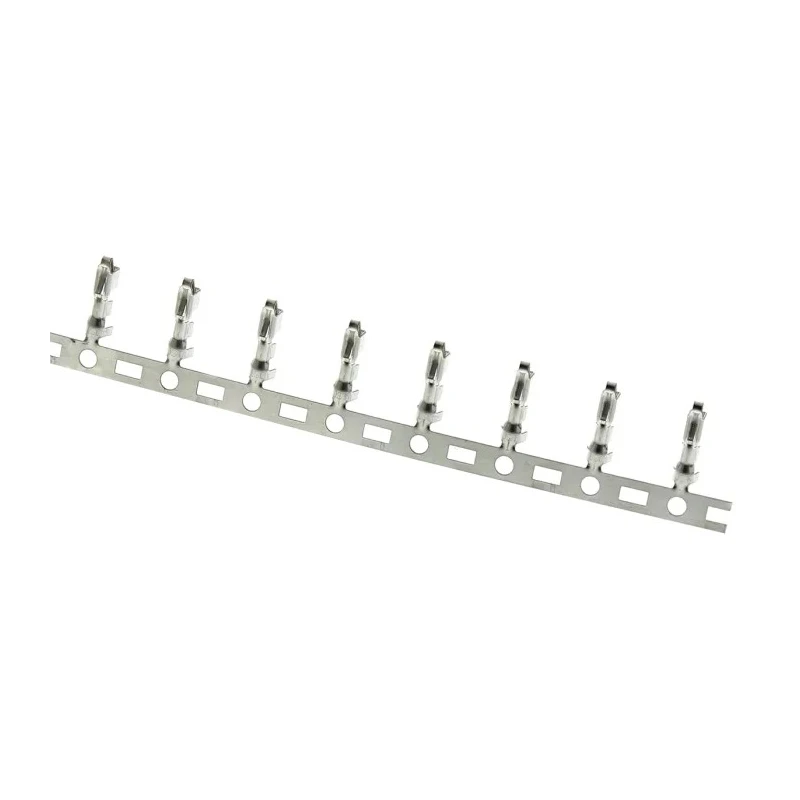

JST NH, SM Series Female Crimp Terminal Crimp Contact 3A Tin Plated Phosphor Bronze 28 AWG Min, 22 AWG Max SHF-001T-0.8BS

Free Delivery in India | Lowest Global Shipping Charges

JST NH, SM Series Female Crimp Terminal Crimp Contact 3A Tin Plated Phosphor Bronze 28 AWG Min, 22 AWG Max SHF-001T-0.8BS



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	SHF-001T-0.8BS
Gender	Female
Contact Material	Phosphor Bronze
Series	NH, SM
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	NH and SM Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating.
Rated for a current capacity of 3 amperes for small current applications.
Crimp termination ensures secure wire connection without soldering.
Operates reliably in temperature ranges from -25°C to 85°C.
Low maximum contact resistance of 20 milliohms enhances electrical performance.
Highly suitable for compact and high-density wire-to-board connection needs.
Compatible with JST NH and SM series connectors for consistent integration.
Manufactured with high contact pressure to ensure secure and stable connections.

Product Description

JST SHF-001T-0.8BS Female Crimp Terminal is a high-quality crimp contact designed specifically for use with NH and SM series connector housings. It supports wire sizes ranging from 28 AWG minimum to 22 AWG maximum, making it ideal for low current, high-density electrical applications.

Made from durable phosphor bronze and finished with tin plating, this crimp terminal offers excellent corrosion resistance and reliable conductivity. It is rated to carry currents up to 3 amperes, providing robust performance in electronic and power connector applications.

The crimp termination design enables easy and secure wire connections without the need for soldering, enhancing production efficiency and connection reliability. The terminal maintains a low maximum contact resistance of 20 milliohms, ensuring minimal signal loss.

Operating reliably within a temperature range of -25°C to 85°C, the JST SHF-001T-0.8BS terminal is suitable for various industrial, electronic manufacturing, and assembly environments. Its design delivers high contact pressure to assure stable and consistent connections suitable for both wire-to-board assemblies and wire-to-wire applications.

These terminals are commonly used in laboratory instruments, HVAC systems, manufacturing equipment, and commercial electronics where dependable and compact connections are essential.

Constructed from phosphor bronze with tin plating. Compatible with NH and SM connector housings. Crimp termination for efficient wire connection. Supports wire sizes 28 AWG minimum and 22 AWG maximum. Rated current 3A with low contact resistance.

Operating temperature from -25°C to 85°C. High contact pressure ensures dependable connection. Designed for electronic, industrial, and commercial use. Explore this product in the Crimp Terminal category at EnvMart for reliable electrical component sourcing.
