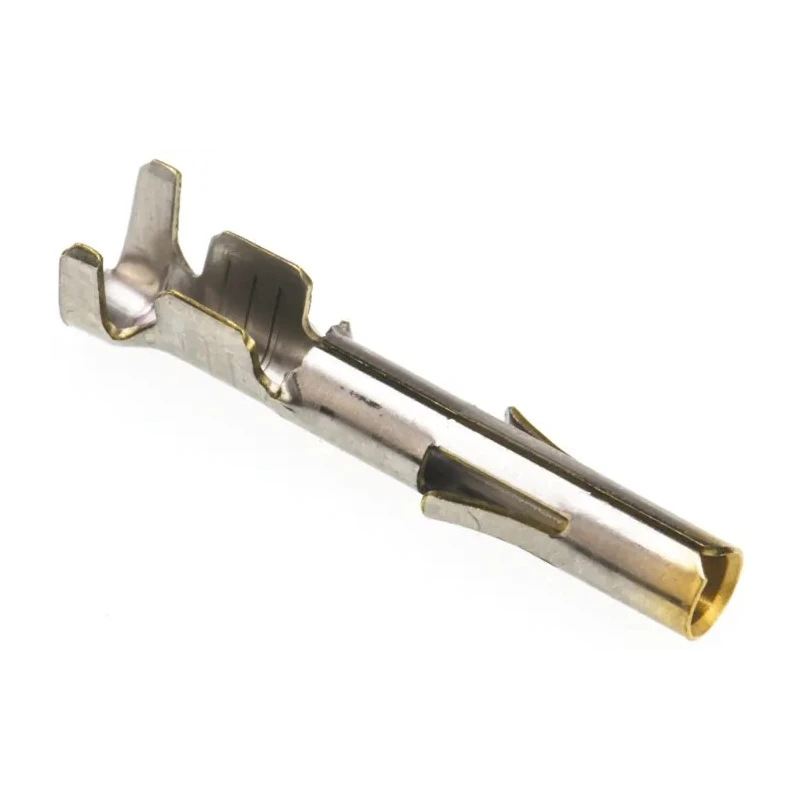

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal 19A Current 20-14 AWG Wire Size 22.23mm Length 350550-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Temperature range | -55 to +105 °C |
| Length | 22.23mm |
| Model | 350550-7 |
| Gender | Female |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 1000 MΩ |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 3.5mΩ |
| Mating Cycles | 50 |
| PCB Headers | 12 |
| Insulation Material UL94V-2 | Natural polyamide |
| Insulation Material UL94V-0 | White opaque Nylon 6.6 |
Key Features
- This crimp terminal features a length of 22.23mm ensuring secure wire connections.
- Contact plating is gold over brass for enhanced conductivity and corrosion resistance.
- Maximum contact resistance is 3.5 milliohms for efficient electrical performance.
- Operating temperature range spans from -55°C to 105°C ensuring reliability in varied environments.
- Termination is by crimping compatible with Universal MATE-N-LOK connector housings.
- Insulation materials include natural polyamide (UL94V-2) and white opaque Nylon 6.6 (UL94V-0) for durability.
- Designed for up to 50 mating cycles with a voltage rating of 600 Vac/dc.
- Ideal for use in consumer electronics, commercial HVAC, power supplies, portable devices, and lighting applications.
Product Description
TE Connectivity 350550-7 Universal MATE-N-LOK Series Female Crimp Terminal is designed to provide reliable electrical connections for various industrial and commercial applications. This female contact is suitable for wire sizes ranging from 20 AWG minimum to 14 AWG maximum, accommodating currents up to 19A with a length of 22.23mm, facilitating robust electrical performance.
The contact material is brass with a gold plating that enhances conductivity and offers excellent resistance to corrosion, maintaining low contact resistance of 3.5 mΩ. It operates efficiently within a temperature range of -55°C to 105°C, making it suitable for harsh environments encountered in industrial, HVAC, and consumer electronics sectors.
The terminal is intended for use with Universal MATE-N-LOK connector housings and features crimp termination for secure wire attachment. Insulation materials include natural polyamide rated UL94V-2 and white opaque Nylon 6.6 rated UL94V-0, providing mechanical strength and flame retardance. The product supports up to 50 mating cycles and has a voltage rating of 600 Vac/dc ensuring safety and durability.
This Crimp Terminal is essential in consumer electronics for stable connections and electrical safety. Ideal for commercial HVAC systems, power supplies, portable devices, and lighting applications where reliable connectors are critical.
The presence of blanking pins and design variants accommodates different packaging sizes to reduce insertion force and improve assembly. The insulation resistance measures 1000 MΩ, safeguarding against electrical leakage.
No specific certifications are listed, so usage should comply with applicable industry guidelines.
TE Connectivity Universal MATE-N-LOK connector range is widely used for creating versatile and dependable wire-to-board connections in demanding environments. This product is suitable for engineers and technicians working on electronic component assembly, industrial power connector systems, and electronic manufacturing processes.
