Molex 46012 Series Male Crimp Terminal, 20 AWG Min Crimp, 18 AWG Max 46012-1142

Free Delivery in India | Lowest Global Shipping Charges

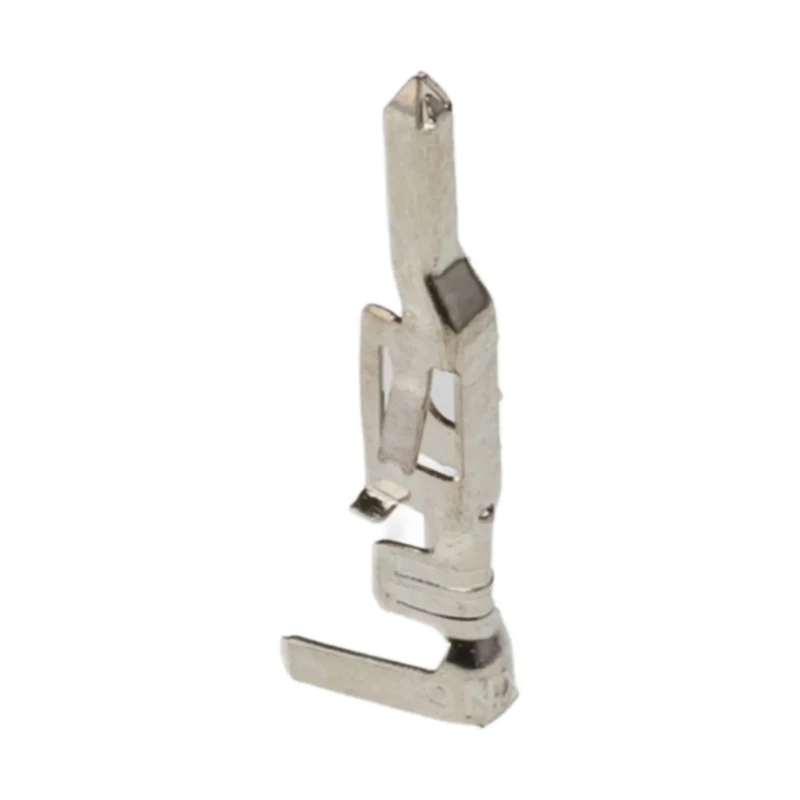

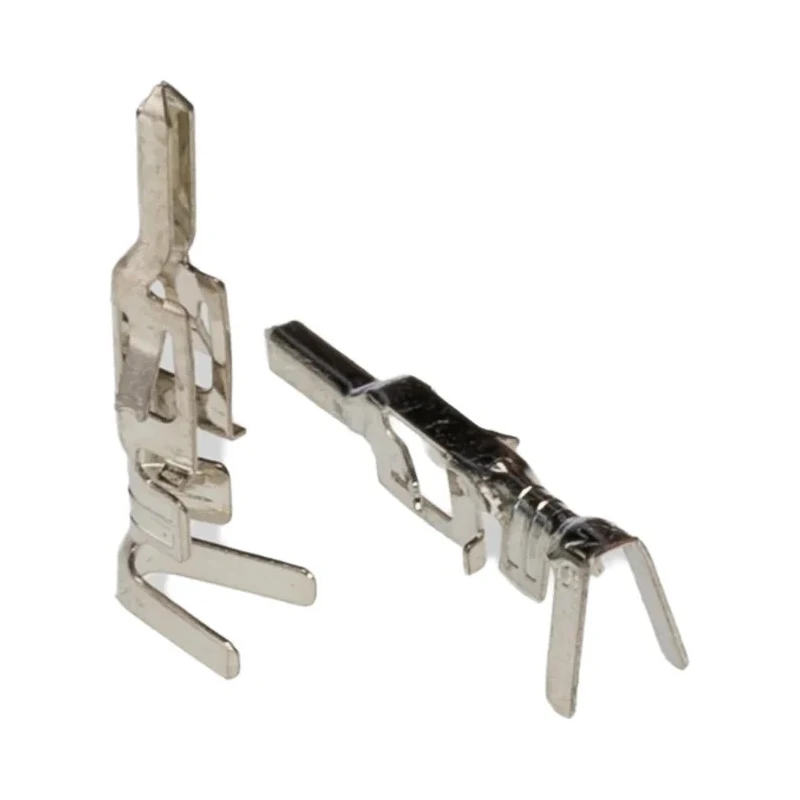

Molex 46012 Series Male Crimp Terminal, 20 AWG Min Crimp, 18 AWG Max 46012-1142

Name: Molex 46012 Series Male Crimp Terminal, 20 AWG Min Crimp, 18 AWG Max 46012-1142
Brand: Molex
SKU: 214176
Price: 0.23 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	13A
Gender	Male
Contact Material	Copper
Series	46012
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Supports wire sizes from 0.5mm² (20 AWG) to 0.8mm² (18 AWG).
Constructed from copper with tin plating for enhanced conductivity.
Rated for a maximum current of 13 amperes per contact.
Crimp termination type ensures secure and reliable wire connections.
Operates safely between -40°C and 105°C ambient temperatures.
Maximum contact resistance of 10 milliohms for efficient electrical performance.
Durable construction suitable for various electrical and electronic assembly applications.

Product Description

The Molex 46012-1142 is a male crimp terminal designed for Mini-Fit Plus Series connector housings, specifically Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI types. It supports wire sizes ranging from 0.5mm² (20 AWG) minimum to 0.8mm² (18 AWG) maximum, making it highly adaptable for different electrical wiring requirements.

Manufactured from copper with a tin-plated surface, this terminal provides reliable electrical connections with excellent conductivity and corrosion resistance. The crimp termination type ensures a secure mechanical and electrical connection to wires, optimizing performance in electrical assemblies.

It is rated to carry a maximum current of 13 amperes per contact, suitable for a wide range of power and signal transmission applications. The contact resistance is very low, with a maximum of 10 milliohms, promoting efficient current flow.

The terminal operates reliably within an ambient temperature range from -40°C up to 105°C, making it appropriate for diverse industrial, commercial, and electronic environments. Its design accommodates the requirements of various Mini-Fit connector housings, enhancing versatility.

Commonly utilized in electrical assemblies for building robust and durable connections, this crimp terminal is essential for manufacturing electronic devices, power connectors, and related applications.

Designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Suitable for wire sizes ranging from 0.5mm² to 0.8mm² (20 AWG to 18 AWG). Copper contact material with tin plating for enhanced electrical conductivity.

Maximum current rating of 13A per contact. Crimp termination ensures secure wire connections. Operating temperature range: -40°C to 105°C. Maximum contact resistance of 10 milliohms. Supports industrial and electronic assembly applications.

This Molex Crimp Terminal is designed and manufactured in the United States, assuring quality and compliance with industry standards. It is ideal for use in industrial electronics, power connectors, and precision electronic assemblies.
