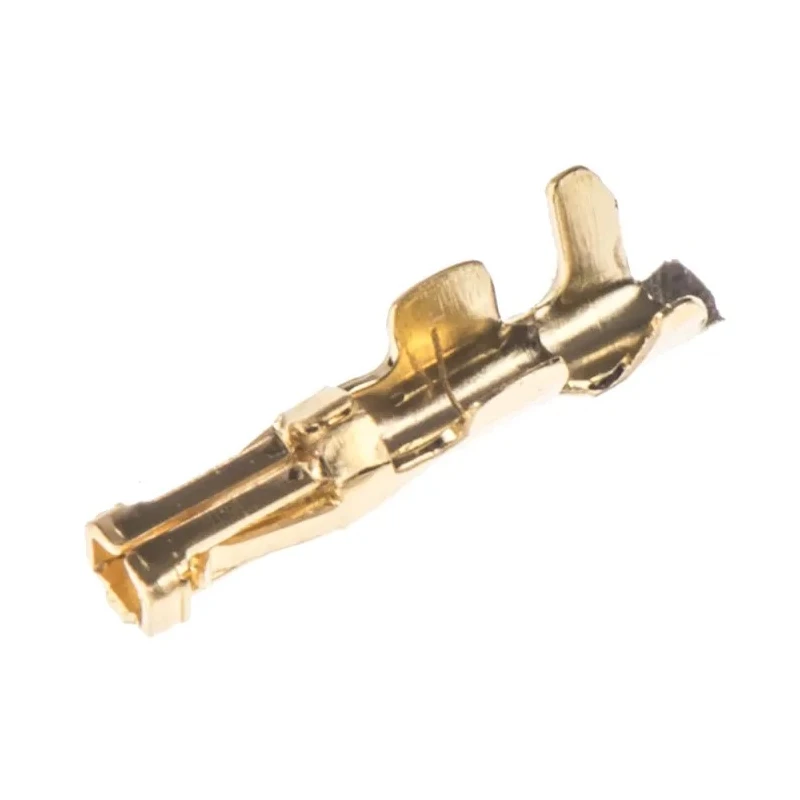

JAE FI Series Female Crimp Terminal, 1A Current, Gold Plated Phosphor Bronze Contact, 32 AWG Min Crimp, 28 FI-C3-A1-15000

Free Delivery in India | Lowest Global Shipping Charges

JAE FI Series Female Crimp Terminal, 1A Current, Gold Plated Phosphor Bronze Contact, 32 AWG Min Crimp, 28 FI-C3-A1-15000



Category Crimp Terminal Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Current	1A
Model	FI-C3-A1-15000
Gender	Female
Contact Material	Phosphor Bronze
Series	FI
Termination Type	Crimp
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
For Use With	FI-S Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	0.08mm²
Minimum Wire Size AWG	32AWG
Maximum Wire Size AWG	28AWG
Maximum Contact Resistance	40mΩ

Key Features

Designed for use with FI-S connector housing.
Contact material is phosphor bronze with gold plating for reliability.
Supports current up to 1 ampere.
Operating temperature range from -40°C to 80°C.
Maximum contact resistance of 40 milliohms ensures efficient connectivity.
Termination is via crimp method ensuring secure wire connection.
Compatible with 1.25 mm LVDS range in board-to-board applications.
Suitable for compact consumer electronics such as notebooks, VCRs, and mobile phones.

Product Description

JAE FI-C3-A1-15000 is a female crimp terminal from the FI Series, engineered for reliable connections in electronics and power applications. Featuring gold plated phosphor bronze contacts, this terminal supports wire gauges from 32 AWG minimum to 28 AWG maximum with a current rating of 1 ampere. The crimp termination ensures a secure and durable wire connection suitable for a variety of board-to-board connector housings such as the FI-S connector.

The terminal operates safely across a temperature range of -40°C to 80°C, making it versatile for diverse operating environments. With a maximum contact resistance of 40 milliohms, this component guarantees efficient signaling and power transmission with minimal losses.

Ideal for compact electronics applications, including notebook PCs, VCRs, and mobile phones, the FI Series is designed to meet the demands of space-constrained device assemblies. Its 1.25 mm LVDS range compliance makes it an optimized solution for low voltage differential signaling connections.

Manufactured to the high standards of JAE, this crimp terminal ensures durability and consistent performance in industrial and commercial electronics manufacturing processes. Designed for use with FI-S connector housing.

Contact material is phosphor bronze with gold plating for enhanced conductivity and corrosion resistance. Supports current up to 1 ampere, ideal for low power applications. Operating temperature range from -40°C to 80°C offers reliability in varying conditions.

Maximum contact resistance of 40 milliohms permits minimal signal loss. Crimp termination type ensures strong mechanical and electrical connection. Suitable for board-to-board applications requiring compact connectors. Widely used in consumer electronics and portable device manufacturing.
