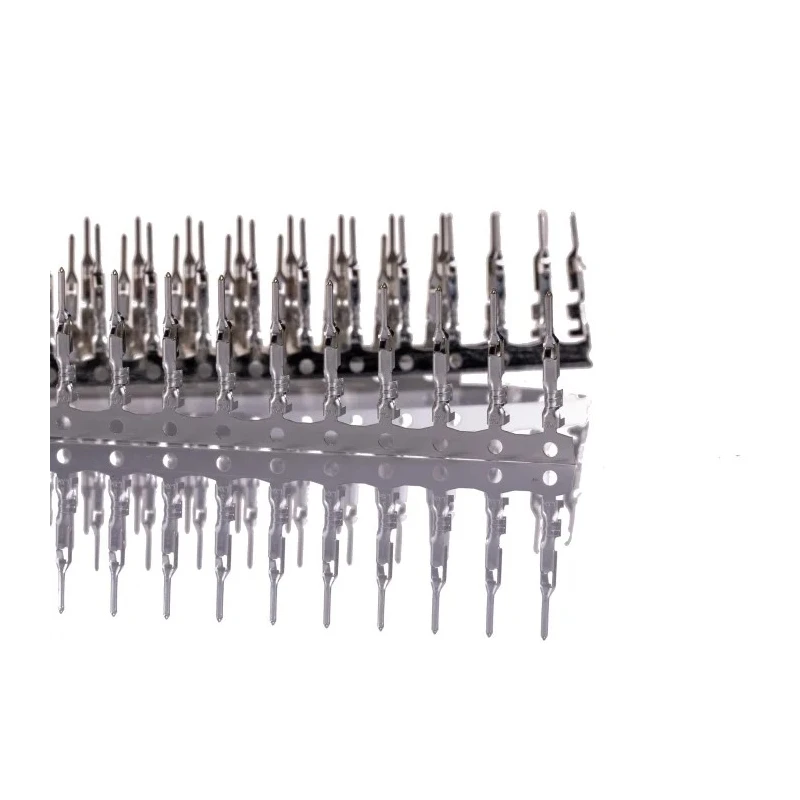

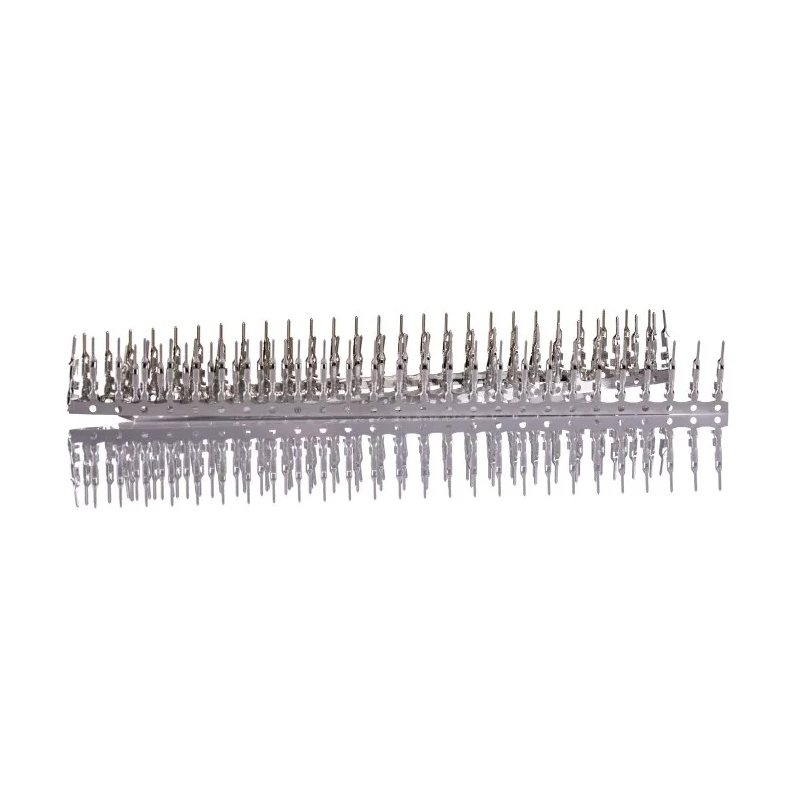

Molex Male Crimp Terminal 5241 Series 3A Current 28 AWG Min, 22 AWG Max Wire Size 08-70-0102

Free Delivery in India | Lowest Global Shipping Charges

Molex Male Crimp Terminal 5241 Series 3A Current 28 AWG Min, 22 AWG Max Wire Size 08-70-0102

Name: Molex Male Crimp Terminal 5241 Series 3A Current 28 AWG Min, 22 AWG Max Wire Size 08-70-0102
Brand: Molex
SKU: 211994
Price: 0.07 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	Japan
Brand	Molex
Current	3A
Gender	Male
Contact Material	Brass
Series	5241
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SPOX Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Designed for use with SPOX connector housings.
Constructed of brass with tin plating for reliable electrical contact.
Spring box style design ensures multiple points of contact and protects mating interface.
Termination type is crimp for secure wire attachment.
Operating temperature range from -40°C to 105°C.
Maximum contact resistance of 20 milliohms.
Manufactured in Japan ensuring high quality and reliability.

Product Description

The Molex 08-70-0102 male crimp terminal from the 5241 Series is engineered for high electrical reliability in industrial and electronic applications. Rated for a current of up to 3A, it supports wire sizes ranging from 28 AWG (0.08mm²) minimum to 22 AWG (0.35mm²) maximum, making it suitable for precise PCB connectors requiring robust connections.

Crafted from brass with tin plating, this terminal offers excellent conductivity and corrosion resistance. Its signature spring box design provides multiple points of contact, safeguarding the mating interface from damage and preventing wire fish-hooking during handling. The crimp termination ensures a secure and durable attachment to the wire.

This terminal functions optimally within a temperature range of -40°C to 105°C, making it reliable for diverse environmental conditions encountered in communication and networking equipment. It is specifically designed to be used with SPOX connector housings, providing a seamless interface for electronic components.

Compatible with SPOX connector housing. Brass construction and tin-plated contacts support reliable conductivity. Spring box style improves contact area and durability. Crimp termination type for secure wire connection. Wide operating temperature range ensures versatility.

Rated current of 3A supports moderate electrical loads. Manufactured in Japan, assuring quality standards.

This crimp terminal is ideal for industrial, electronic, communication, and networking applications requiring dependable PCB connection solutions. It is a precise component within the Molex SPOX range known for performance and durability.
