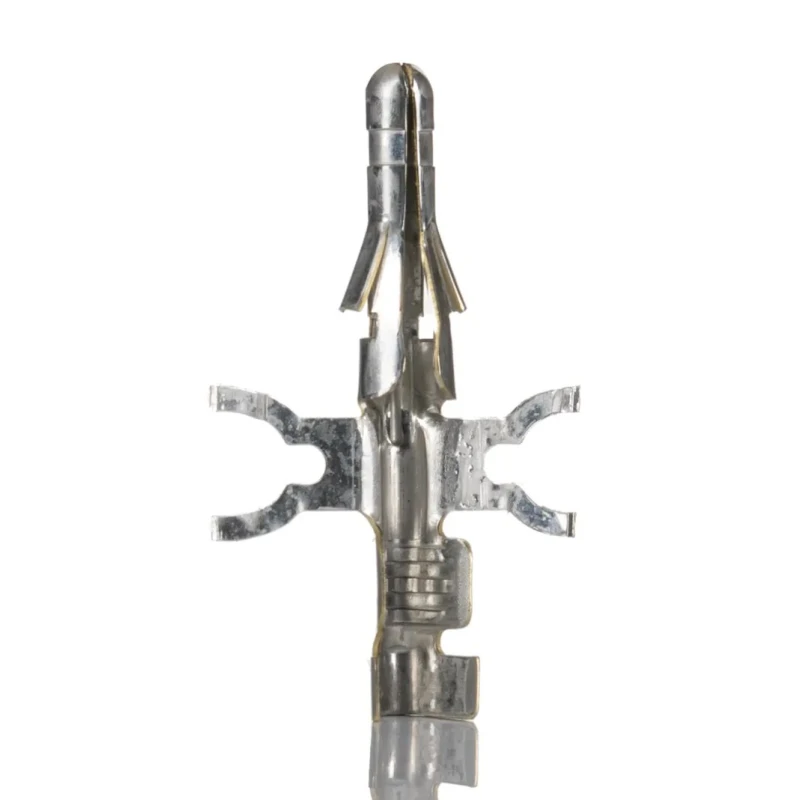

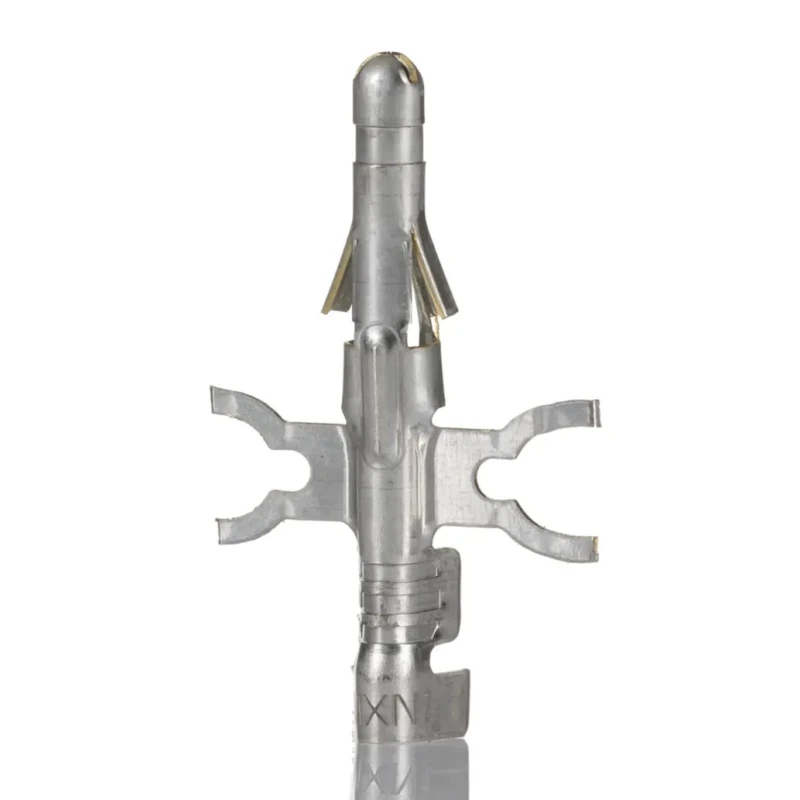

Molex 1380 Series Male Crimp Terminal, Brass Body, 22 AWG Min to 18 AWG Max Wire Size, Tin Plating, Crimp 02-09-2116

Free Delivery in India | Lowest Global Shipping Charges

Molex 1380 Series Male Crimp Terminal, Brass Body, 22 AWG Min to 18 AWG Max Wire Size, Tin Plating, Crimp 02-09-2116

Name: Molex 1380 Series Male Crimp Terminal, Brass Body, 22 AWG Min to 18 AWG Max Wire Size, Tin Plating, Crimp 02-09-2116
Brand: Molex
SKU: 206528
Price: 0.08 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Gender	Male
Contact Material	Brass
Series	1380
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	STANDARD .093 in Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.35mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Compatible with wire sizes ranging from 22 AWG (0.35mm²) to 18 AWG (0.8mm²).
Utilizes crimp termination for secure and reliable electrical connection.
Constructed with brass contact material featuring tin plating for corrosion resistance.
Operates within temperature range of -40°C to 105°C.
Supports up to 25 mating cycles ensuring long-term performance.
Ideal for applications in medical equipment, gaming consoles, and industrial computers.
Each pack contains 100 terminals supplied on a reel for efficient usage.

Product Description

Molex 02-09-2116 Male Crimp Terminal is a high-quality crimp contact designed for use with standard .093 inch connector housings. Featuring a robust brass body with tin plating, this terminal ensures reliable electrical connection with excellent corrosion resistance and impact durability.

Specifically engineered for wire sizes from 22 AWG to 18 AWG (0.35mm² to 0.8mm²), it facilitates secure crimp termination suitable for signal and power transmission in various demanding environments.

The terminal accommodates up to 25 mating cycles, making it suitable for industrial, medical, and consumer electronics applications. The operating temperature range from -40°C to 105°C supports stable performance in harsh conditions.

These terminals are supplied in reels containing 100 pieces, allowing easy handling and installation using standard crimping tools. They are ideal for use in medical equipment, gaming consoles, industrial computers, and other electronics requiring robust wire-to-board connectivity.

Compatible with 22 to 18 AWG wire sizes. Brass contact body with tin plating for corrosion resistance. Crimp termination type for secure electrical connections. Operational temperature range from -40°C to 105°C. Supports a maximum of 25 mating cycles for durability.

Supplied in 100-piece reels for efficient application.

This Molex 1380 Series terminal is widely used in consumer electronics, communications, networking, and portable devices. It delivers consistent, high-quality performance expected in industrial and specialized applications.
