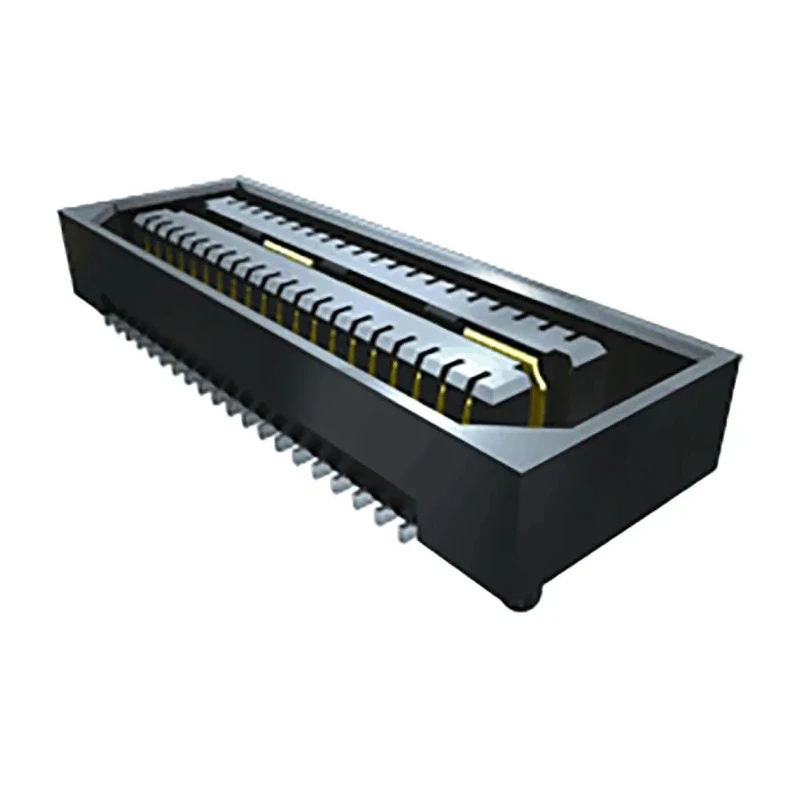

Samtec Right Angle Surface PCB Socket 40-Contact 1 Row 0.8mm Pitch Solder Liquid Crystal Polymer Housing QSE-040-01-F-D-A-K

Samtec QSE-040-01-F-D-A-K is a right angle surface PCB socket engineered to provide high performance in demanding electronic applications. Featuring 40 contacts arranged in a single row with a fine 0.8 mm pitch, this solder termination socket uses liquid crystal polymer housing to maintain durability and electrical insulation. The bronze contacts plated with gold ensure low resistance and reliable connectivity for board-to-board interface.

Designed for high current capacity of 23 amperes and voltage up to 225 volts, it is ideal for demanding industrial, telecommunications, and computing environments. Its surface mount design with a right angle orientation facilitates compact PCB layouts and efficient use of board space.

The socket's stacking height of 5 mm and row pitch of 5.73 mm support compact and dense connector arrangements. It operates reliably over a wide temperature range from -55°C to 125°C, suitable for harsh environments. The integral metal plane enhances power or ground connectivity while preserving signal integrity.

The QSE series is optimized for high-speed data transmission exceeding 28 Gbps, achieved with a blade and beam contact system that supports robust mating cycles and precise alignment. This Extended Life Product™ (E.L.P.™) solution ensures long-term durability for critical applications.

Manufactured in the United States, this PCB socket complies with industry quality standards and is the choice for advanced electronic assemblies requiring high density and excellent electrical performance.

This PCB socket supports high current up to 23 amperes and voltage rating of 225 volts. It has a surface mount type with right angle orientation for board-to-board connection. Constructed with bronze contacts plated in gold for reliable electrical performance.

Stacking height is 5 mm with a row pitch of 5.73 mm, suitable for tight spacing. Operates efficiently in temperatures ranging from -55°C to 125°C. Designed for high speed signals up to 28+ Gbps, ensuring signal integrity.

Employs a blade and beam contact system for easy mating and alignment. Made in the United States, ensuring quality manufacturing standards. For additional electronic component solutions, explore the full range of PCB Sockets and connectors available through EnvMart’s extensive catalog.
