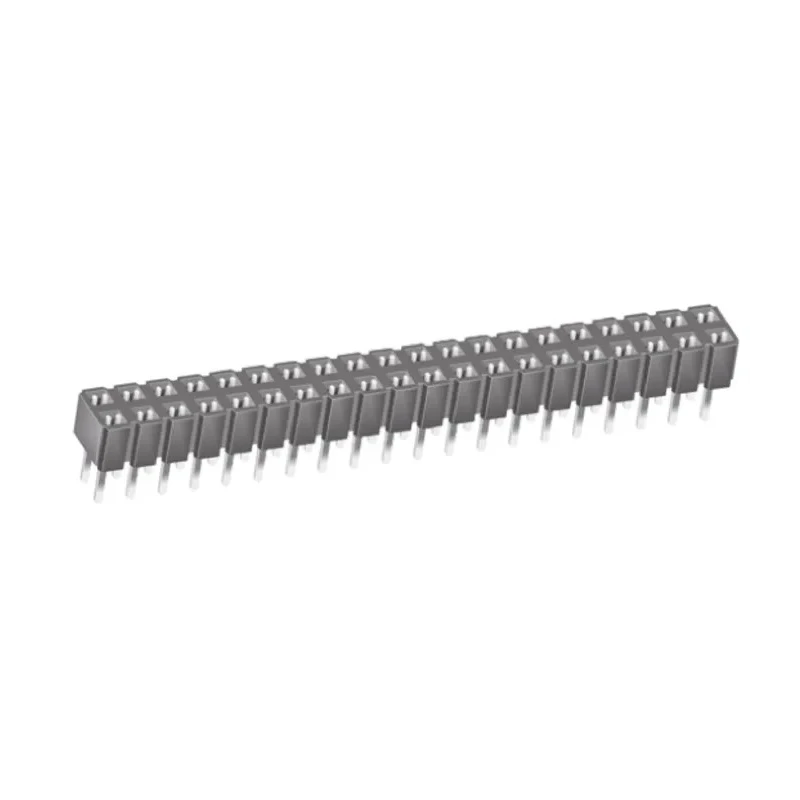

Samtec CES Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 12A Current, 333V CES-120-01-T-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec CES Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 12A Current, 333V CES-120-01-T-D

Name: Samtec CES Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 12A Current, 333V CES-120-01-T-D
Brand: Samtec
SKU: 366389
Price: 4.99 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	333V
Brand	Samtec
Orientation	Straight
Current	12A
Model	CES-120-01-T-D
Mount Type	Through Hole
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	CES
Termination Type	Through Hole
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	40
Connector System	Board-to-Board
TLW series low profile square post headers	see stock number 765-6168 typically
TSM series square post headers	see stock number 765-6613 typically
TSW series square post headers	see stock number 767-1044 typically

Key Features

Features a black glass filled polyester housing for durability.
Suitable for current rating up to 12A and voltage rating of 333V.
Operating temperature range from -55°C to 105°C.
Contact material is bronze with matte tin plating ensuring good conductivity.
Designed for through hole mounting with 3.25 mm solder tails.
Compatible with Samtec TLW, TSM, and TSW series square post headers.
Low profile design suitable for compact PCB assemblies.
Compliant with RoHS standards for environmental safety.

Product Description

Samtec CES-120-01-T-D is a high-quality PCB socket from the CES series designed for board-to-board electronic connections. It features 40 contacts arranged in 2 rows with a standard 2.54 mm pitch allowing for versatile circuit design and interconnectivity. This straight through hole socket includes a black glass filled polyester housing that provides excellent mechanical stability and electrical insulation.

With a current rating of 12 amperes and voltage rating of 333 volts, it supports robust electrical performance for demanding applications. The contacts are made of bronze and finished with matte tin plating to ensure excellent conductivity and resistance to corrosion. Operating temperature ranges from -55°C to 105°C, making it suitable for industrial, commercial, and electronic equipment operating under varied environmental conditions.

The socket is mounted using through hole technology and features a 3.25 mm long solder tail for secure PCB attachment. Its low profile closed entry design aids in achieving compact PCB layouts without sacrificing reliability. This PCB socket is RoHS-compliant, ensuring it meets environmental directives on hazardous substances.

Compatibility with Samtec TLW, TSM, and TSW series square post headers allows design flexibility within the same connector family. Ideal for use in industrial automation, telecommunications, instrumentation, and power electronics applications requiring dependable board-to-board connections.

Durable black glass filled polyester housing. High conductivity bronze contacts with tin plating. 12A current and 333V voltage rating. Wide operating temperature from -55°C to 105°C. Through hole mount with 3.25 mm solder tail.

Low profile 2.54 mm pitch, 40-contact configuration. Compatible with TLW, TSM, TSW headers. RoHS-compliant material and design. Explore more PCB Sockets and connectors at EnvMart for reliable and high-performance electronic components that meet industrial and commercial standards.
