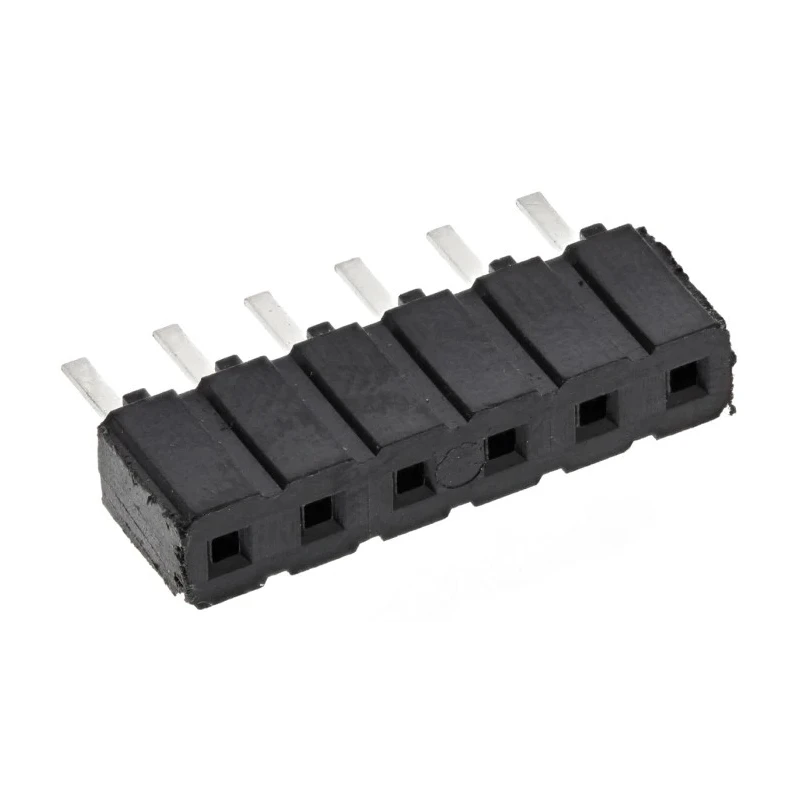

Samtec CES Series PCB Socket 6-Contact 1 Row 2.54 mm Pitch Through Hole Mount 12A Current Rating CES-106-01-T-S

Samtec CES-106-01-T-S PCB Socket is a high-quality 6-contact, single-row PCB connector from the CES Series designed for through hole mounting. Featuring a 2.54 mm pitch and straight orientation, this socket ensures reliable and secure board-to-board connections in various electronic assemblies.

The contact material is bronze with matt tin plating, providing excellent conductivity and corrosion resistance, essential for maintaining signal integrity and long-term durability in demanding applications. The housing is constructed of black glass filled polyester, offering strong mechanical protection and electrical insulation.

This PCB socket supports a continuous current rating of 12 amperes and operates safely at voltages up to 400V AC. It performs reliably across a wide temperature range from -55°C to 105°C, making it suitable for challenging environmental conditions often encountered in industrial, manufacturing, and commercial electronics settings.

The CES-106-01-T-S complies with RoHS directives, ensuring it meets environmental and safety regulations. Its design facilitates easy integration in automated assembly processes and is well-suited for board-to-board interconnection purposes in devices requiring robust electrical performance and mechanical stability.

2.54 mm pitch ensures compatibility with standard PCB layouts. Bronze contacts with matt tin plating offer longevity and reliable conductivity. 12A current rating accommodates high current demands. Black glass filled polyester housing provides mechanical strength and insulation.

Operating temperature range from -55°C to 105°C suits varied environments. Through hole mounting with straight orientation simplifies PCB assembly. 400V AC voltage rating ensures safe electrical operation. RoHS compliant for environmental and safety assurance.

Ideal for electronics manufacturing and industrial applications.

This PCB socket is a dependable component for engineers and manufacturers focusing on quality and performance in electronic design and assembly. Discover more solutions in the PCB Sockets category at EnvMart for your electrical and electronic connector needs.
