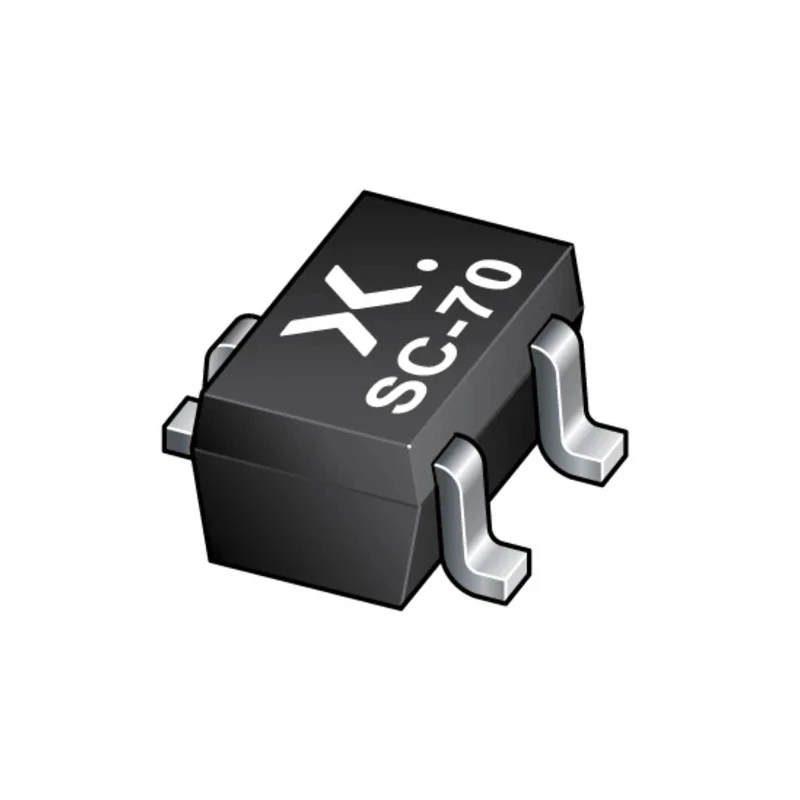

Nexperia Schottky Diode 30 V 200 mA Surface Mount 3-Pin SC-70 Package BAT54W,115

Nexperia BAT54W,115 Schottky Diode is a highly reliable semiconductor device designed for surface mounting with a compact 3-pin SC-70 package. It is rated for a maximum continuous forward current of 200 mA and withstands a peak reverse repetitive voltage of 30 V, making it ideal for protecting circuits against voltage spikes and handling rectification in power supplies.

This diode offers a low forward voltage drop of 800 mV, which allows for efficient conduction and reduced power losses. Its peak non-repetitive forward surge current stands at 600 A, supporting transient current demands typically found in switched-mode power supplies and digital circuits. The device functions reliably across a broad operating temperature range from -55°C to 150°C, suitable for harsh environment applications including automotive systems compliant with AEC-Q101 standards.

The fast peak reverse recovery time of 5 ns enables high-speed switching performance, essential in RF systems, digital electronics, and mobile communication devices where minimizing switching losses and signal distortion is critical. With a low peak reverse current of 2 μA, it ensures minimal leakage current and energy conservation.

The small footprint SC-70 package dimensions are 2.2 mm length, 1.35 mm width, and 1.1 mm height, facilitating compact board layouts in modern electronic products. Its common cathode diode configuration supports versatile circuit design including RF and switching power applications.

This Schottky diode is made in Malaysia and is widely used in industrial, communication, automotive, and general electronic applications requiring fast, reliable, and efficient diode rectification.

Low forward voltage drop of 800 mV reduces conduction losses. High surge current capacity for robust transient protection. Wide operating temperature range supports automotive and industrial use. Fast recovery time suited for high frequency and switching circuits.

Compact SC-70 surface mount package for space-saving design. Complies with AEC-Q101 automotive standard for reliability. Common cathode arrangement for ease of circuit integration. Low leakage current minimizes power dissipation.
