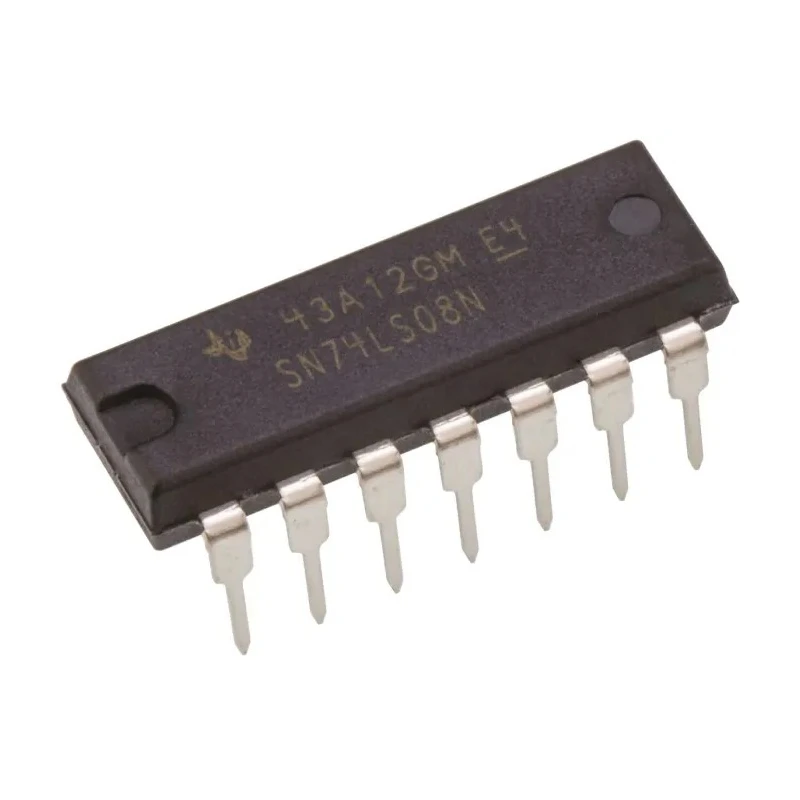

Texas Instruments 4 2-Input AND Logic Gate, 14-Pin PDIP SN74LS08N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS08N |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | AND |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 7.5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |
Key Features
- Features four independent 2-input AND gates.
- Operates within a supply voltage range of 4.75V to 5.25V.
- Maximum propagation delay time of 7.5ns at CL.
- Maximum operating temperature up to 70°C suitable for industrial environments.
- Low power Schottky TTL logic compatible with LS logic family.
- Provides a maximum high-level output current of -0.4mA and maximum low-level output current of 8mA.
- Package includes 14 pins with standard PDIP through-hole mounting.
- Logic function and performance optimized for digital circuit integration.
Product Description
The Texas Instruments SN74LS08N is a high-performance 4 2-input AND logic gate housed in a 14-pin PDIP package designed for through-hole PCB mounting. It belongs to the LS (Low-power Schottky) logic family, providing efficient power usage and fast switching speeds with a maximum propagation delay time of 7.5 nanoseconds at the specified load capacitance.
This device features four independent AND gates, each with two inputs, ideal for digital logic implementation in various electronic circuits. It operates within the supply voltage range of 4.75V to 5.25V, suitable for standard 5V logic systems.
The SN74LS08N supports a maximum high-level output current of -0.4mA and a maximum low-level output current of 8mA, ensuring proper driving capability for subsequent circuit stages. The device is designed to operate reliably across a temperature range from 0°C to 70°C, enabling use in industrial and laboratory environments.
Its 14-pin PDIP package facilitates easy mounting and wiring for prototyping and production applications. This Logic Gate IC is commonly used in digital electronics, data processing, control systems, and various automation applications to perform logical AND operations.
Features four independent 2-input AND gates. Operates within a supply voltage range of 4.75V to 5.25V. Maximum propagation delay time of 7.5ns at CL. Maximum operating temperature up to 70°C. Low power Schottky TTL logic compatible with the LS family.
Standard 14-pin PDIP package for through-hole mounting. Suitable for industrial, laboratory, and electronic applications. Reliable digital logic gating performance. Explore the Electronics & Electricals section at EnvMart for a comprehensive range of semiconductor logic ICs and other essential electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.75V to 5.25V, making it suitable for standard 5V logic systems.
The maximum propagation delay time for the SN74LS08N is 7.5 nanoseconds at the specified load capacitance.
It features four independent 2-input AND gates, allowing for multiple logical operations within a single package.
The SN74LS08N provides a maximum high-level output current of -0.4mA and a maximum low-level output current of 8mA.
This unit can operate reliably at temperatures up to 70°C, suitable for industrial environments.
The device is housed in a standard 14-pin PDIP package designed for through-hole mounting.
The minimum operating temperature for this model is 0°C, allowing it to function in various environments.
It belongs to the LS (Low-power Schottky) logic family, which is compatible with other LS logic devices.
The dimensions of this model are 4.57mm in height and 19.3mm in length.
This logic gate IC has a total of 14 pins, facilitating easy connections for circuit integration.
This unit performs the AND logic function, which is essential for digital logic operations.
Each gate in this model has two inputs, allowing for standard AND gate operations.
